Installing a Pickup Tip
To install a Pickup Tip you will need a .050 Allen Hex Key and the proper size tip for the
die you want to pick.

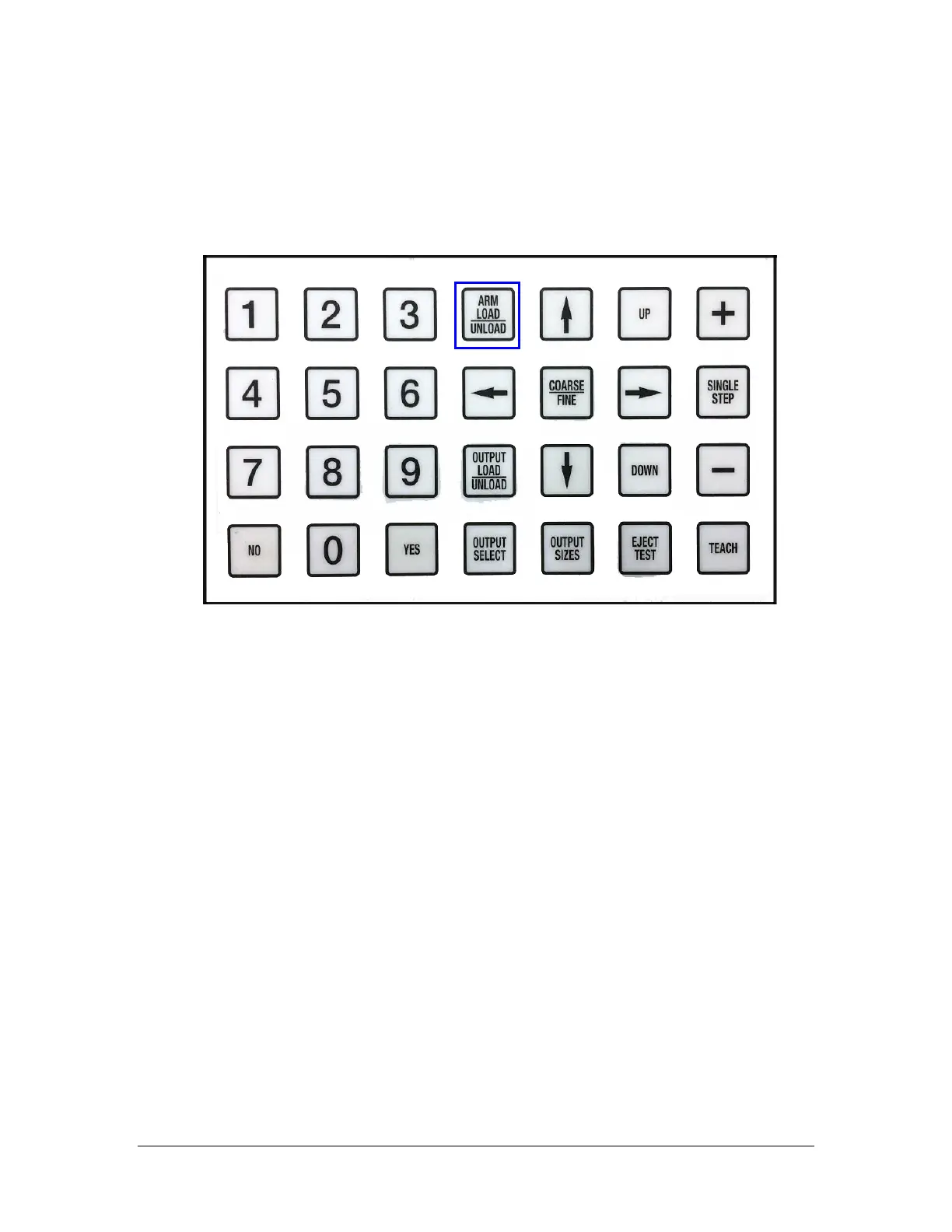

1. With the power ON, use the ARM LOAD/UNLOAD key to sequence the Z-Arm till
it is located between the Wafer Holder and the Output Plate.
2. Insert tip into hole in bottom of Pickup Head.
3. Carefully snug the setscrew to hold the tip in the head.
