18. DIE INVERTER PICKUP VAC OFF + DELAY
The Inverter Pickup Tip Vacuum will turn OFF. This is necessary to achieve
proper die transfer. There is a small delay that is not programmable.
19. GO UP TO TRAVERSE HEIGHT
The Pickup Arm Z will move up to the traverse height to clear obstructions when
moving.
Die Inverting Discussion

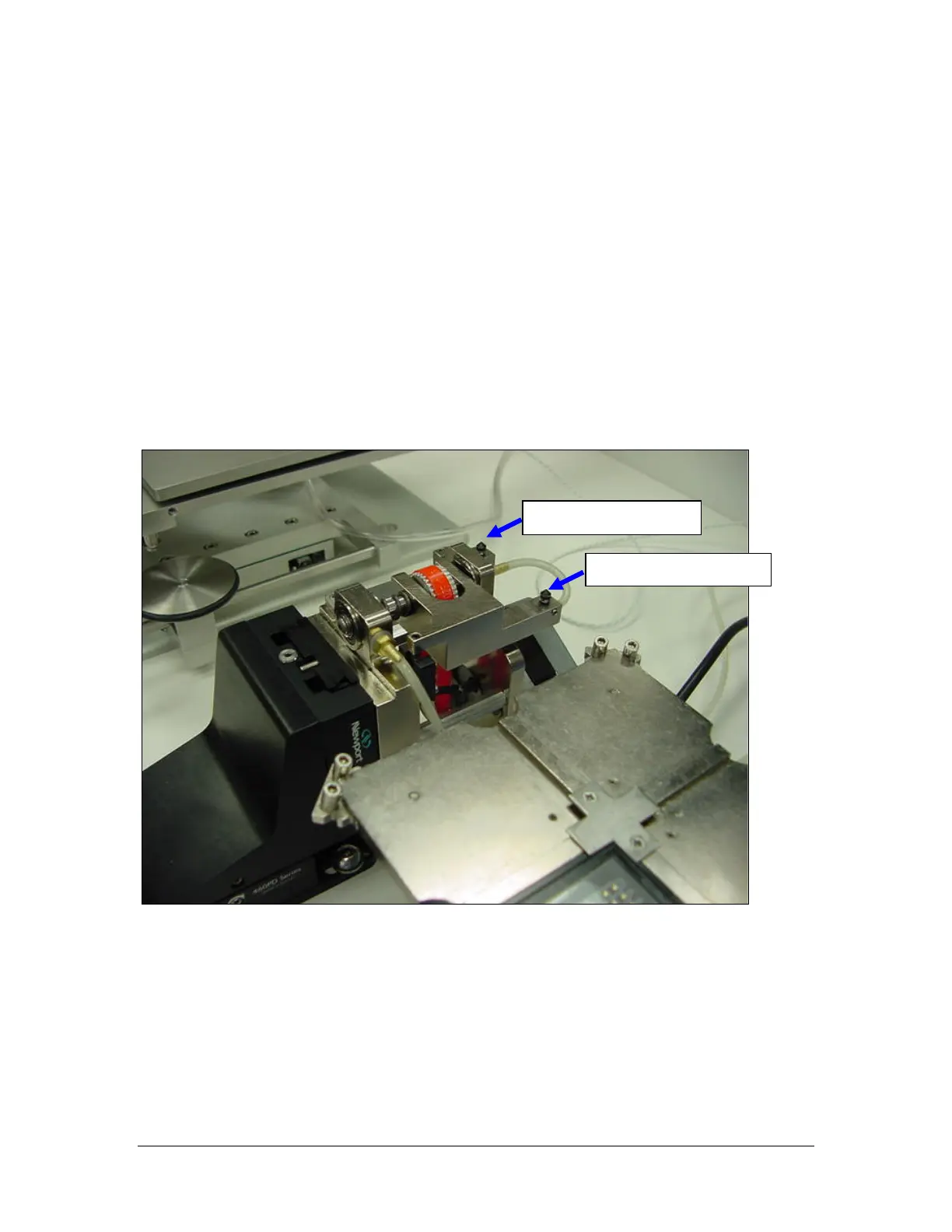

The Die Inverter uses two Pickup Tips to achieve the inverting process. The tips should
normally be the same type. Normally, a Pickup Shank and rubber tips are used. This will
help to prevent damage to the die during the inversion process.
The inverter tips should be adjusted so that they are at the same vertical height. The
inverter is designed to receive, invert and deliver a die to the Main Pickup Head in the
same horizontal plane.
When placing a small die (< 30 mils square) to the Inverter Flexure Tip the die should be
gently placed onto the tip and not pushed. When picking a die from the Inverter Pickup
tip the same gentle force should be observed.
