DE35-ST Operating Instructions
D292469I 87
Adjust Die Inverter Home Position
The Inverter Pick Tip is attached to the Inverting Arm. This arm will rotate 180 degrees
from the homed position. To ensure proper die transfer, it is necessary to ensure that
the tip position on the arm is level with the system. The arm homing position can be
adjusted by adjusting the position of the Homing Sensor Flag (a black anodized set screw
is used for this purpose).
NOTE: There is some trial and error required to adjust the position.
1. Select SINGLE STEP mode.
2. Using the Foot Switch, STEP the system until the LCD displays, DIE INVERTER TO
HOME POSITION. The next Foot Switch press will home the inverter.
3. Check the position of the Inverter Arm. If the arm is in the desired position you
are finished. If not proceed to step 4.
4. Press NO to escape from the current cycle. Leave the machine in SINGLE STEP
mode.
5. Adjust the Homing Sensor Flag Set Screw and repeat steps 2 and 3.

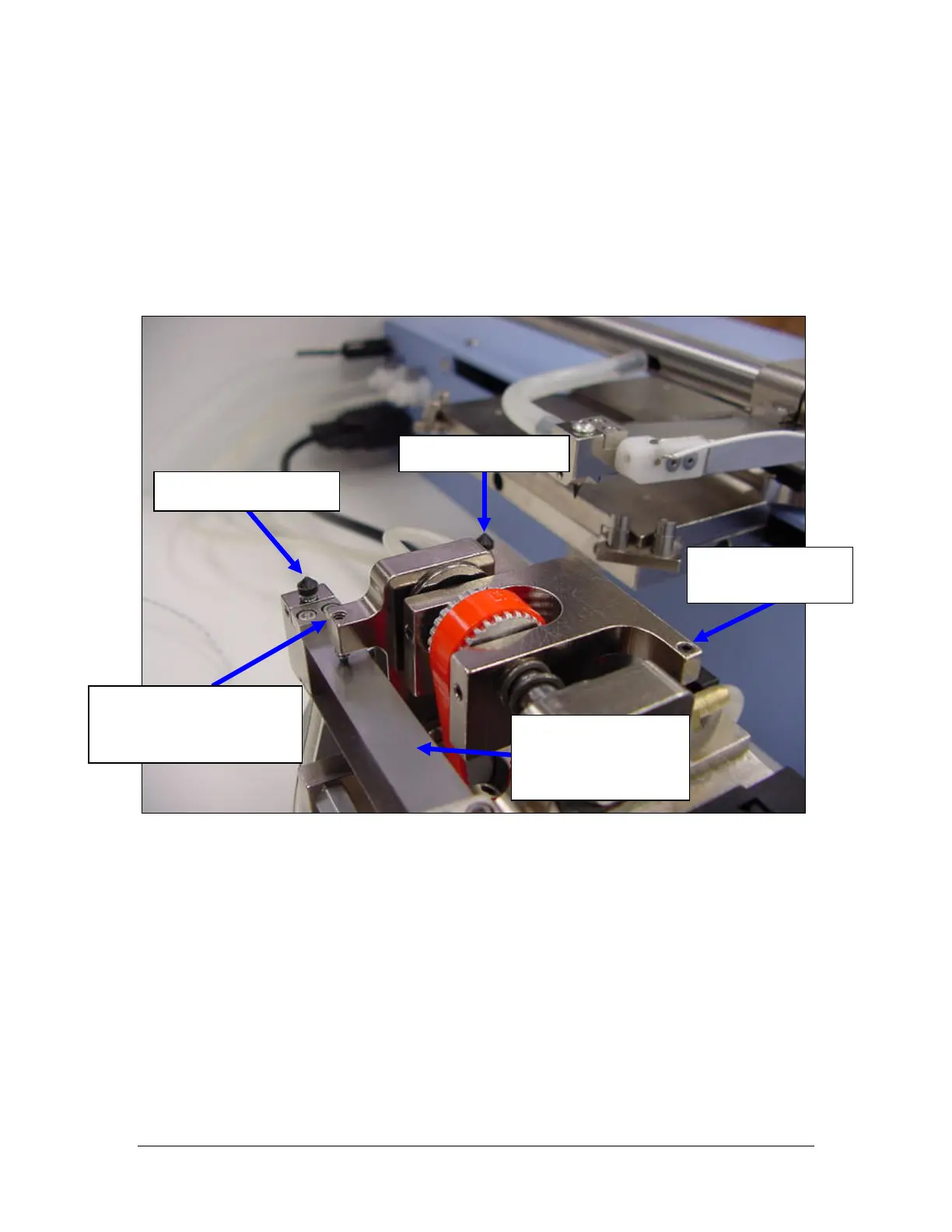

Inverter Flexure Tip
Inverter Pick tip
Homing Sensor
Flag Set Screw
Adjustment Set Screw
Use to Planarize the
Flexure Tip to the Pick Tip
Inverter Flexure
Allows tip movement
during die transfer
