66 D292469I

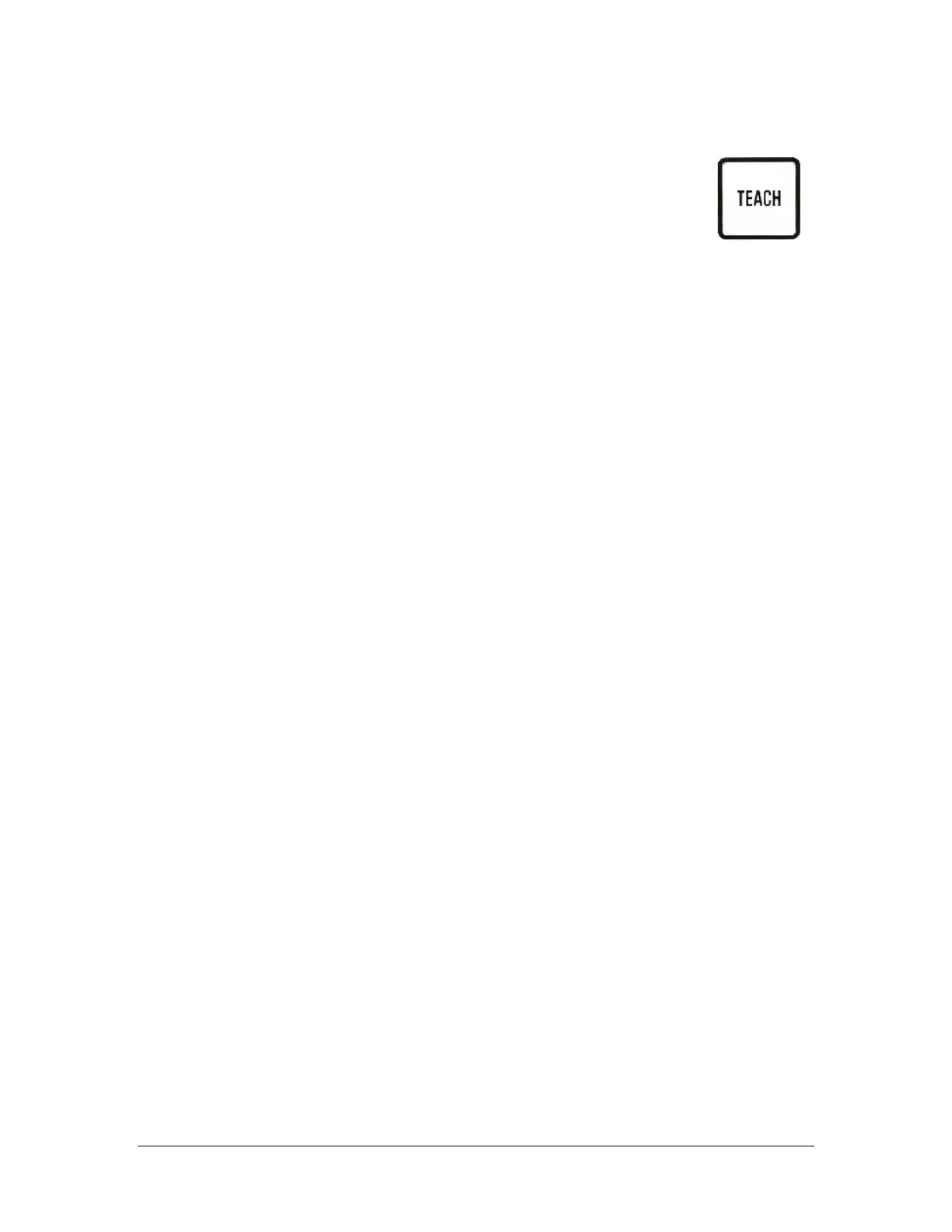

Teach Mode
When the system is in Teach Mode, TEACH RUN will appear on the LCD
and the system settings (positions, delay times etc.) are enabled to be
changed.
NOTE: When the SINGLE STEP key is pressed the system is
automatically put into the teach mode. While in the Single Step Mode pressing
the TEACH key will toggle the teach mode disabling the edit function.
Teach Mode is designed to allow the Operator to make adjustments to the machine
settings during operation. Any change made while in Teach Mode it will be a global
change.
When adjusting the Place Position in Teach Mode, move the whole box and do not
affect the Pitch values like when you are in Calibrate Trays.
