DE35-ST Operating Instructions
D292469I 97
Die Facet Inspection
The Facet Inspection Station uses a high magnification lens to view cuts, chips, cracks
and defects in the die. This station rotates the die and allows the operator to move the
Optics along the length of the die while under high magnification. All sides of optical
filters, or facets of laser diodes, and other devices can be observed. The die can be
inspected at 0, 90, 180, or 270 degrees of rotation. The die can also be inspected
anywhere from 0 to 360 degrees manually by turning the knob on the Remote Operator
Control (ROC).
Adjust Pickup Tip Height at Facet Inspection
1. Place the system in Single Step Mode by pressing the SINGLE STEP key.
2. Cycle the system until the pickup is holding a die at the Down position over the
Rotating Spindle of the Facet Inspection Camera.
3. Press the UP/DOWN keys to adjust the pickup height.
Adjust Die Position on Rotating Spindle at Facet
Inspection
To adjust the Die (Pickup Tip) on the X Axis (left or right) direction:
1. Place the system in Single Step Mode by pressing the SINGLE STEP key.
2. Cycle the system until the pickup is holding a die at the Down position over the
Rotating Spindle of the Facet Inspection Camera.

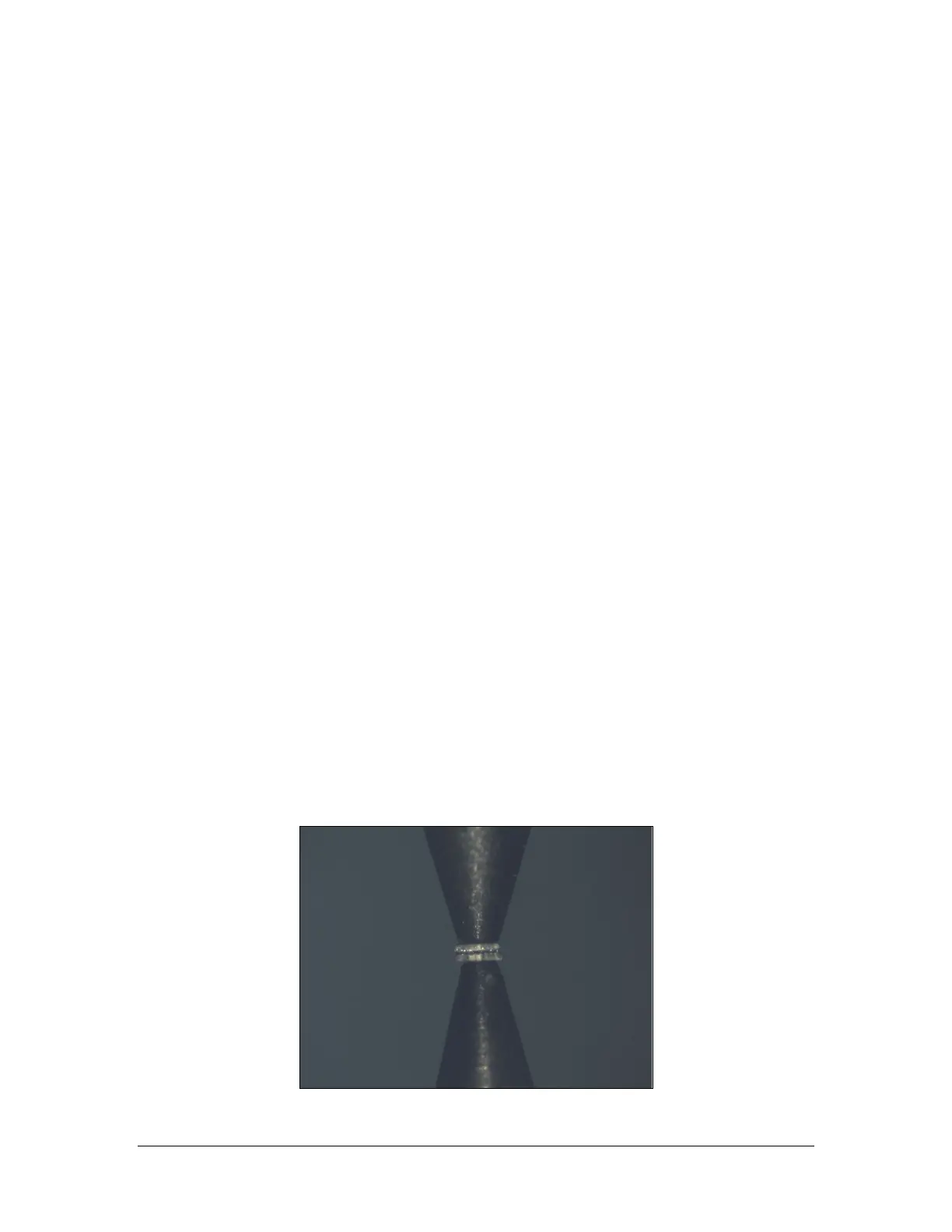

3. Press the Left/Right Arrow keys to adjust Pickup Tip position accordingly. The
image below illustrates the die in Facet Inspection position.
