DE35-ST Operating Instructions
D292469I 127

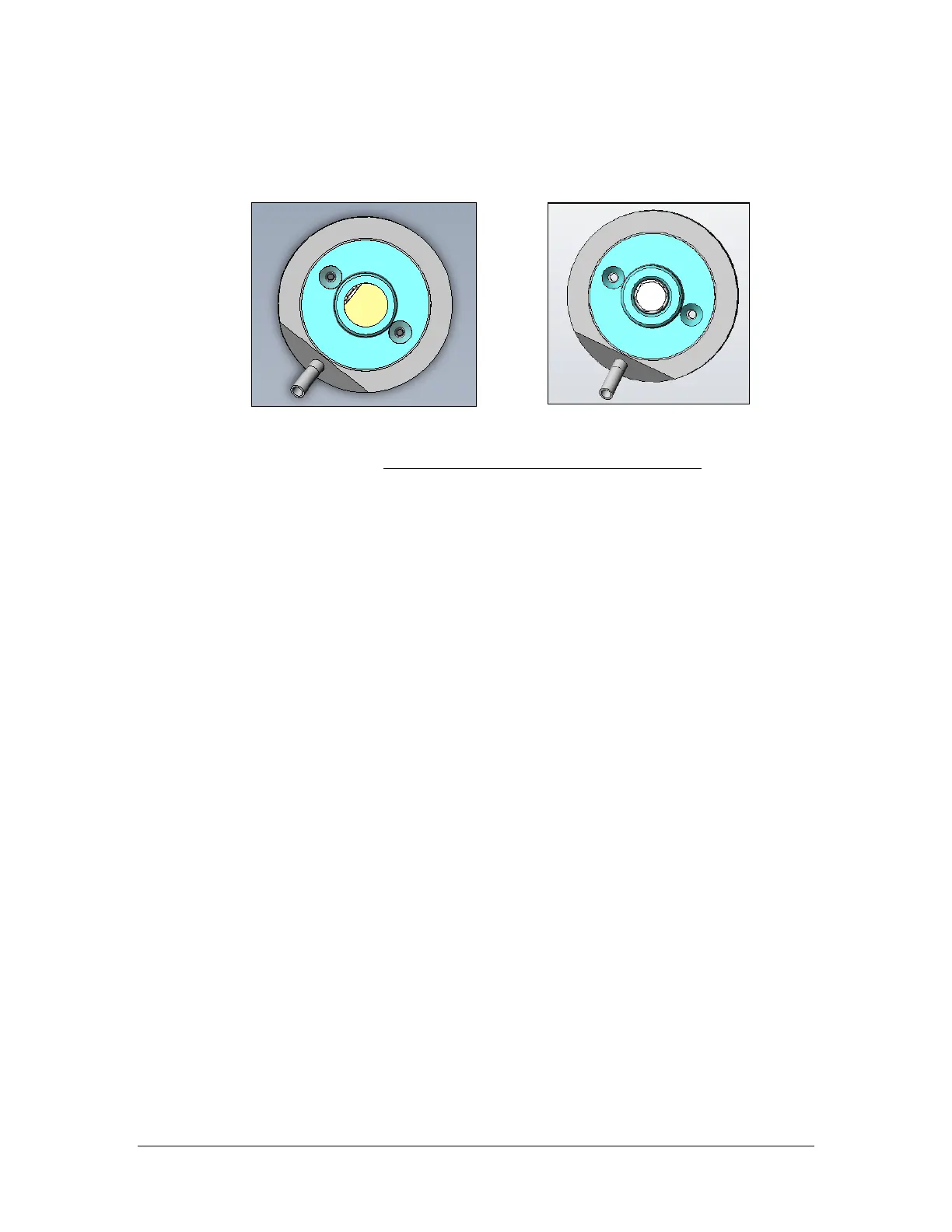

9. Align the piston/flange with the eject body, making sure the needle holes and
screw holes match. Gently lower the flange into the body, install the 2 screws
that hold the flange to the body.
10. To check piston motion, carefully hold the eject head between your thumb and
forefinger making sure your finger(s) are away from the eject needles. Press up on
the piston to make sure it moves smoothly. Inspect that all the needle tips are
planar.
