DE35-ST Operating Instructions
D292469I 51
Y-Axis Placement Sequence: Normal/Inverted

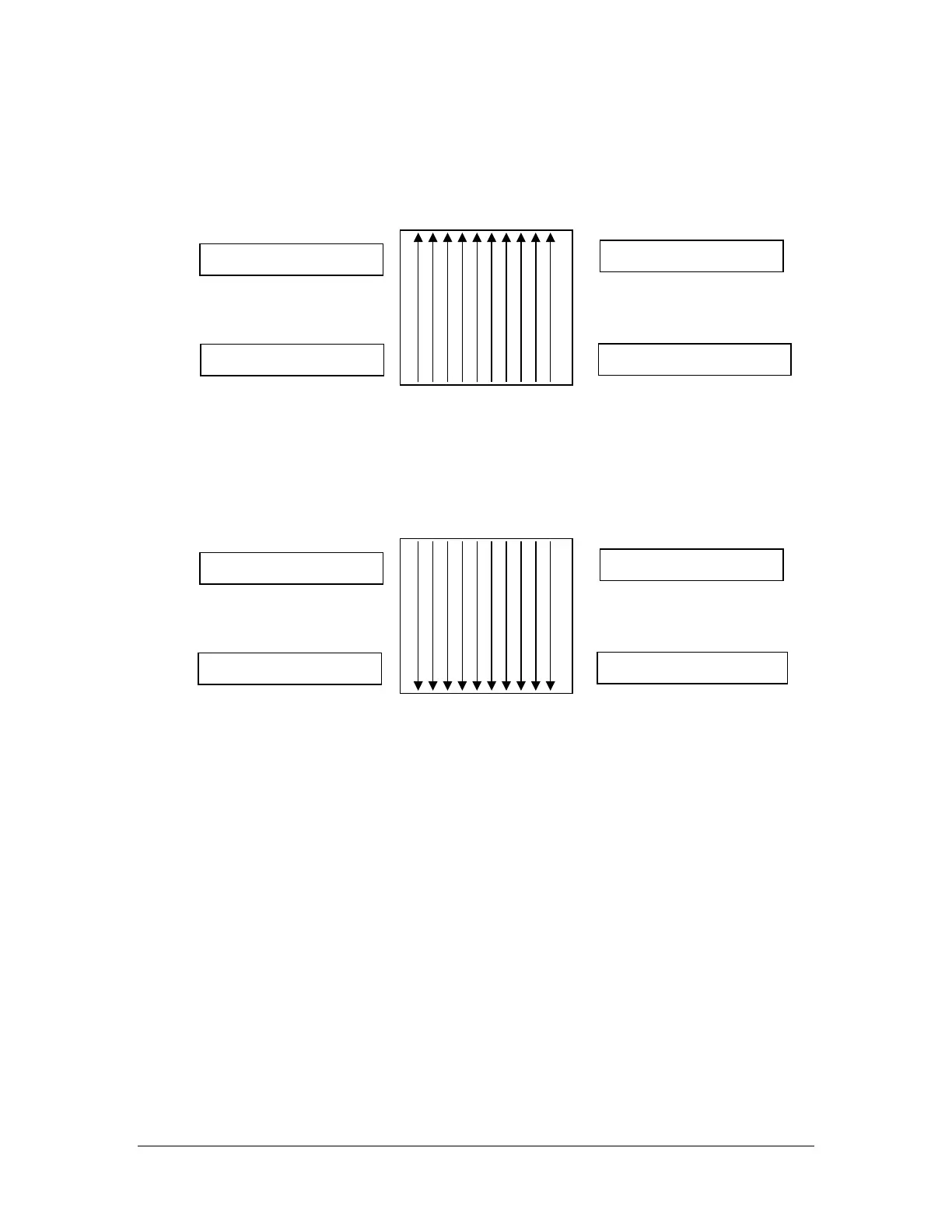

The Normal Y-Axis Placement Sequence in a Waffle Pack or Gel Pak is shown
below:
The Normal Y-Axis Placement Sequence starts on the front side of the Waffle
Pack or Gel Pak and places die from Front to Rear.
The Inverted Y-Axis Placement Sequence in a Waffle Pack or Gel Pak is shown
below:
The Inverted sequence starts on the Rear side of the Waffle Pack or Gel Pak and
places die from Rear to Front.
A combination of the X-Y Placement sequences will allow the user to begin in any
corner of the Waffle Pack or Gel Pak.
Note: Regardless of X and Y Axis Placement sequence direction selected, the
DE35-ST will index in the specified X direction until no further columns are
available before moving to the next row in the specified Y direction.
Right Front of Machine
Right Rear of Machine
Left Front of Machine
Left Rear of Machine
Right Front of Machine
Right Rear of Machine
Left Front of Machine
Left Rear of Machine
