vacon • 118 Control keypad
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
7.2 Keypad push-buttons
The VACON
®
alphanumeric control keypad features 9 push-buttons that are used for the control of
the AC drive (and motor), parameter setting and value monitoring.

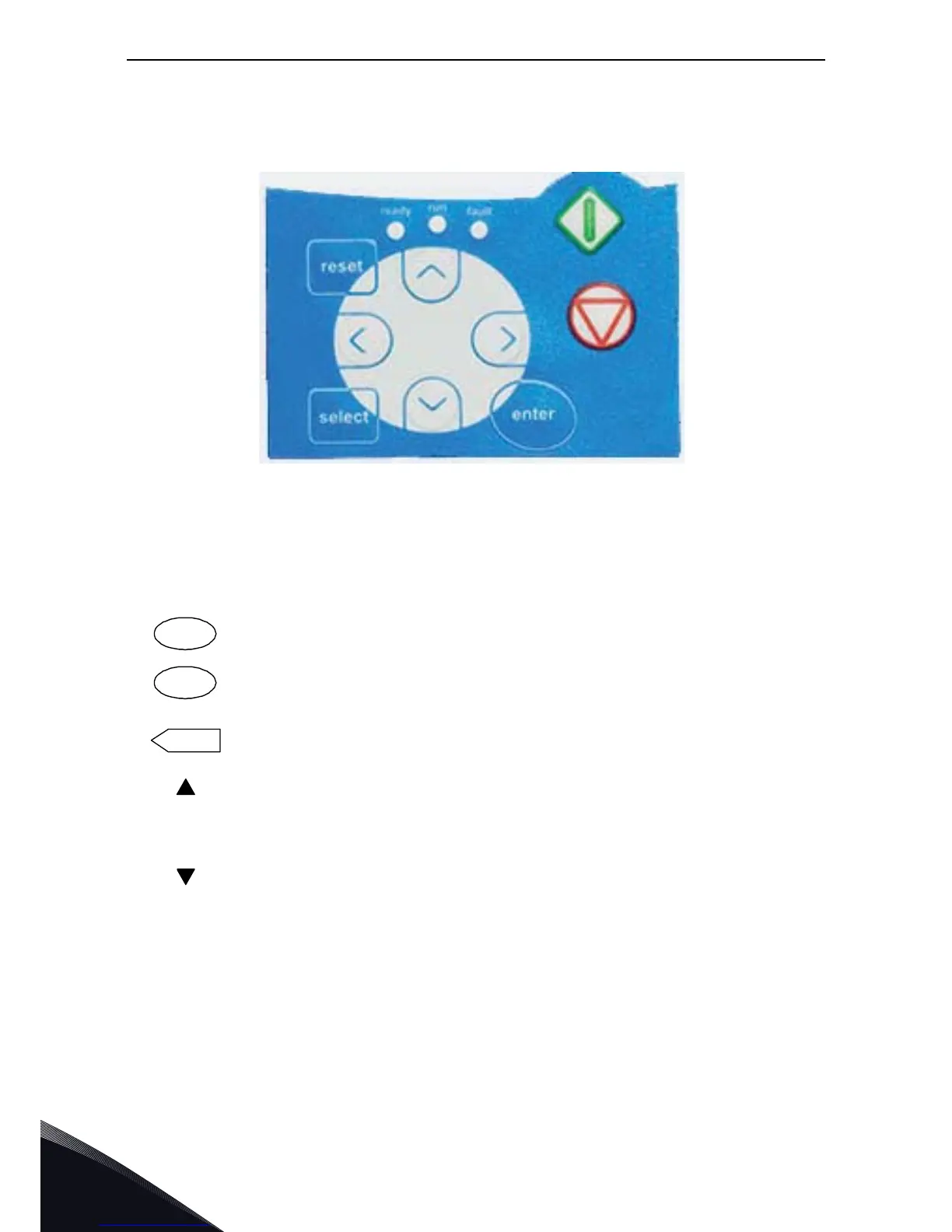

Figure 61. Keypad push-buttons
7.2.1 Button descriptions
= This button is used to reset active faults (see Chapter 7.3.4).
=
This button is used to switch between two latest displays. May be useful when
you want to see how the changed new value influences some other value.
=
The Enter button serves for:
1) confirmation of selections
2) fault history reset (2…3 seconds)
=
Browser button up
Browse the main menu and the pages of different submenus.
Edit values.
=
Browser button down
Browse the main menu and the pages of different submenus.
Edit values.
=
Menu button left
Move backward in menu.
Move cursor left (in parameter menu).
Exit edit mode.
Swap between keypad control and another control as active control place (see
Chapter 7.2.1.1)
=
Menu button right
Move forward in menu.
Move cursor right (in parameter menu).
Enter edit mode.
3063_00
reset
select
enter
+
-



Vacon NX Specifications

General

Product Type	AC Drive
Control Method	Scalar Control
Enclosure	IP00, IP21
Communication	Ethernet
Safety	STO (Safe Torque Off)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Ambient Temperature Range	-10°C to +50°C (with derating above +40°C)
Cooling Method	Air-cooled, Liquid-cooled
