Vacon NX User Manual

7
vacon • 142 Control keypad
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
Enter the following menu level (G#) with the Menu button right. At this level, you can browse through
slots (see page 84) A to E with the Browser buttons to see what expander boards are connected. On
the lowermost line of the display you also see the number of parameters associated with the board.
You can view and edit the parameter values in the same way as described in Chapter 7.3.2. See
Table 59 and Figure 84.
Expander board parameters

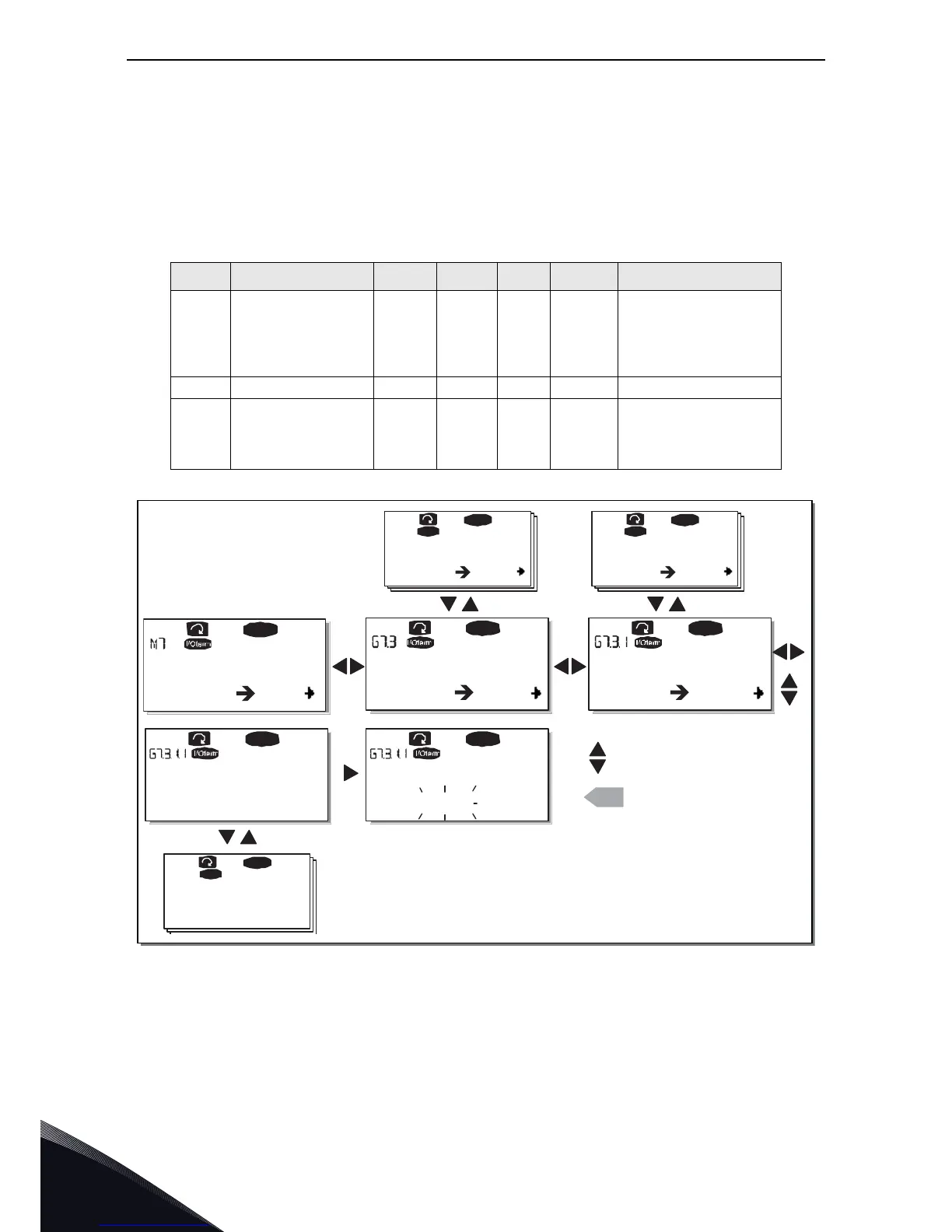

Figure 84. Expander board information menu
7.4 Further keypad functions
The VACON
®
NX control keypad embodies additional application-related functions. See VACON
®
NX
Application Package for more information.
Table 59. Expander board parameters (board OPT-A1)
Code Parameter Min Max Default Cust Selections
P7.1.1.1 AI1 mode 1 5 3
1 = 0…20 mA
2 = 4…20 mA
3 = 0…10 V
4 = 2…10 V
5 = –10…+10 V
P7.1.1.2 AI2 mode 1 5 1 See P7.1.1.1
P7.1.1.3 AO1 mode 1 4 1
1 = 0…20 mA
2 = 4…20 mA
3 = 0…10 V
4 = 2…10 V
G1
G5
READY
READY
G1 G2
READY
READY
enter
P1 P4
READY
I/ Ot er m
G1 G2
READY
I/ Ot er m
V1 V2
READY
READY
I/Oterm
D:NXOPTC2
C:NXOPTC1
Expander boards
Parameters
Slave address
126
Slave address
126
Baud rate
Auto
Monitor
CHANGE VALUE
CONFIRM CHANGE
11398_uk

Vacon NX Specifications

General

Product Type	AC Drive
Control Method	Scalar Control
Enclosure	IP00, IP21
Communication	Ethernet
Safety	STO (Safe Torque Off)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Ambient Temperature Range	-10°C to +50°C (with derating above +40°C)
Cooling Method	Air-cooled, Liquid-cooled
