Vacon NX User Manual

5
vacon • 70 Installation
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
5.4.1 Installation of input chokes
There are two types of input choke connection in VACON
®
NX Liquid-Cooled drives. The two smallest
sizes (CH31, CH32; up to 61 A) have terminal block connection whereas bigger sizes use busbar
connection. Examples of both connections and the choke dimensions below.

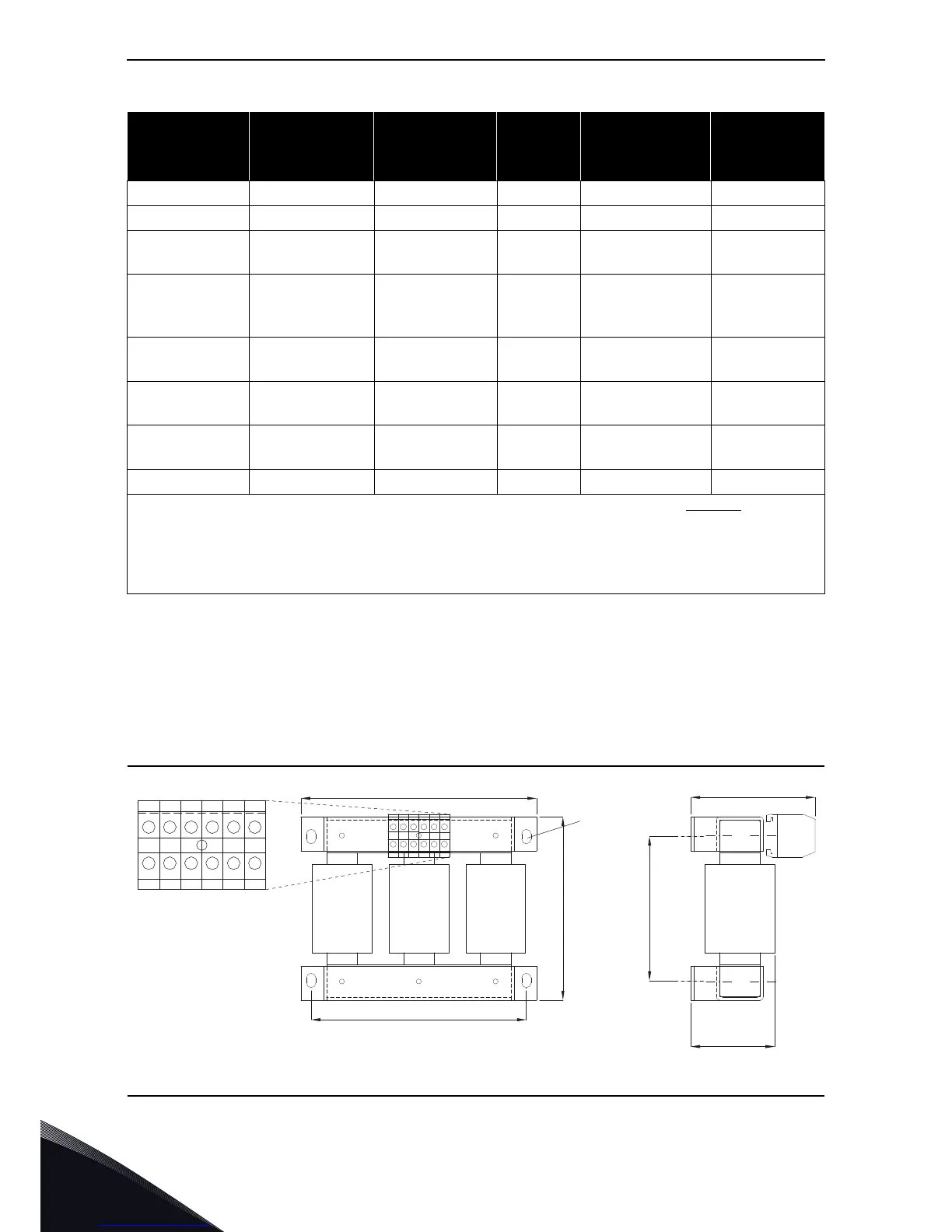

Figure 33. Example of input chokes for VACON
®
NX Liquid-Cooled. Sizes up to 62 A
Table 31. Input choke dimensioning, 12-pulse supply
AC drive types
(400—500 VAC)
AC drive types
(690 VAC)
Choke type
(2 chokes
needed)
Thermal
current
[A]
Nominal
inductance [0H]
A/B*
Calculated
loss [W]
0460…0520 0325…0502 CHK0261N6A0 261 139/187 460
0590…0730 0590…0750 CHK0400N6A0 400 90/120 610
0820…1030
0820…1030
1850
CHK0520N6A0 520 65/95 810
1150
2300
2470
1180…1300
2120…2340
CHK0650N6A0 650 51/71 890
1370
2950
1370
2700
CHK0750N6A0 750 45/61 970
1640
1500
3100
CHK0820N6A0 820 39/53 1020
2060
3710
1700 CHK1030N6A0 1030 30/41 1170
4140 - CHK1150N6A0 1150 26/36 1420
AC drive types written bold italic require two (2) chokes of the designated kind per unit
(totally 4).
*Inductances for different supply voltages; A = 400…480 Vac, B = 500…690 Vac.
See page 72.
W1
W2
H1 H2
D1
D2
S1
ZWYVXU
23a.fh8
11341_00
