vacon • 38 Installation
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/

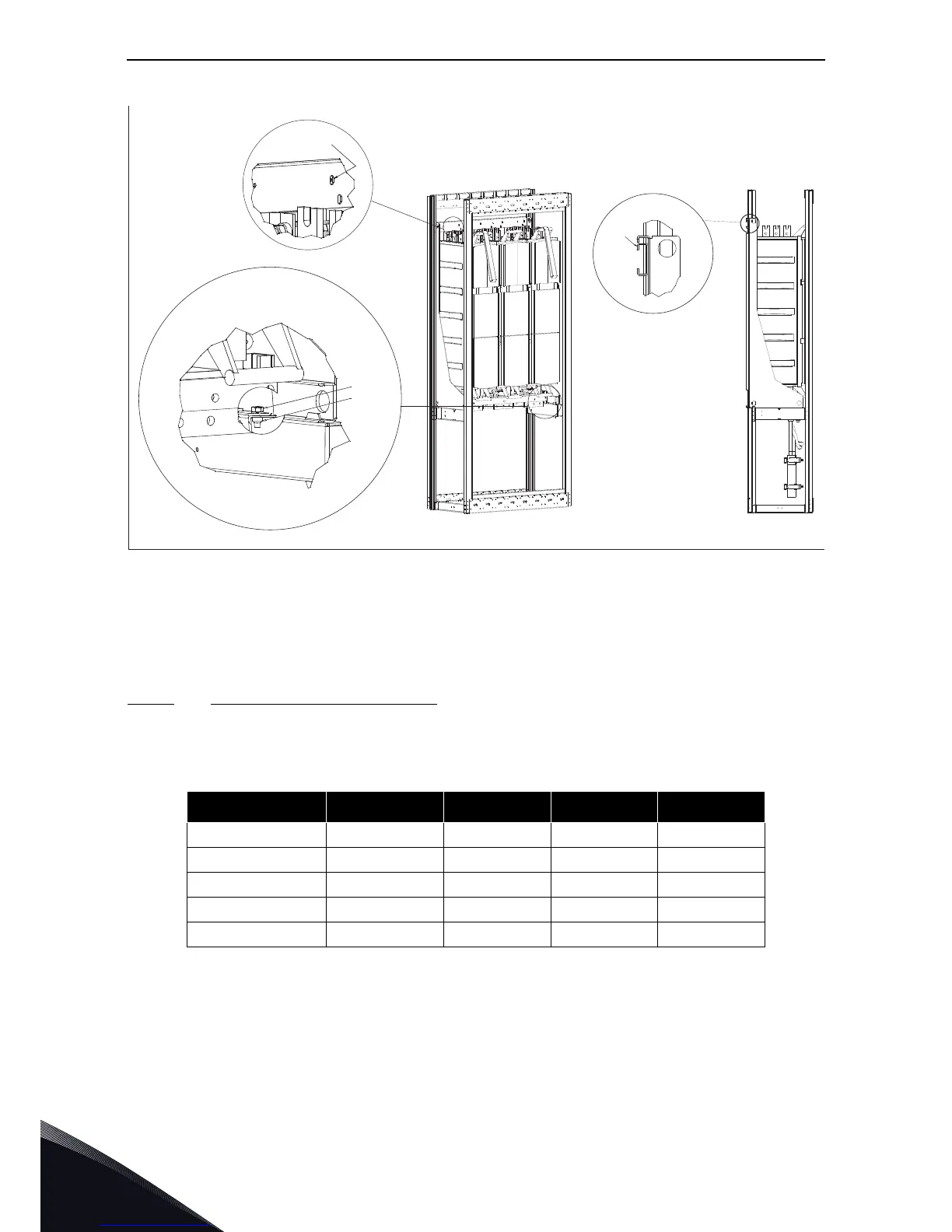

Figure 5. Securing the drive to the cabinet frame
5.1.2 VACON
®
NX Liquid-Cooled dimensions
5.1.2.1
Drives consisting of one module
Table 14. One-module drive dimensions (mounting base included)
Chassis Width Height Depth Weight
*
*. AC choke excluded.
CH3 160 431 246 15
CH4 193 493 257 22
CH5 246 553 264 40
CH61/62 246 658 372 55
CH72 246 1076 372 90
2pcs M8
2pcs M8 PEM
5-6pcs M5
Fixing rail
11313_uk
