5.2.2 Cooling system connections
The external cooling system must be connected to each one of the cooling elements of the inverter
or AC drive.
NOTE! Do not connect the cooling elements in series.
The delivery comprises hoses (Technobel Noir Tricoflex, Art.no 135855) 1.5 m in length and 16 mm
in diameter (CH5, CH6, CH7). The hoses are inserted in 1400-mm UL94V0 approved conduits (type
HFX40). These hoses have screw type connectors with internal thread. The connection of the hoses
is made on the aluminium adapter (external thread) of the cooling element. The customer end
thread of the cooling hose is G1/2" male fixed including a Usit-R sealing. When you make the
connection of the line hose, avoid any twisting of the hose on the element.

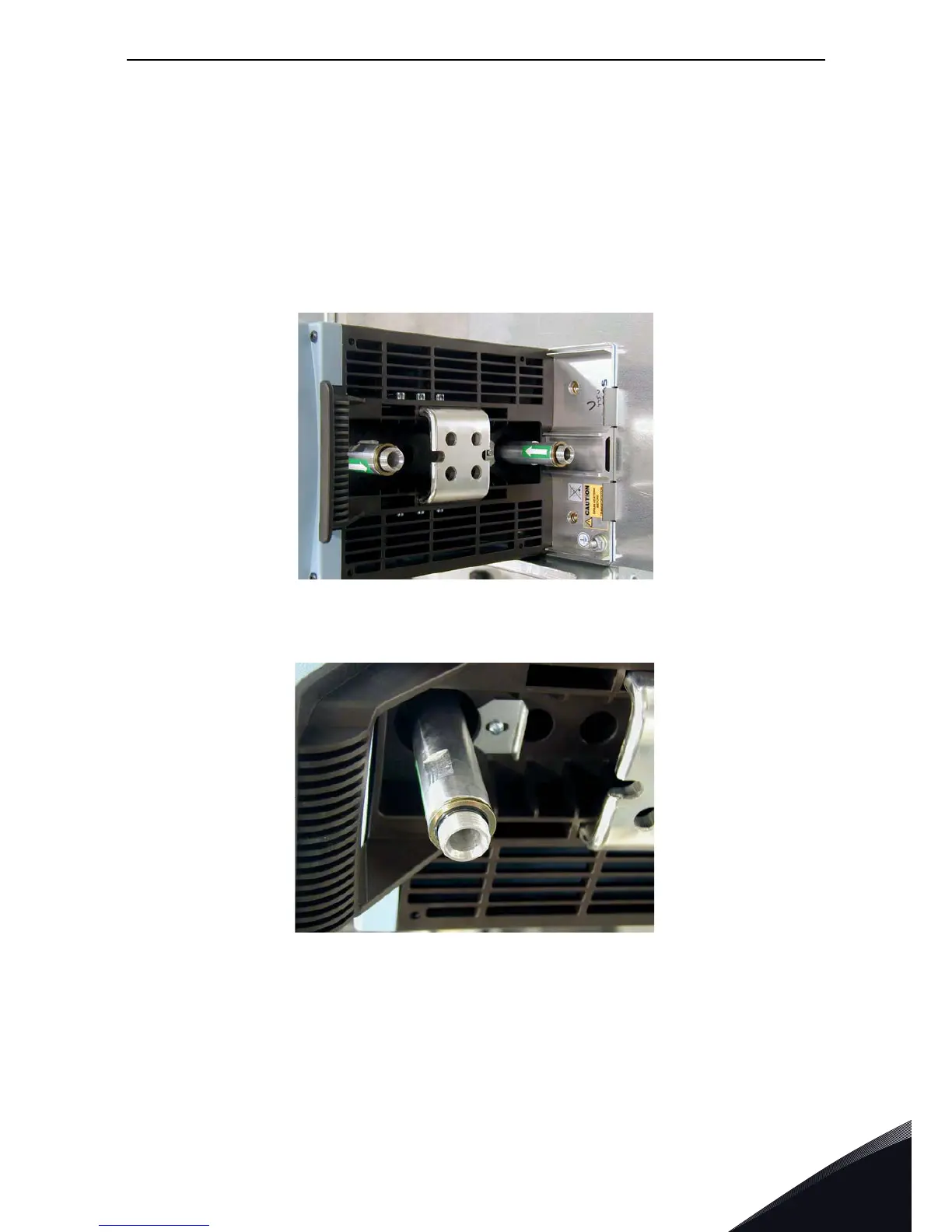

Figure 27. Aluminium hose adapters
Figure 28. External thread of hose adapter
11335_00
11336_00

Vacon NX Specifications

General

Product Type	AC Drive
Control Method	Scalar Control
Enclosure	IP00, IP21
Communication	Ethernet
Safety	STO (Safe Torque Off)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Ambient Temperature Range	-10°C to +50°C (with derating above +40°C)
Cooling Method	Air-cooled, Liquid-cooled
