Vacon NX User Manual

Non-regenerative front end vacon • 183
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
11

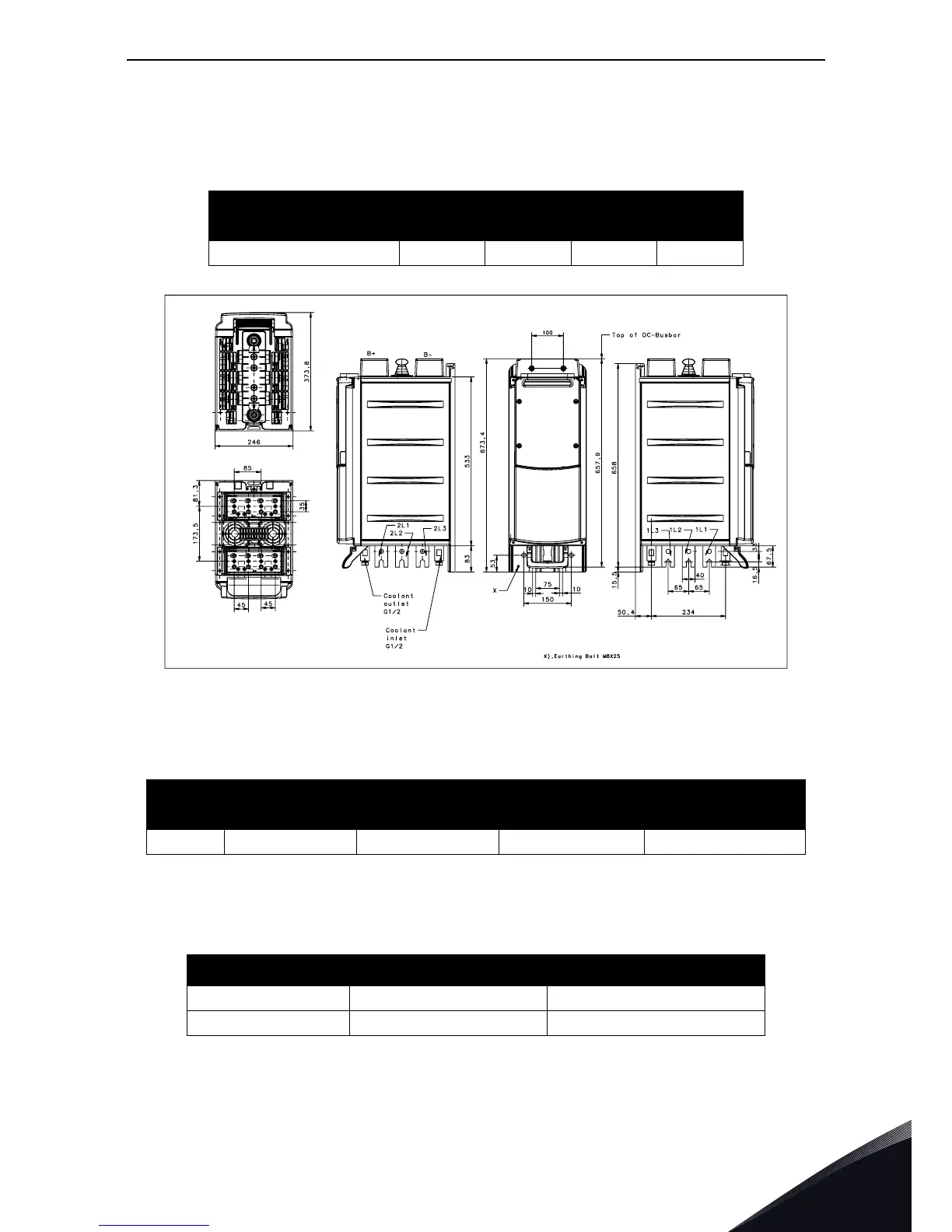

11.7 Dimensions
Figure 103. VACON
®
Liquid-cooled Non-regenerative front end, CH60
Table 73. Non-regenerative front-end unit dimensions
Chassis
Width
[mm]
Height
[mm]
Depth
[mm]
Weight
[kg]
CH60 246 673 374 55
Table 74. Terminal connection
Chassis
Earth terminal
(mm
2
)
Eart terminal
Bolt size
Main terminal
Bolt size per phase
DC terminal
Bolt size per polarity
CH60 25-185 M8 2 x M12 8 x M12
Table 75. Tightening torque of bolts
Bolt Torque (Nm) Max inward length (mm)
Grounding bolt 13.5 -
M12 70 22
11679_uk

Vacon NX Specifications

General

Product Type	AC Drive
Control Method	Scalar Control
Enclosure	IP00, IP21
Communication	Ethernet
Safety	STO (Safe Torque Off)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Ambient Temperature Range	-10°C to +50°C (with derating above +40°C)
Cooling Method	Air-cooled, Liquid-cooled
