vacon • 90 Electrical cabling and connections
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
6.1.5 Supply busbars for inverter units
In order to avoid excessive terminal stresses on busbar terminals on inverter units with DC-supply
on top (CH61…CH64), use flexible busbar connection. See figure below. The maximum terminal
stresses are shown in Figure 37.

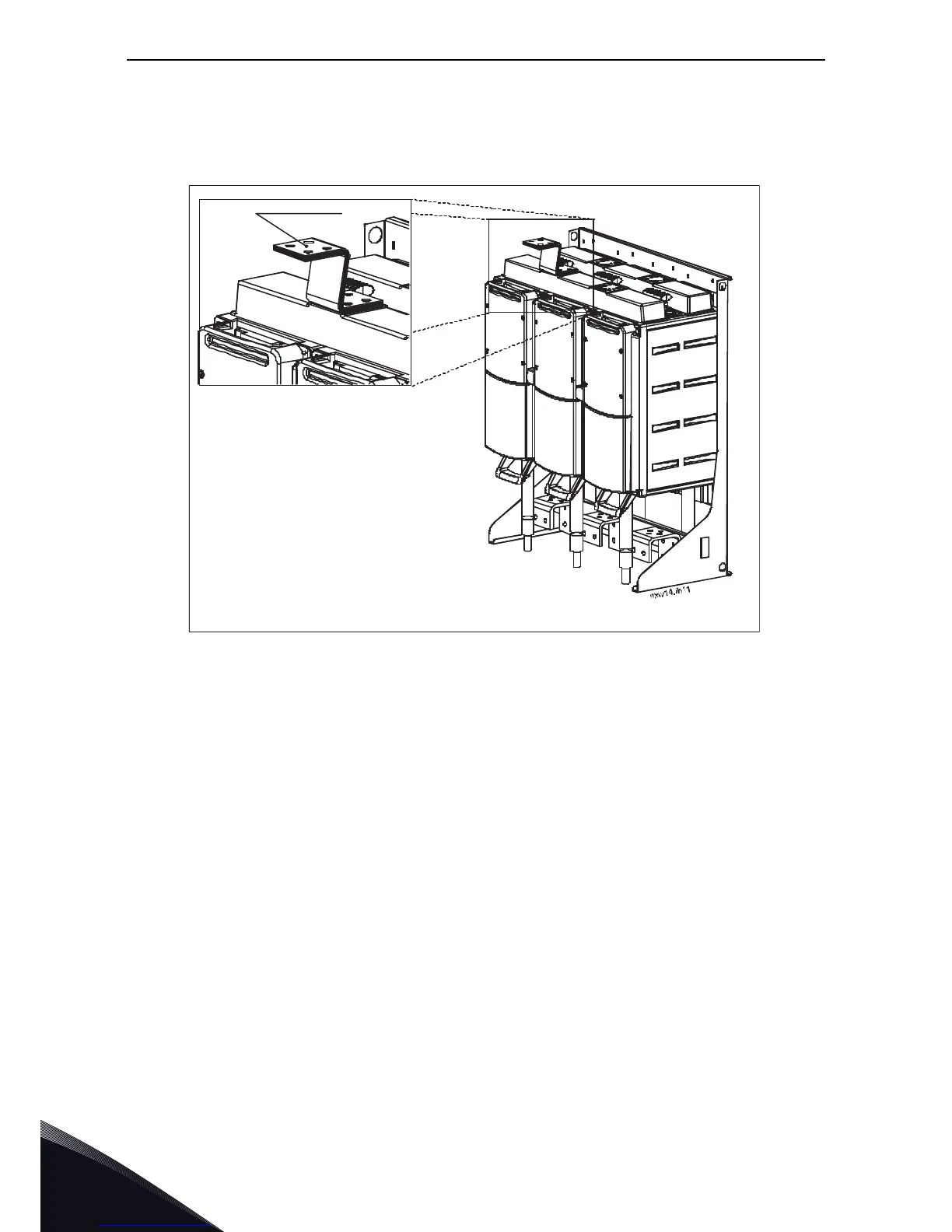

Figure 38. Mounting of flexible busbar
Flexible busbar
11346_uk
