Electrical cabling and connections vacon • 89
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
6

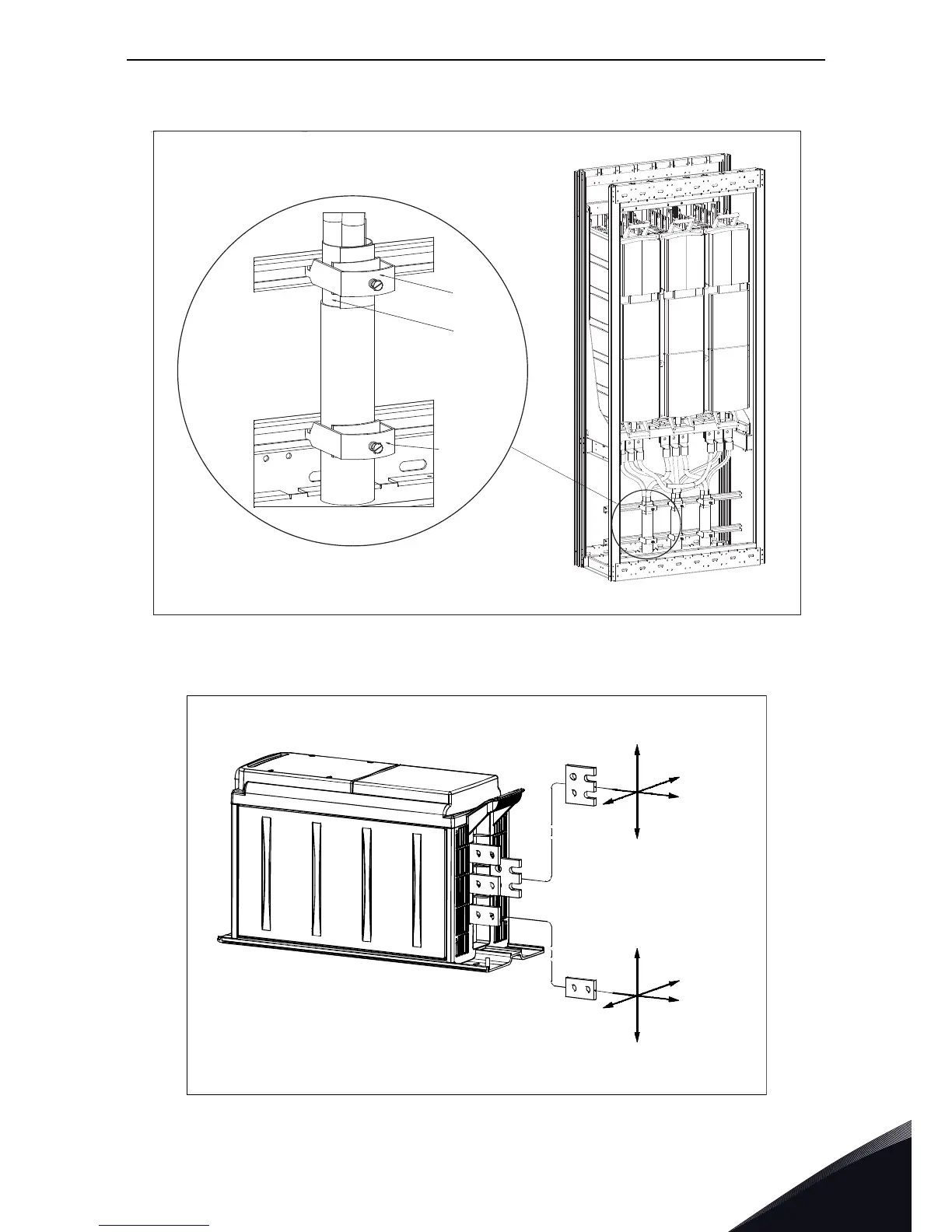

Figure 36. Clamping the motor cables to cabinet frame
Figure 37. Maximum terminal stresses
Cable clamp
Armouring
Cable clamp for
EMC grounding
11344_uk
2,3 kN
2,3 kN
2,3 kN
2,3 kN
1kN
2,3 kN
1kN
2,3 kN
2,3 kN
2,3 kN
nxw11.fh8
AC drives
Maximum terminal stress
11345_uk
