vacon • 96 Electrical cabling and connections
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
6.2.1 Control board power-up
The control board can be powered (+24 V) in two different ways: either 1) directly from the power
board ASIC, terminal X10 or/and 2) externally using the customer’s own power source. The two ways
of supplying the board can be used simultaneously. This voltage is sufficient for parameter setting
and for keeping the fieldbus active.
By factory default, the control unit is powered using the terminal X10 on the power board. However,
if an external supply is used to power up the control unit, a load resistor must be connected to
terminal X10 on the power board. This applies to all chassis ≥ CH61.
6.2.2 Control connections
The basic control connections for boards A1 and A2 are shown in Chapter 6.2.3.
The signal descriptions are presented in VACON
®
NX All in One Application Manual.

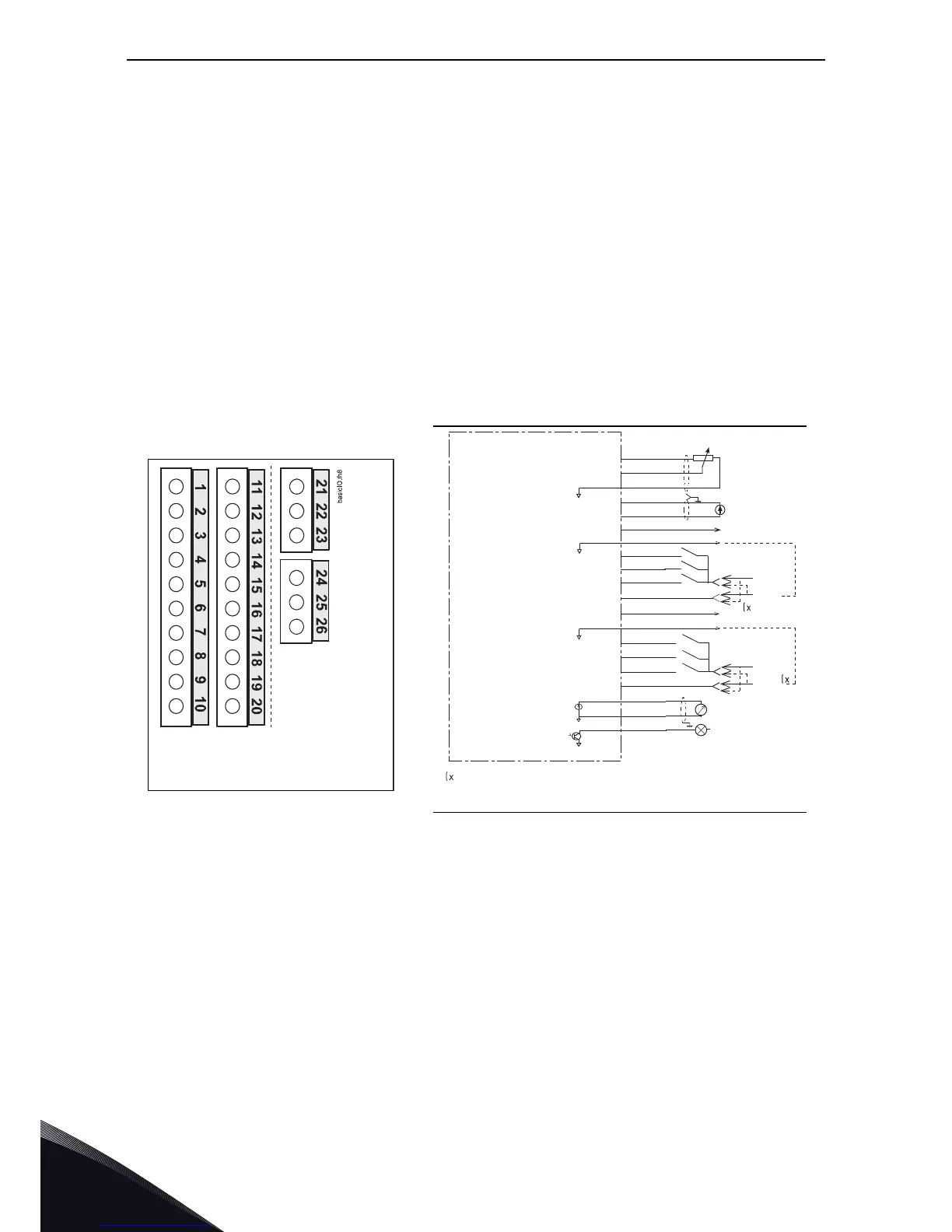

Figure 43. The I/O terminals of the two basic
boards
Board OPT-A1
in slot A
Board OPT-A2
in slot B
11353_uk
Figure 44. General wiring diagram of the basic I/O board
(OPT-A1)
+10Vref
AI1+
GND
AI2+
AI2-
24Vout
GND
DIN1
DIN2
DIN3
CMA
24Vout
GND
DIN4
DIN5
DIN6
CMB
AO1+
AO1-
DO1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
24 V
GND
24 V
GND
U<+48V
I<50mA
+
0(4)/20mA
R
C
<500
Ω
nk6_13
Basic I/O board
OPT-A1
Reference
(voltage)
Reference
(current)
Dotted line indicates the connection with inverted signals
11354_uk

Vacon NX Specifications

General

Product Type	AC Drive
Control Method	Scalar Control
Enclosure	IP00, IP21
Communication	Ethernet
Safety	STO (Safe Torque Off)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Ambient Temperature Range	-10°C to +50°C (with derating above +40°C)
Cooling Method	Air-cooled, Liquid-cooled
