vacon • 46 Installation
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/

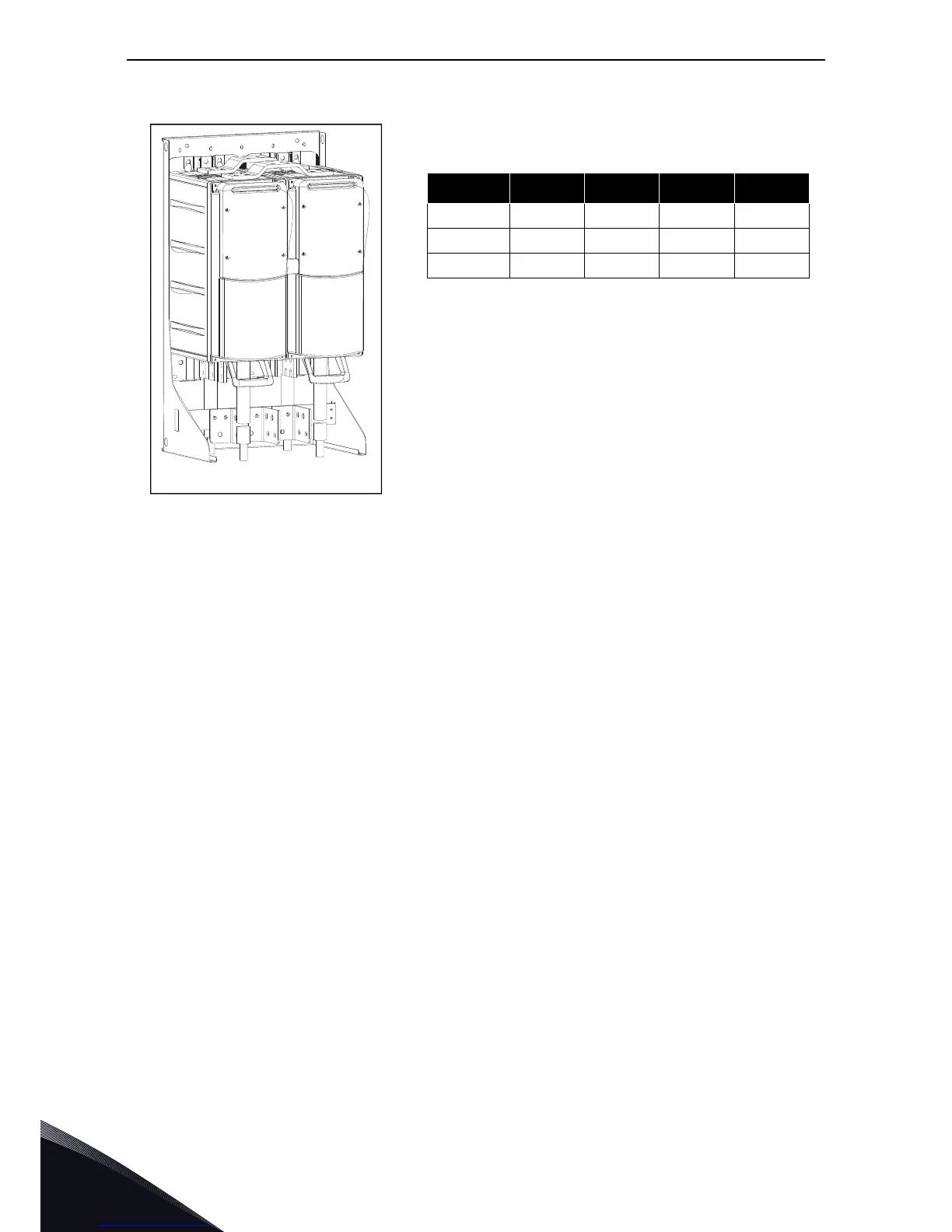

Figure 17. Drive mounted inside mounting bracket
11325_00
Table 15. Several-module drive dimensions (mounting
bracket incl.)
Chassis Width Height Depth Weight
CH63 505 924 375 120
CH64 746 924 375 180
CH74 746 1175 385 280
