Table 42 Receiver Test Points
Test Points Description
TP1 Synchronizing pulse for factory tests
TP2 Reference voltage -2.5 V, ±1 %
TP3 +5 V
TP4 Measurement signal after high-pass filter
TP5 P15: +15 V, ±1 V
TP6 M15: -15 V, ±1 V
TP7 GND
TP8 Measurement signal after 2-stage amplifier
(AC)
TP9 Measurement signal 0 … -10 V before
V/F converter
9611-006

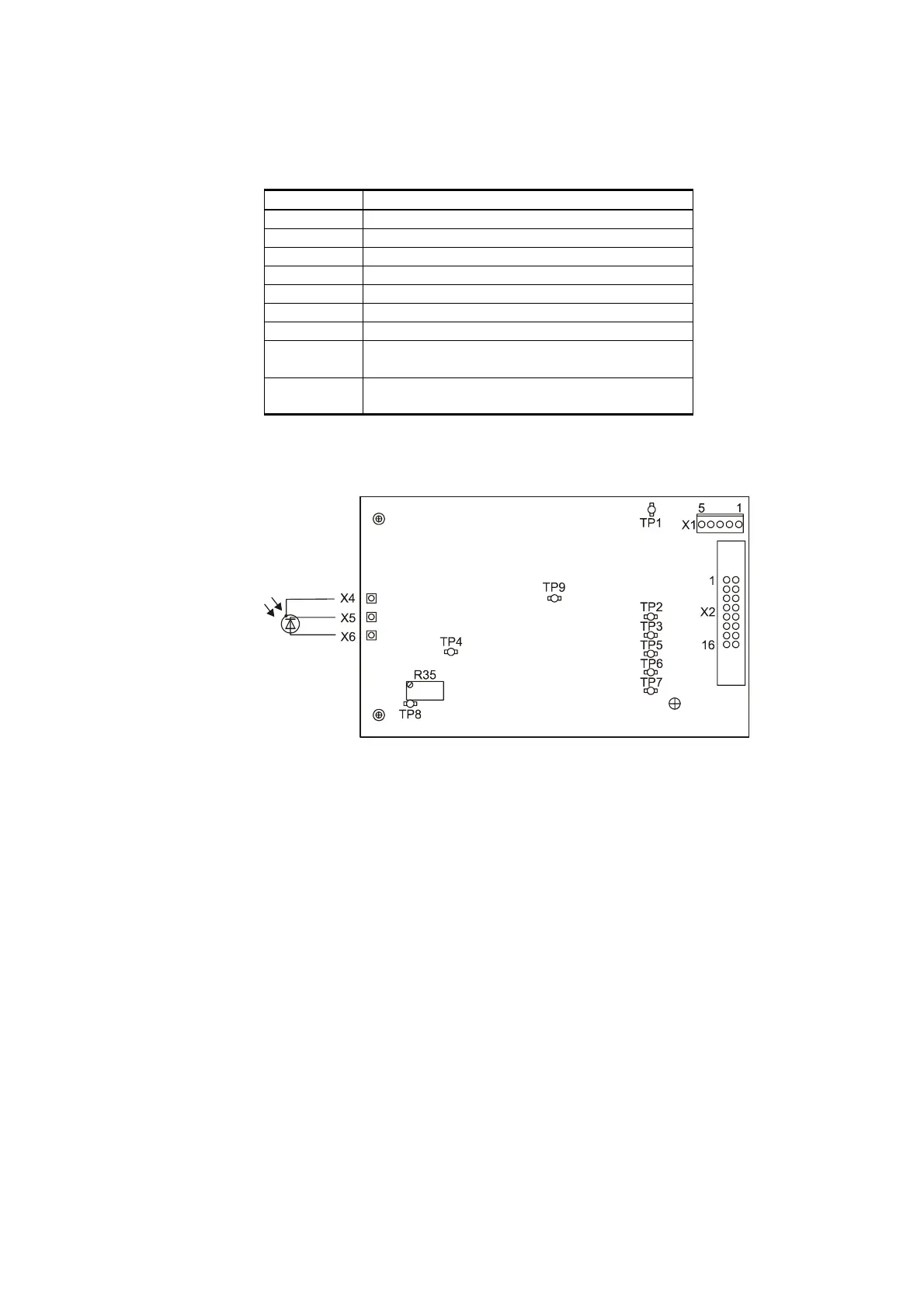

Figure 38 Test Points, Receiver
CPU
TP1 GND
TP2 GND
To Next Page
