Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 41
0110-181

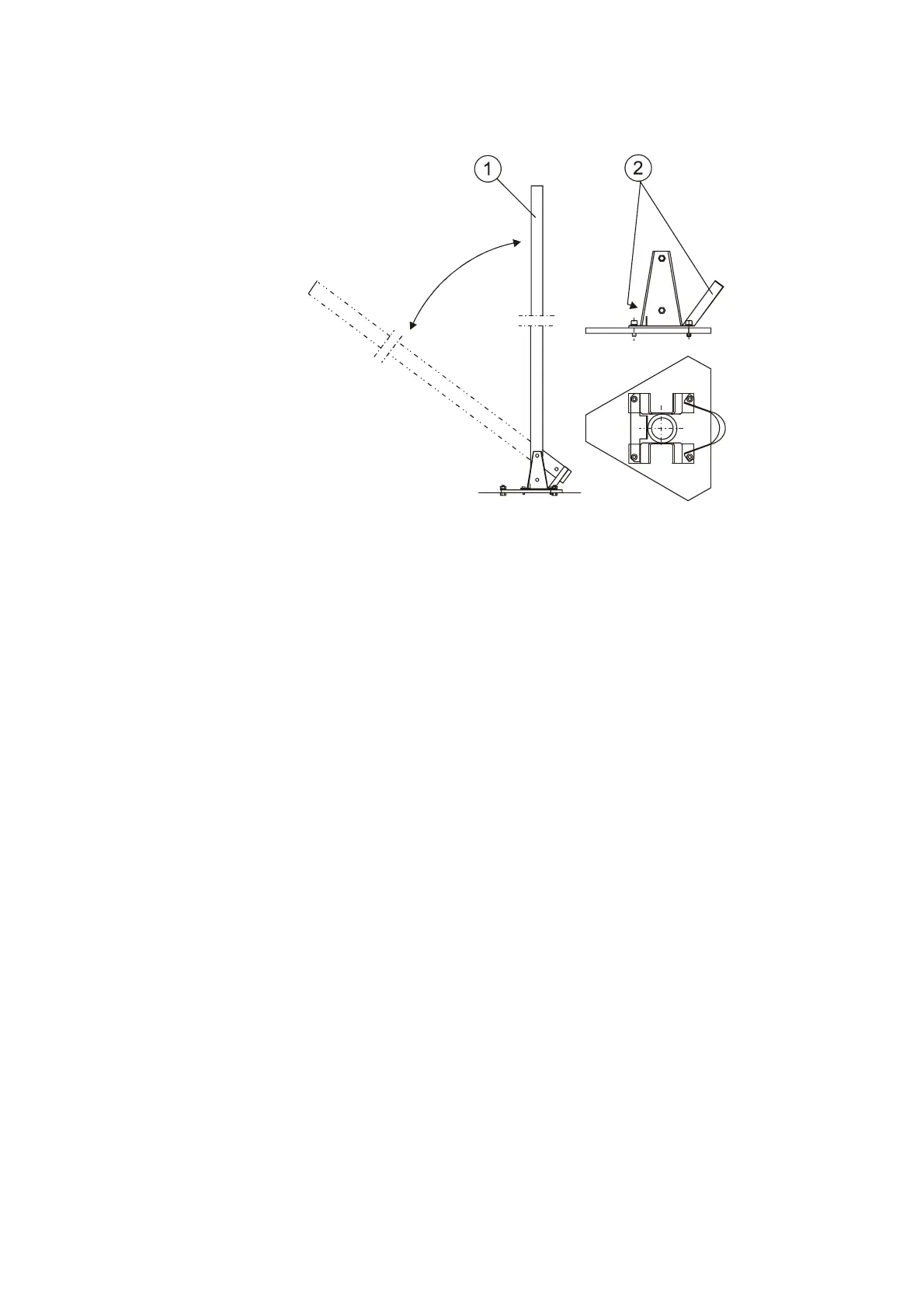

Figure 8 Tilting the Pole Mast
The following numbers refer to Figure 8 above:
1 = Pole mast. For tilting, loosen the upper and remove the lower
M10 × 100 bolts.
2 = Tilting supporters. To be installed under the fastening screws.
Attaching the DTS14B Temperature
Sensor to the Mast
To attach the DTS14B Temperature Sensor to the mast, do the
following:
1. Pull the DTS14B temperature sensor out of the side hole of the
mast.
2. Then attach the holder to the mast in the following way:
- Open the fixing screw fully (part 3 below).
- Push the screw head to the holder with you finger.
- Put the holder to the hole in the mast pole.
- Slide the holder upwards as long as it goes and hold it there.
- Tighten the fixing screw firmly.
