Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 37
Installation Procedures
Constructing the Foundation
Cast a concrete foundation or use an existing construction that is level
and rigid. The recommended minimum dimensions for the foundation
are illustrated in Figure 6 below. It is easiest to mount the foundation
screws while casting the pad. If the pad was casted earlier, drill three
holes into the concrete for the wedge bolts.

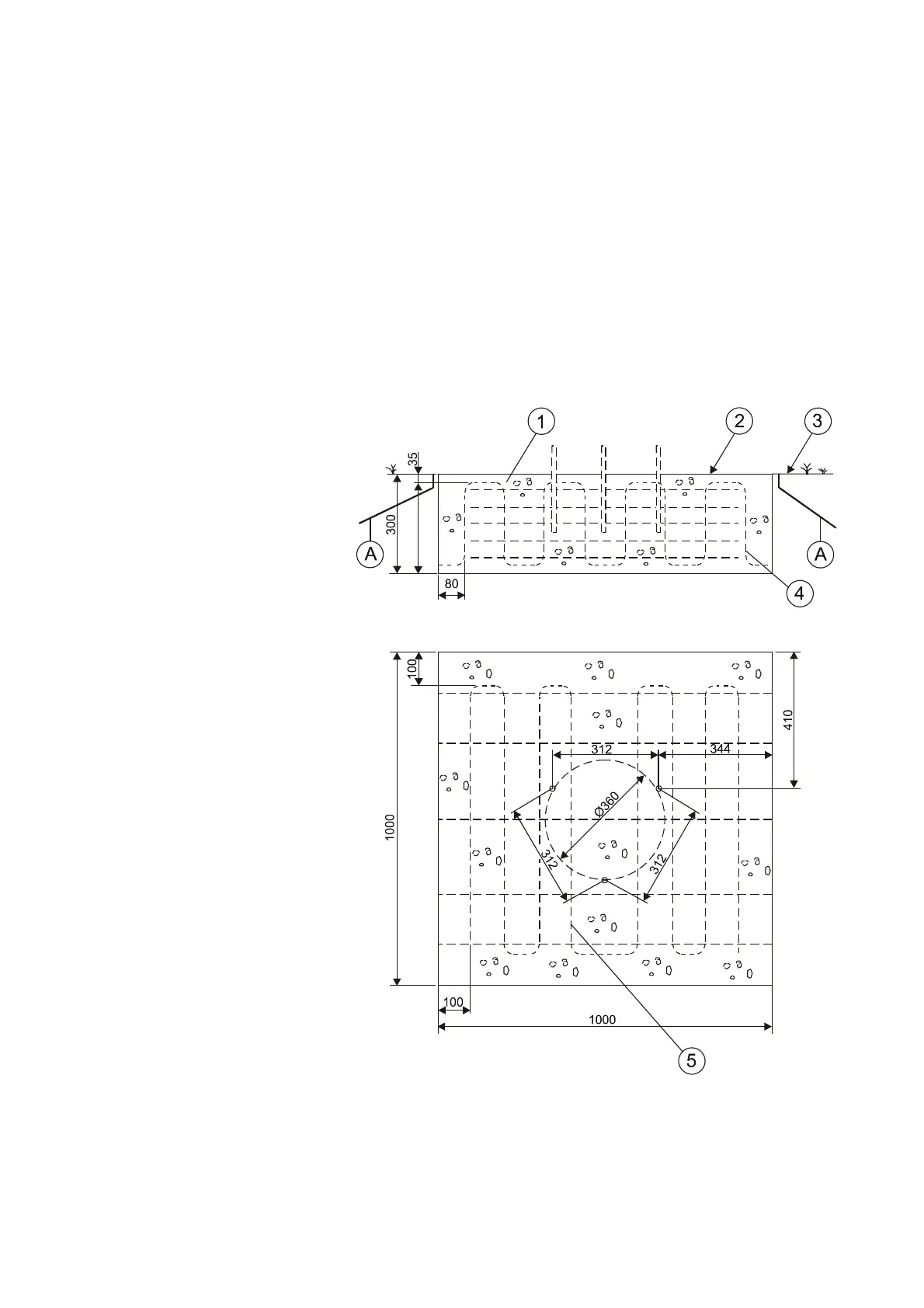

0110-179
Figure 6 Casting a Concrete Foundation
