User's Guide _______________________________________________________________________
18
______________________________________________________ M210296en-A
units, FDT12B Transmitter and FDR12 Receiver. The DRD12 Rain
Detector is fastened to the crossarm. The electronics enclosure with
the main data processing and interface units is mounted to the pole
mast as seen in Figure 1 below.
0201-085

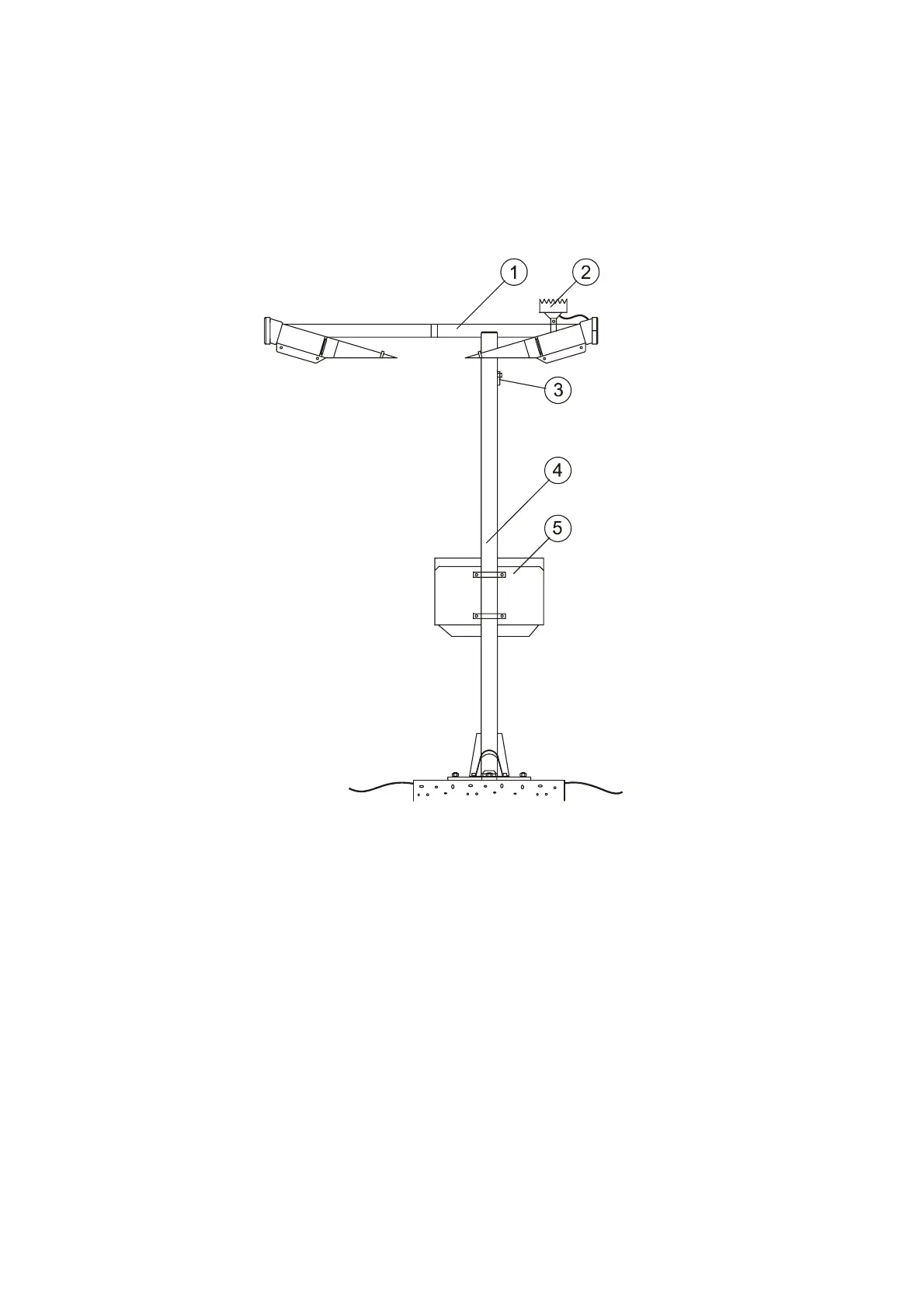

Figure 1 FD12P Weather Sensor Site
The following numbers are related to Figure 1 above:
1 = Transducer crossarm
2 = DRD12 Rain Detector
3 = DTS14 Temperature Sensor
4 = Pole mast
5 = Electronics enclosure
The FD12P Weather Sensor consists of three parts: sensing elements,
electronics enclosure, and structural elements. They are described in
detail on the next page.
