- Insert the crossarm to the pole mast and lock it in the right
position with two 8-mm bolts.
- Erect the mast.
- Lift the DRD12 Rain Detector to an upright position. Tighten
the clamp.
0201-088

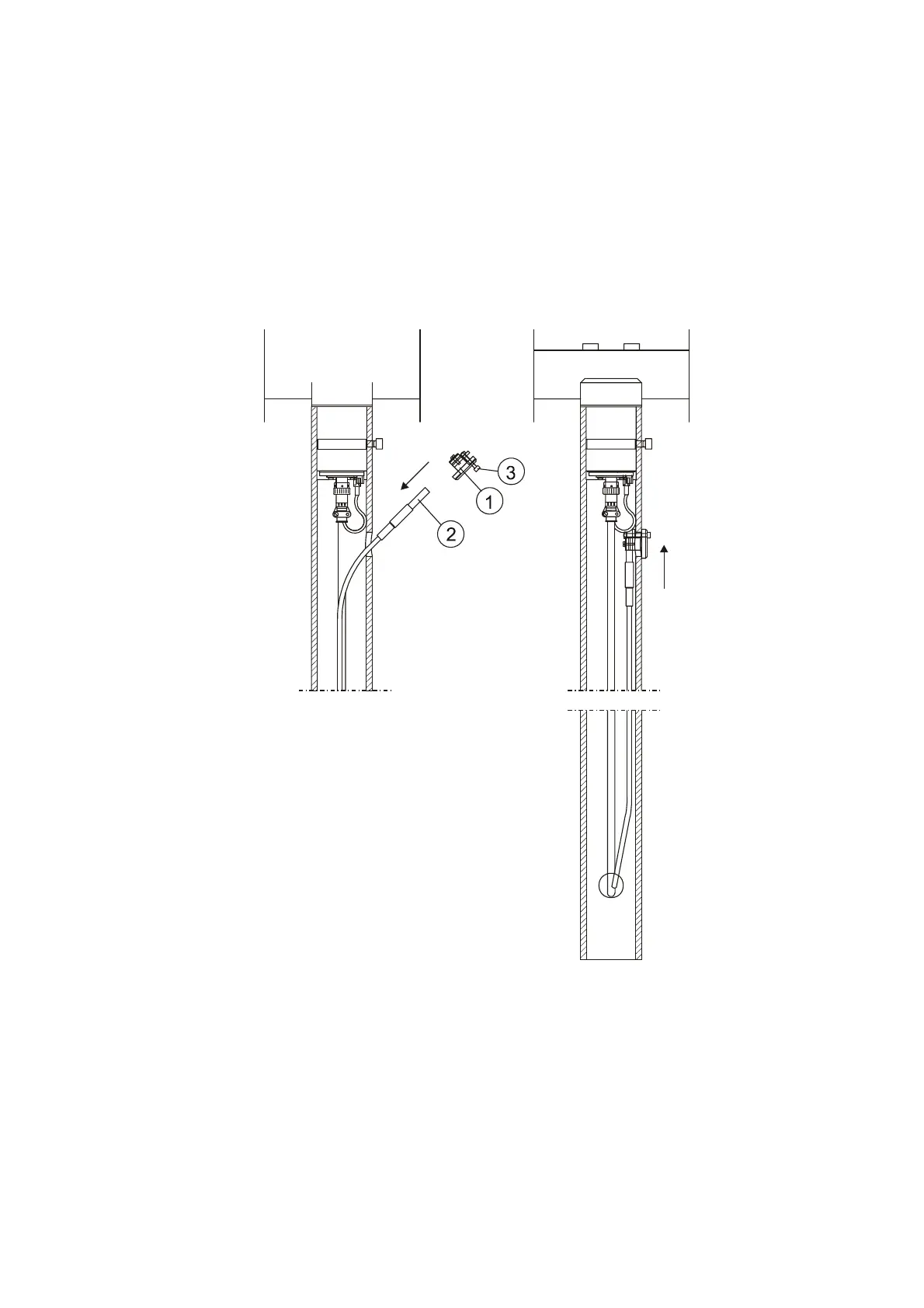

Figure 9 DTS14B and the Sensor Holder Assembly to Mast
The following numbers refer to Figure 9 above:
1 = Sensor holder
2=DTS14
3 = Fixing screw
