Monopolar Cut Controls

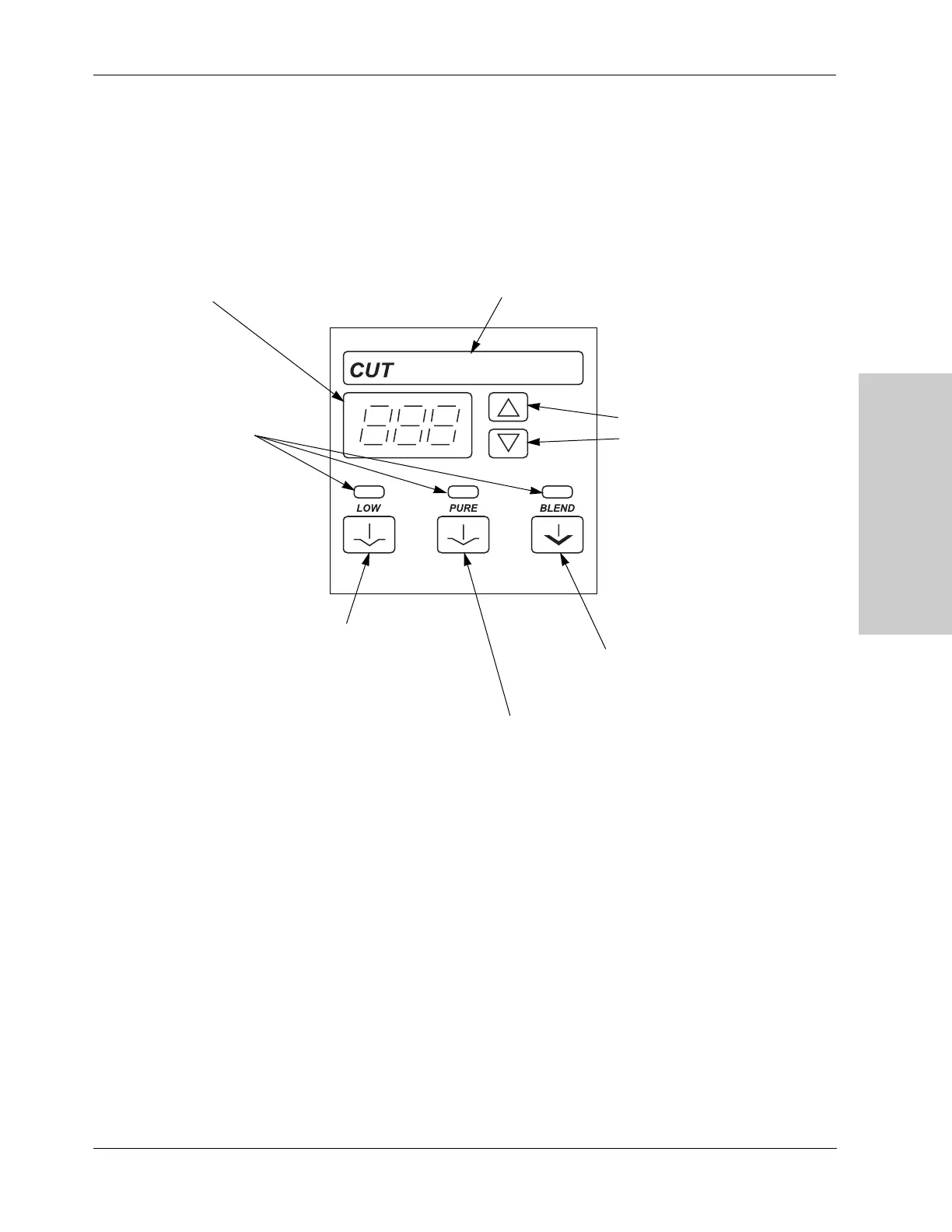

Figure 2-3.
Buttons and indicators for cut controls
(monopolar)
Cut indicator
When you activate cut, this
indicator illuminates yellow and
an activation tone sounds.
Power buttons
Press
∆ to increase the power.
Press
∇ to decrease the power.
Mode indicators
Illuminate green when you press
the corresponding mode button.
Blend mode button
Select for slower cutting and
additional hemostasis.
Pure mode button
Select for an even cut with little or no hemostasis.
This is the default monopolar cut mode.
Low mode button
Select for a cut with little or
no sparking.
Cut display
Shows the power setting, in
watts, for the selected mode.
