Valleylab Force FX-8C - Figure 3-17. Desiccate 3 Coag Mode-Load Resistance Vs. Output Power; Figure 3-18. Desiccate 3 Coag Mode-Output Power Vs. Peak Voltage

Output Power vs. Resistance Graphs
3-22 Force FX-8C Service Manual

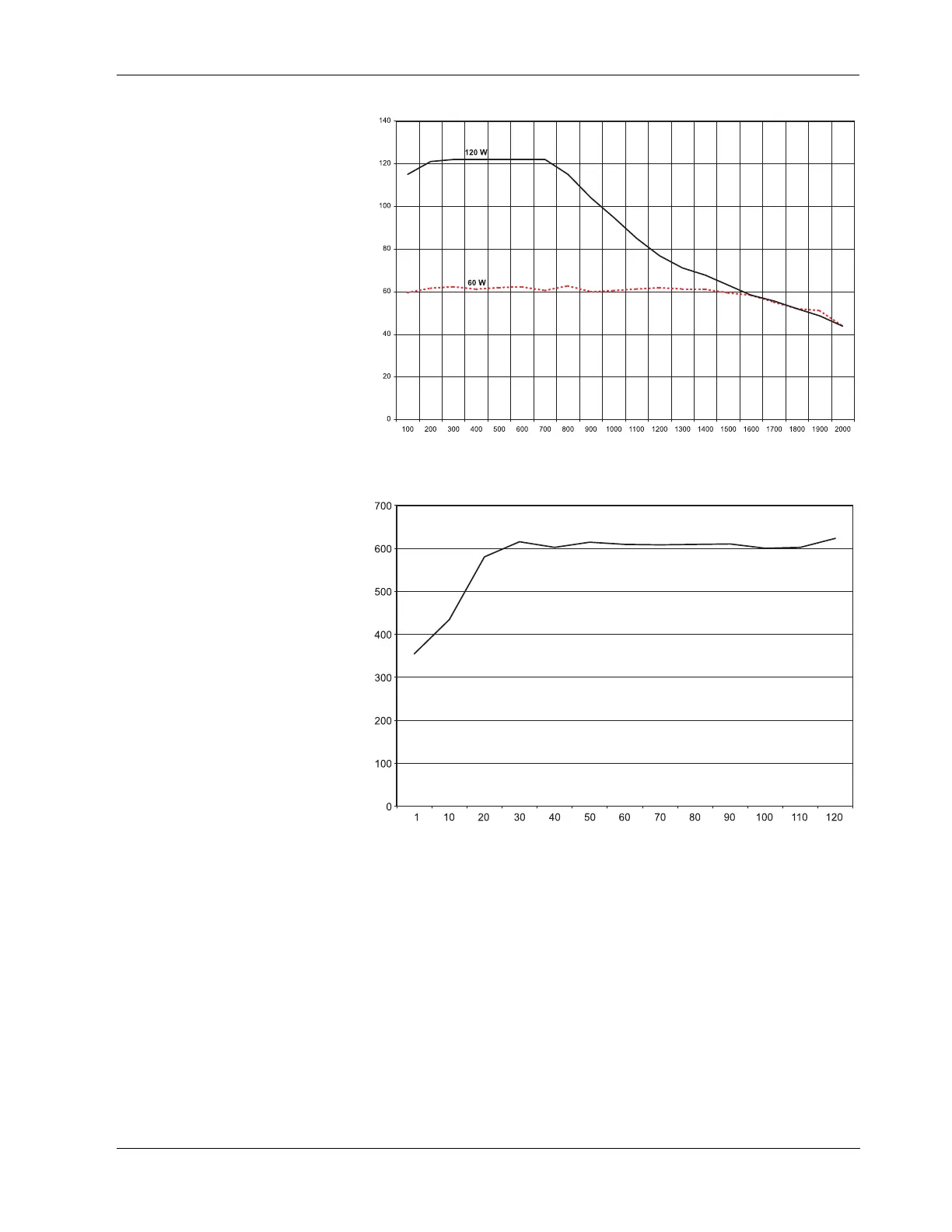

Figure 3-17.
Desiccate 3 coag mode—
load resistance vs. output power
Figure 3-18.
Desiccate 3 coag mode—
output power vs. peak voltage
Load Resistance (ohms)
Output Power (watts)
Output Power (watts)
Open Circuit Peak Voltage (volts)
