Valleylab Force FX-8C - Figure 3-20. Fulgurate Coag Mode-Output Power Vs. Peak Voltage

Output Power vs. Resistance Graphs
Technical Specifications
Force FX-8C Service Manual 3-23

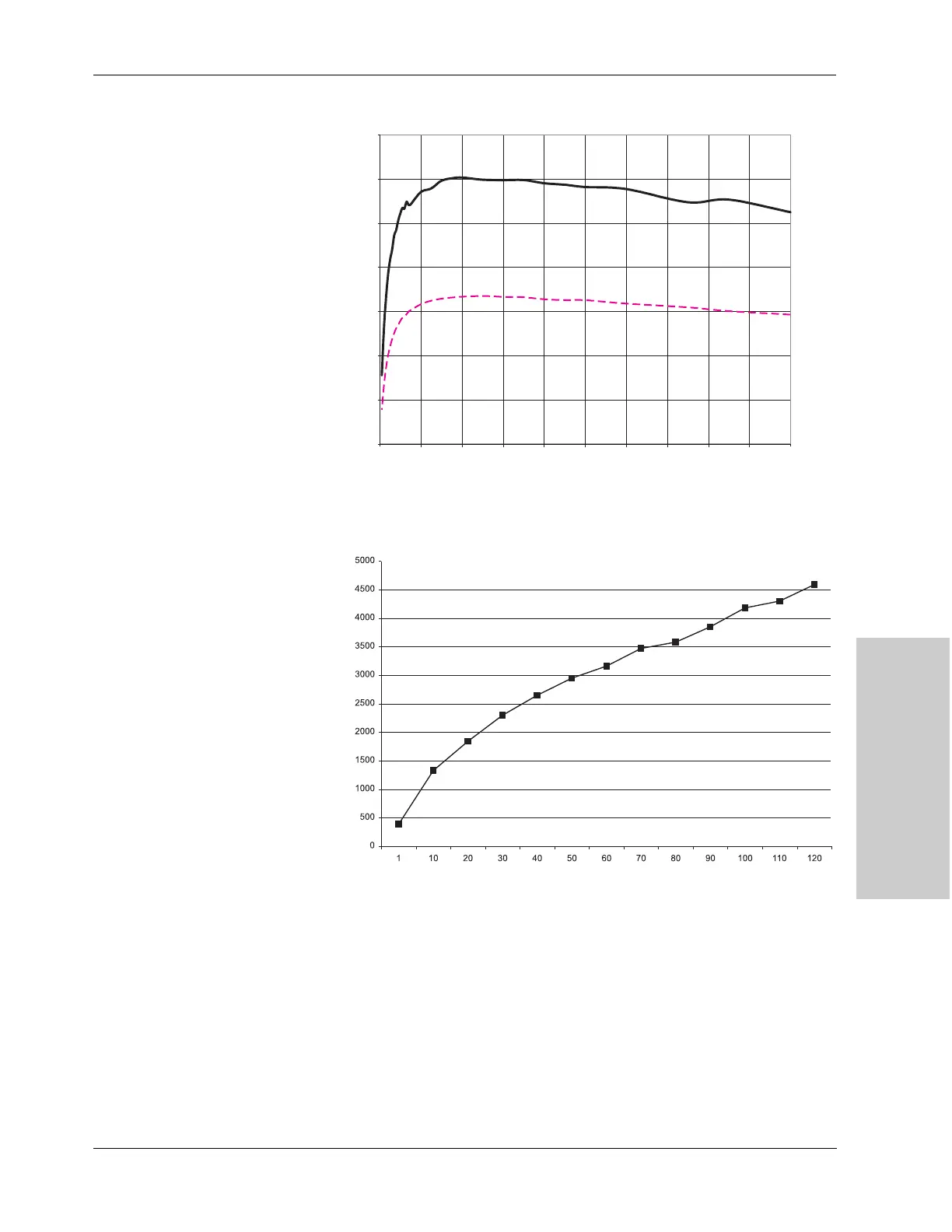

Figure 3-19.
Output power versus impedance for
Fulgurate coag mode
Figure 3-20.
Fulgurate coag mode—
output power vs. peak voltage
140
120
100
80
60
40
20
0
120 W
60 W
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Load Resistance (ohms)
Output Power (watts)
Output Power (watts)
Open Circuit Peak Voltage (volts)
