5 Tamper switch contact open
If the housing is removed from the wall or displaced, the tamper bracket screw is no longer secure
against the wall, causing the bracket to pivot. This in turn causes the tamper switch to swivel away
from the lid and opens the switch contact.
WARNING: If the tamper bracket screw is not secure against the wall, then tamper protection is
compromised.
6.3.3 Installing the batteries
If using two batteries in the G5 housing, it is recommended that both batteries should be the same
Ah rating.

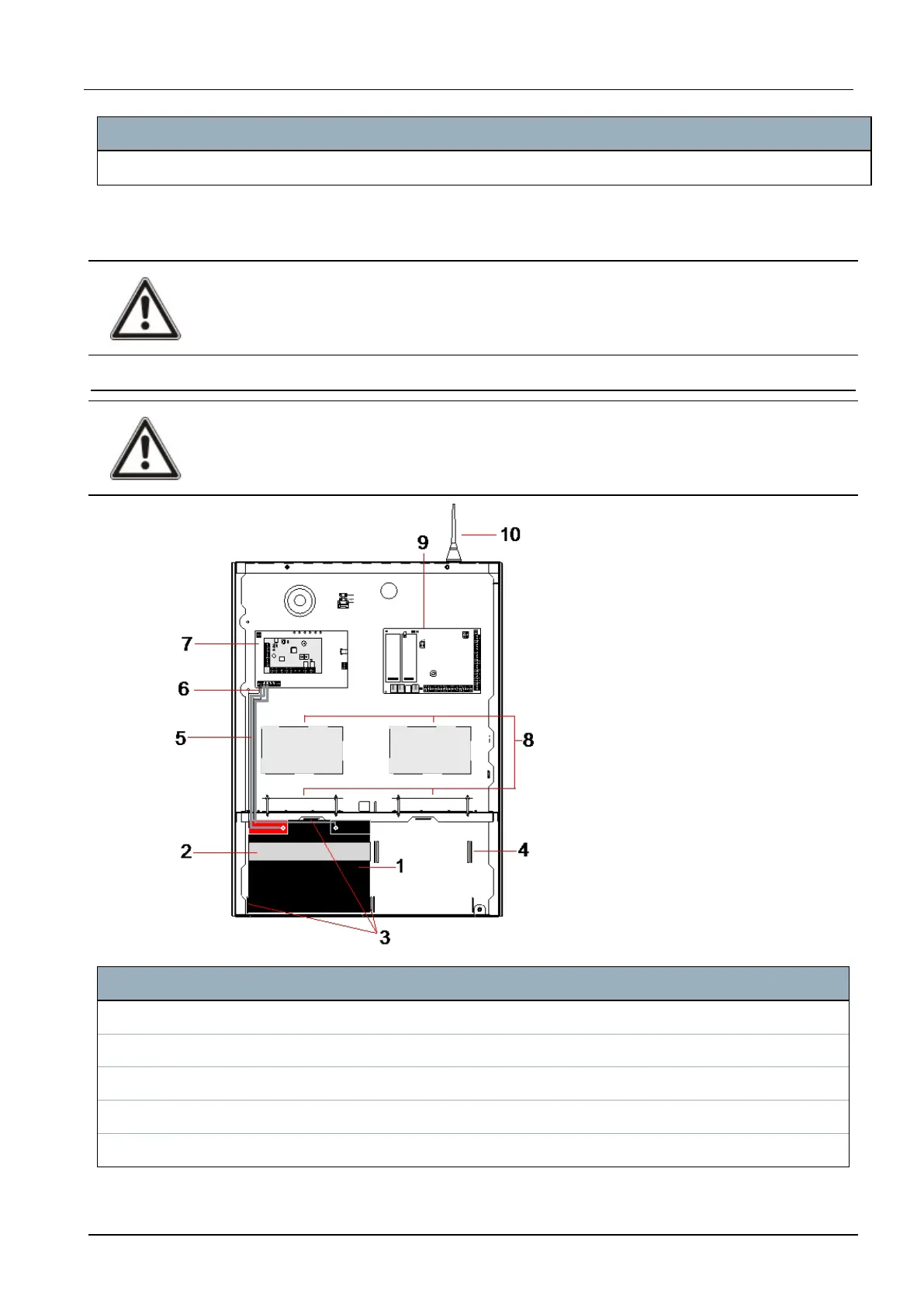

Number Description Number Description
1 Battery 6 Battery temperature lead
2 Fixing strap 7 PSU
3 Battery fixing tabs 8 Optional expander positions
4 Strap holes 9 Controller
5 Battery leads 10 Antenna
