Vanderbilt SPCA210.100 User Manual

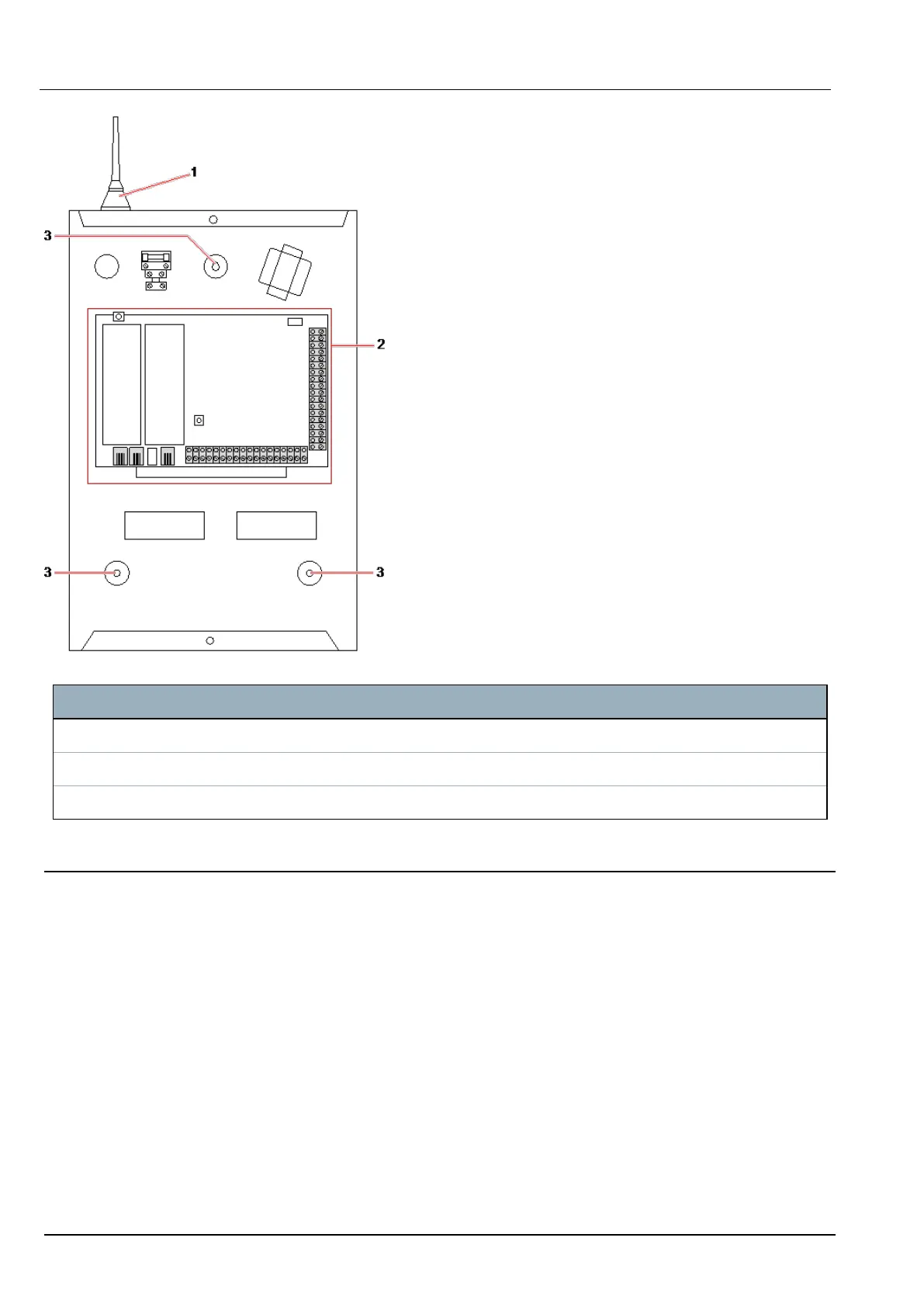

Standard housing
Number Description
1 Wireless antenna
2 SPC controller
3 Wall mounting screw holes
6.2 Mounting a G3 housing
The SPC G3 housing is supplied with a metallic front cover. The cover is attached to the base of the
housing by hinges and secured with one screw on the right hand side of the front cover.
To open the housing, remove the screws with the appropriate screwdriver and open the front cover.
The G3 housing contains the controller PCB (Printed Circuit Board) mounted on a hinged mounting
bracket. Expanders and PSUs can be mounted on the underside of the hinged mounting bracket and also
on the back wall of the housing underneath the mounting bracket.
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Mounting system equipment
© Vanderbilt 2018 44 A6V10276959-d
11.2018
