To wall mount the housing:

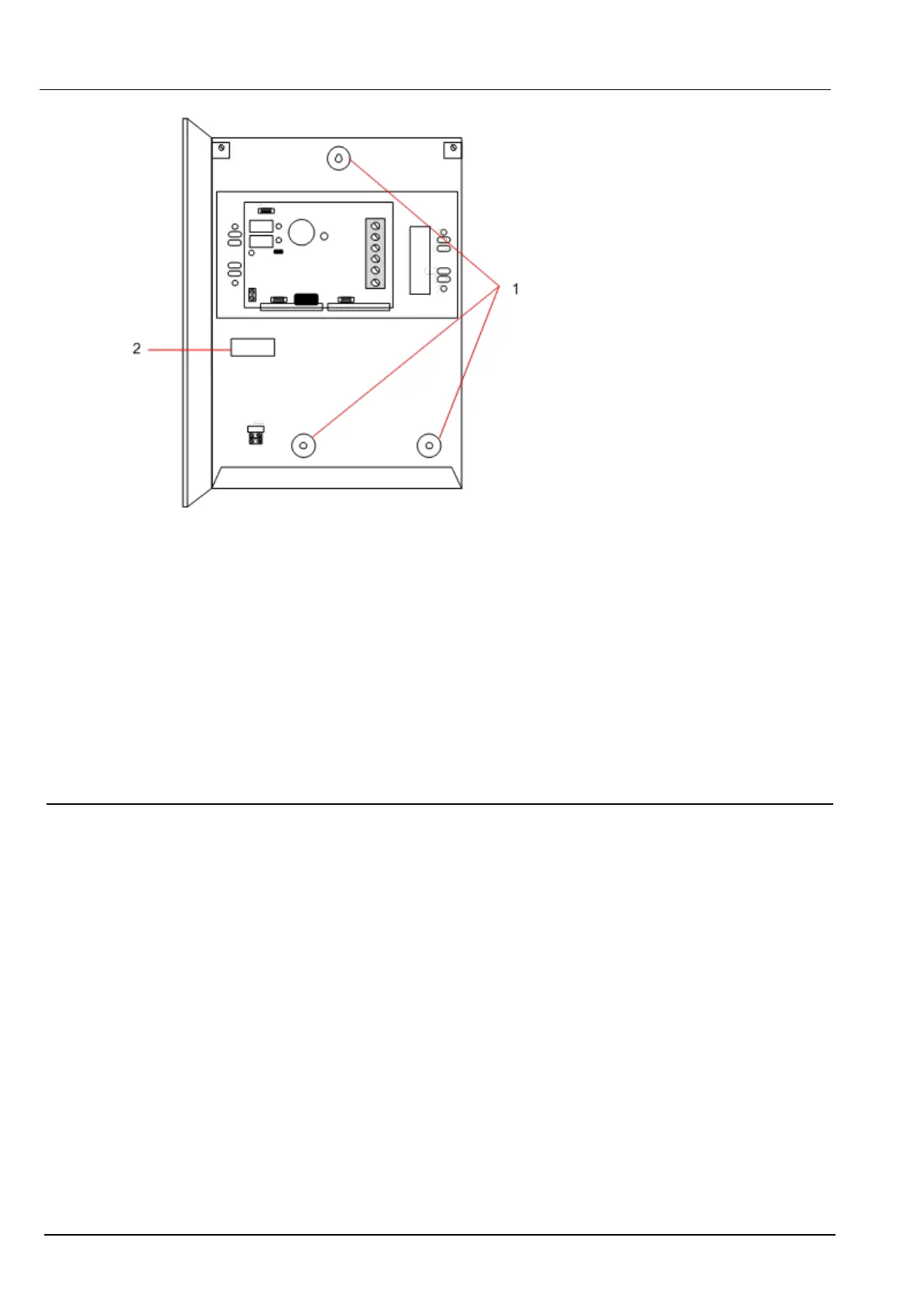

1. Open the cover and locate the initial fixing screw hole at the top of the housing.
2. Mark the position of this screw hole on the desired location on the wall and drill the initial screw hole.
3. Screw the unit to the wall and mark the position of the bottom 2 screw hole positions with the unit
vertically aligned.
Back Tamper Requirements
A back tamper switch may be required by your local approval.
The back tamper switch is delivered with SPC panels in G3 housings or is available as an optional extra
with a mounting kit (SPCY130). EN50131 G3 panels (SPCxx3x.x20) are supplied with a back tamper kit
as standard.
6.2.1 Mounting a Back Tamper Kit
The SPC back tamper kit provides SPC control panels and power supplies with the option of having back
tamper as well as front tamper.
The back tamper kit comprises the following parts:
l Tamper switch
l Leads for connecting the back tamper switch to the controller
l Wall fixing plate
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Mounting system equipment
© Vanderbilt 2018 46 A6V10276959-d
