Vanderbilt SPCA210.100 User Manual

Number Description
1 Tamper
2 Alarm
3 EOL 4k7
4 EOL 4k7

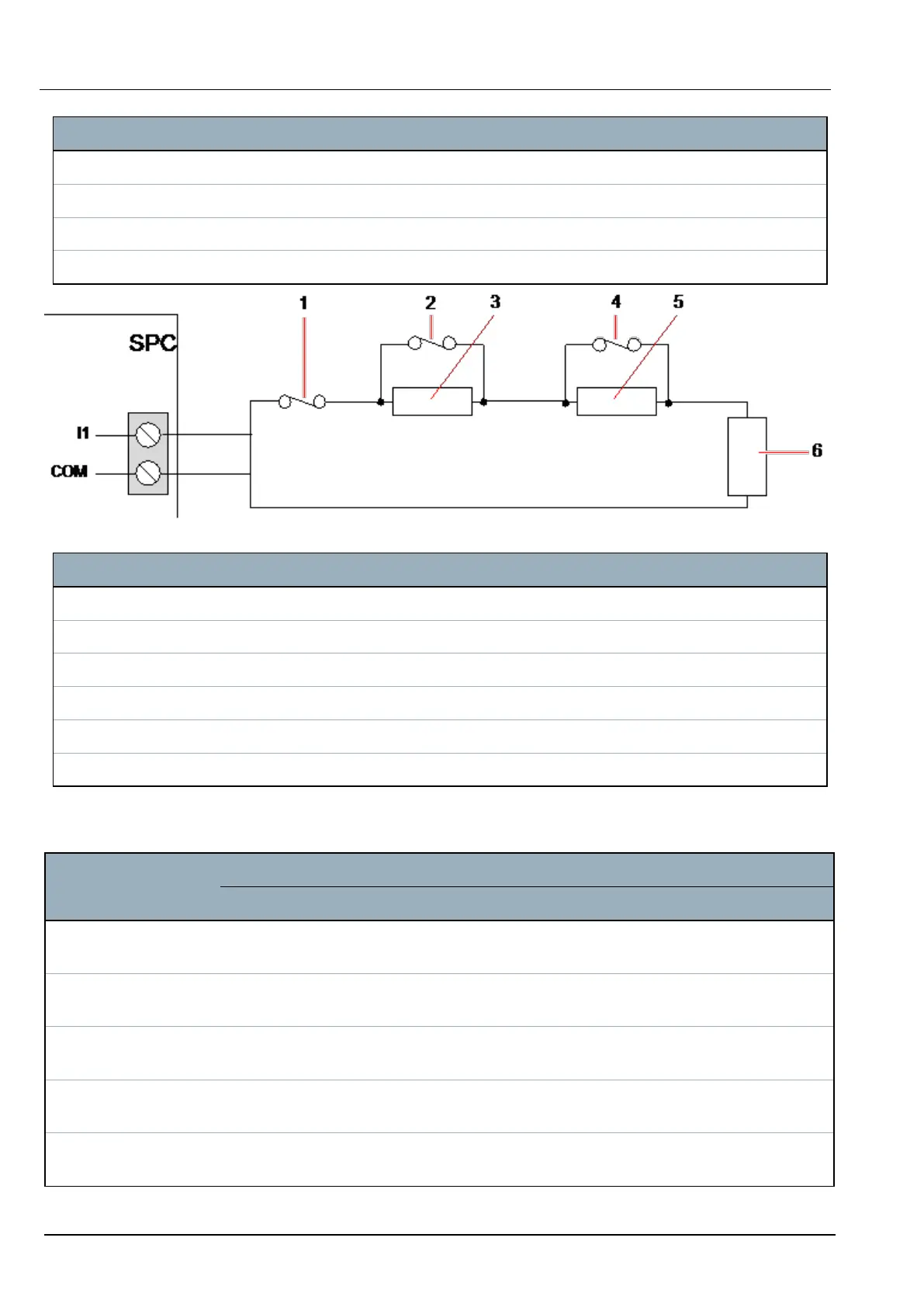

Anti-Masking PIR configuration
Number Description
1 Tamper
2 Alarm
3 EOL 4k7
4 Fault
5 EOL 2K2
6 EOL 4k7
The following table shows the resistance ranges associated with each configuration.
Single EOLs
EOL Type
Quiescent Alarm
Min Nom Max Min Nom Max
NONE 0Ω
(-100%)
150Ω 300Ω
(+100%)
300Ω
(+100%)
N/A Infinite
SINGLE_1K 700Ω
(-30%)
1kΩ 1.3kΩ
(+30%)
23kΩ N/A Infinite
SINGLE_1K5 1.1kΩ
(-27%)
1.5kΩ 2.1kΩ
(+40%)
23kΩ N/A Infinite
SINGLE_2K2 1.6kΩ
(-28%)
2.2kΩ 2.9kΩ
(+32%)
23kΩ N/A Infinite
SINGLE_4K7 3.1kΩ
(-22%)
4.7kΩ 6.3kΩ
(+24%)
23kΩ N/A Infinite
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Wiring the system
© Vanderbilt 2018 86 A6V10276959-d
11.2018
