C
HAPTER
3. M
AINTENANCE
P
ROCEDURES
3-63
02.9628.0010 CONFIDENTIAL
7-Oct-97
STANDOFF
DOUSER LEAVES
DOUSER RING
LEAF NUB SLOT
DFDVW5
#2
#3
#4
#6
#7
#8
#5
#1

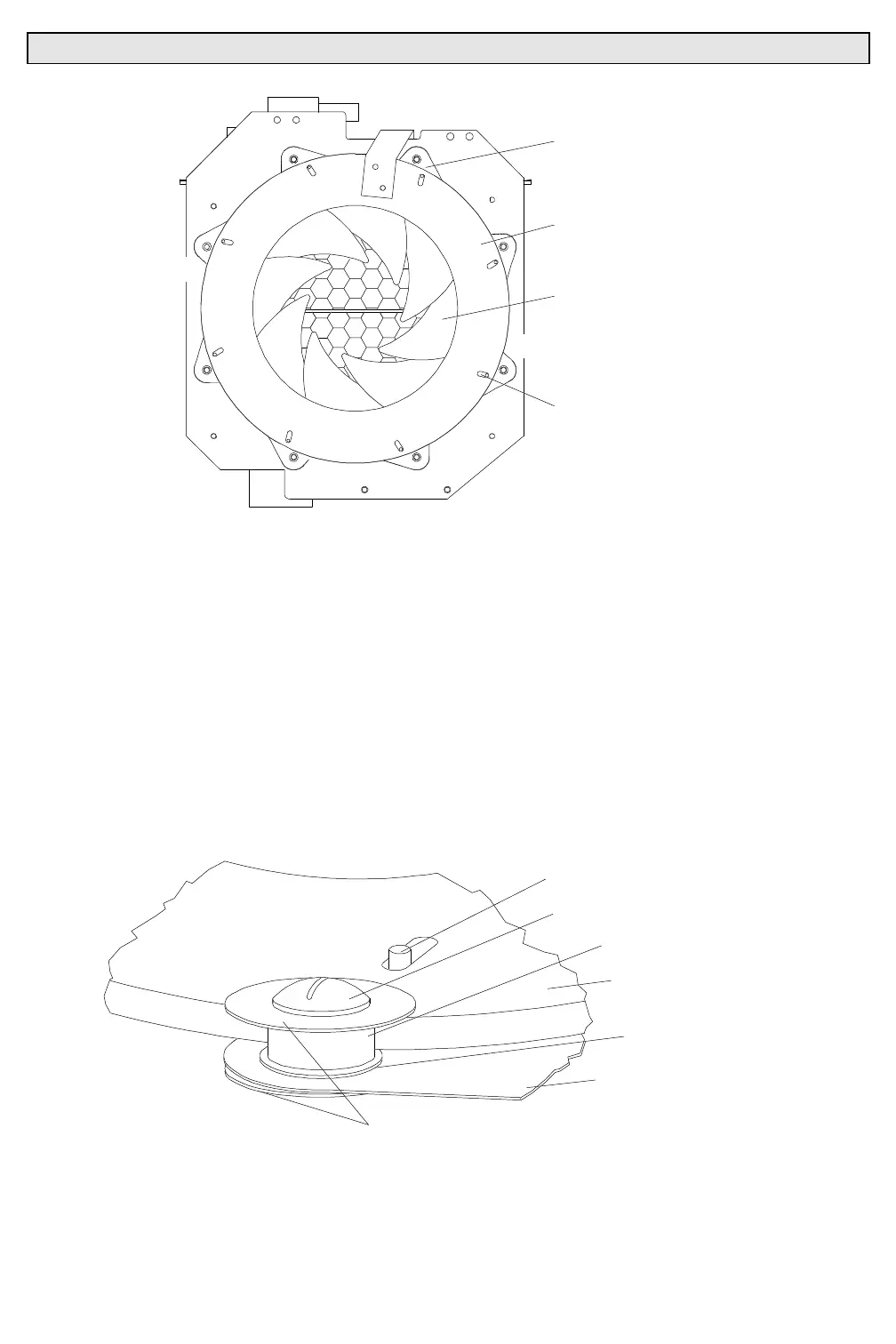

Figure 3-15. Douser Leaves Removal and Replacement
Step 5. Replace douser leaves.
a. Undamaged leaves and washers may be reused.
b. Starting at standoff number 1, moving counterclockwise,
install douser leaves. Leaves on standoffs 2 thru 7 lay partly
on top preceding leaf. Leaf on standoff number 8 rests on
top of leaves on standoffs 1 and 7.
c. Complete bulkhead assembly and installation by doing Steps
2 thru 9 in reverse. Refer to
Figure 3-16
for placement of
douser leaf attachment hardware. Be careful to not clamp
down on 0.35 dia. X 0.010 thick washer.
LEAF NUB
ROLLER
DOUSER LEAF
DOUSER RING
TRUSS HEAD SCREW
0.5 DIA. X 0.010 TH WASHER
RINGDETL
0.35 DIA X 0.010 TH
WASHER
Figure 3-16. Douser Leaf Attachment Hardware Placement
Step 6. Calibrate dashpots. Refer to Douser Dashpot Calibration
paragraph.
