VARILITE VL4 - Dimmer;Magenta;Douser Bulkhead

5-6
V
ARI
*L
ITE
®
-
VL4
W
ASH
L
UMINAIRE
S
ERVICE
M
ANUAL
CONFIDENTIAL 02.9628.0010
7-Oct-97

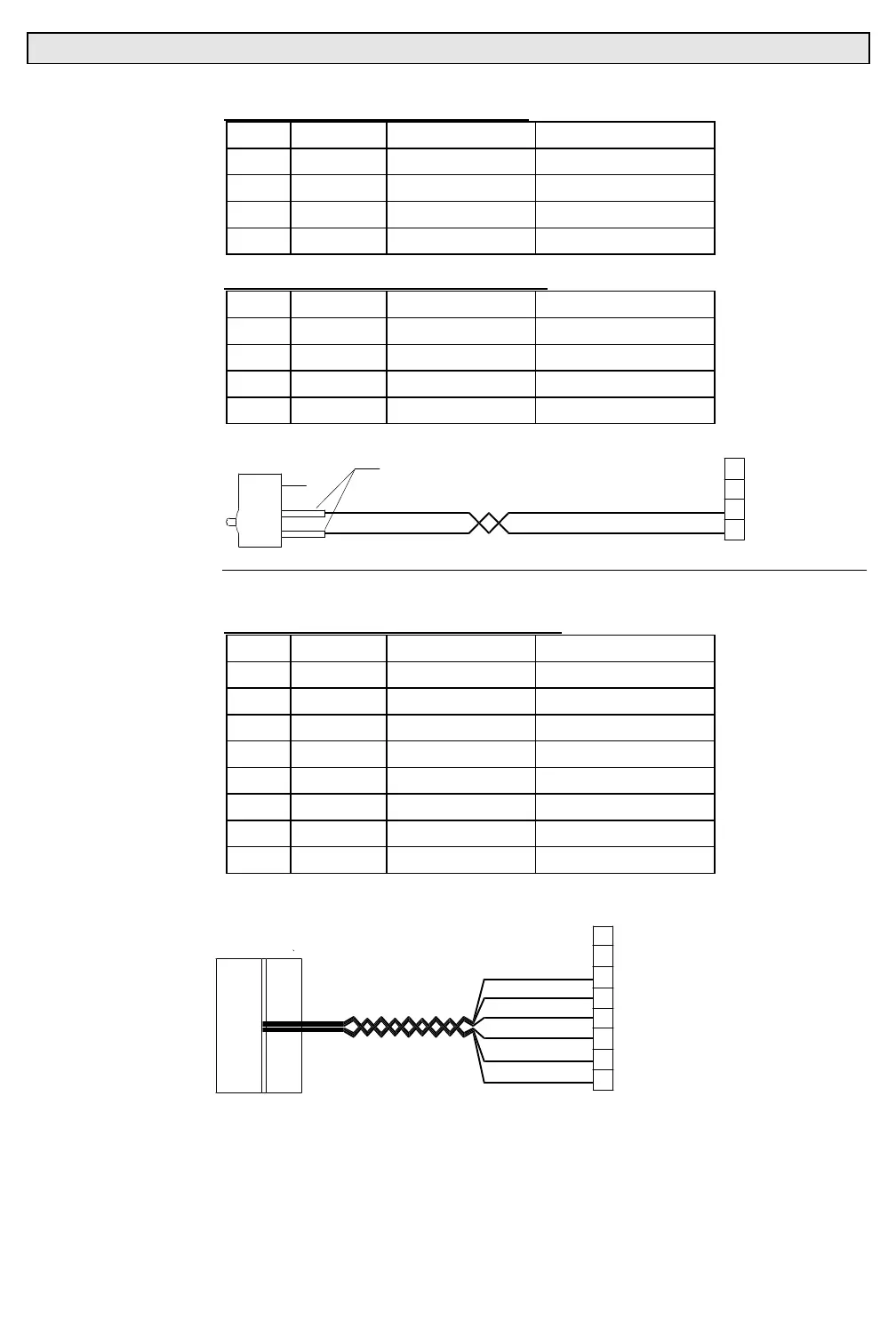

4-Pos MTA Blue Contact Switch
Pos. Wire Wire Size Description
1 N/C - -
2 N/C - -
3 BLU 22 AWG +15V
4 BLU 22 AWG SENS1
4-Pos MTA Amber Contact Switch
Pos. Wire Wire Size Description
1 N/C - -
2 N/C - -
3 BLU 22 AWG +15V
4 BLU 22 AWG SENS2
4-POS MTA CONN.
CONTACT SWITCH
BLU
BLU
4
3
TWISTED PR
HEAT SHRINK
N/C
NC
NO
C
2
1
OPEN-
OPEN-
AMBER:
TO P9 ON YTB
BLUE:
TO P7 ON YTB
5.2.1.2 Dimmer/Magenta/Douser Bulkhead
8-Pos MTA Magenta Stepper Motor
Pos. Wire Wire Size Description
1 N/C - -
2 N/C - -
3 GRN 22 AWG +20V
4 RED 22 AWG +20V
5 BRN 22 AWG MO3A
6 BLK 22 AWG MO3B
7 YEL 22 AWG MO3C
8 ORG 22 AWG MO3D
BRAIDED WIRE
8 PIN MTA CONN.
GRN
RED
BRN
BLK
YEL
ORG
8
7
6
5
4
3
15 STEPPER MOTOR
CAN-STACK
0
2
1
OPEN-
OPEN-
TO P10 ON YTB
