VARILITE VL4 - Page 221

C
HAPTER
5. W
IRING
D
IAGRAMS
5-7
02.9628.0010 CONFIDENTIAL
7-Oct-97

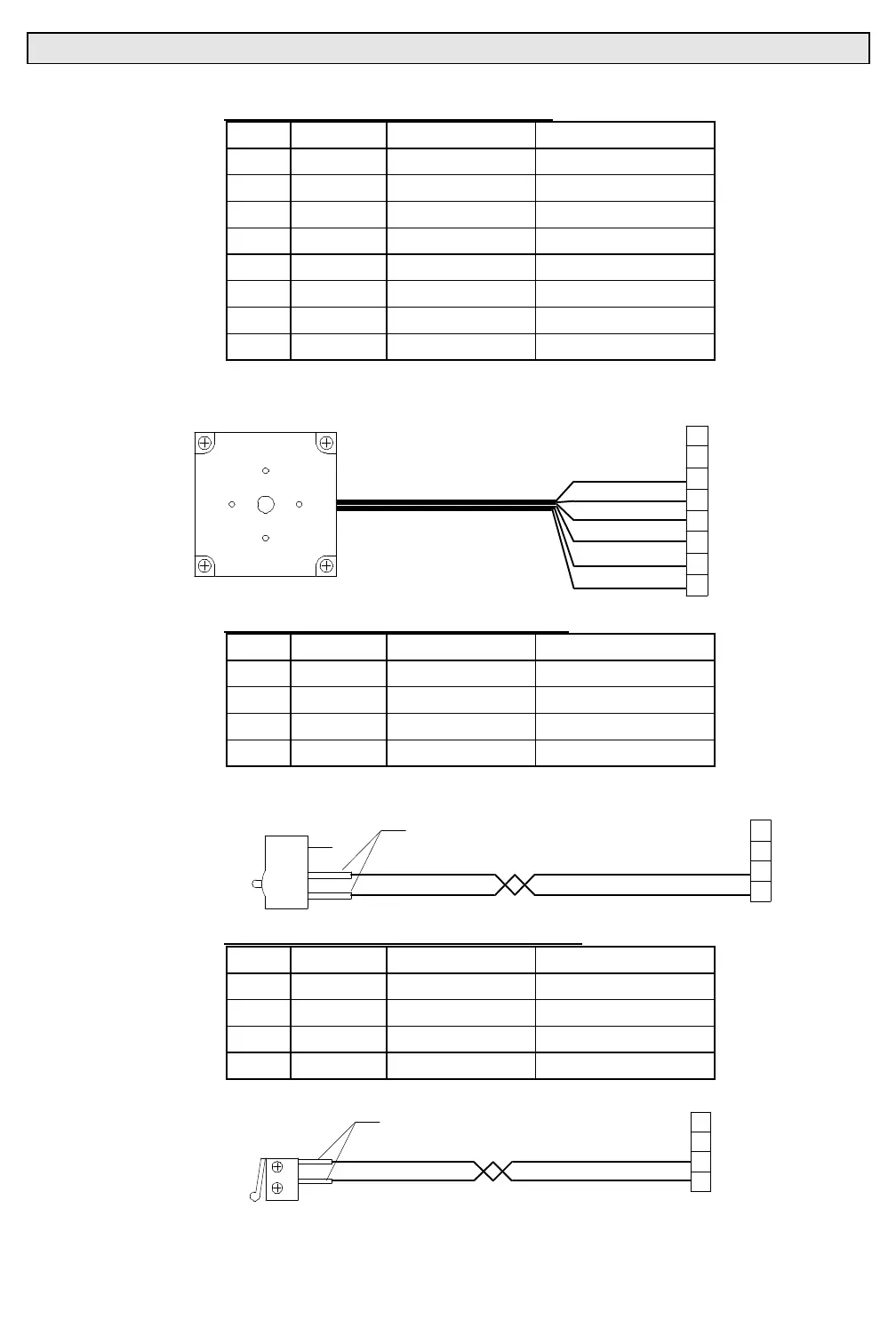

8-Pos MTA Dimmer Stepper Motor
Pos. Wire Wire Size Description
1 N/C - -
2 N/C - -
3 WHT 22 AWG +20V
4 BLK 22 AWG +20V
5 RED 22 AWG MO4A
6 YEL 22 AWG MO4B
7 ORG 22 AWG MO4C
8 BRN 22 AWG MO4D
WHT
BLK
BRN
RED
YEL
ORG
8
7
6
5
4
3
9
0
STEPPER MOTOR
48 OHM
8-POS MTA CONN.
2
1
OPEN-
OPEN-
4-Pos MTA Magenta Contact Switch
Pos. Wire Wire Size Description
1 N/C - -
2 N/C - -
3 BLU 22 AWG +15V
4 BLU 22 AWG SENS1
4-POS MTA CONN.
CONTACT SWITCH
BLU
BLU
4
3
TWISTED PR
HEAT SHRINK
N/C
NC
NO
C
2
1
OPEN-
OPEN-
4-Pos MTA Dimmer Sub Micro Switch
Pos. Wire Wire Size Description
1 N/C - -
2 N/C - -
3 BLU 22 AWG +15V
4 BLU 22 AWG SENS2
VIO
VIO
4
3
4-POS MTA CONN.
SUB MICRO SWITCH
HEAT SHRINK
TWISTED PR
- N/C
2
1
OPEN-
OPEN-
