1.2.1 Dimensions and Weight
The
VL4
luminaire weight is 38 pounds (17.24 kg).
Note
: Refer to
Figure 2-1
in Chapter 2 for luminaire clearance and truss
hook hanging dimensions.

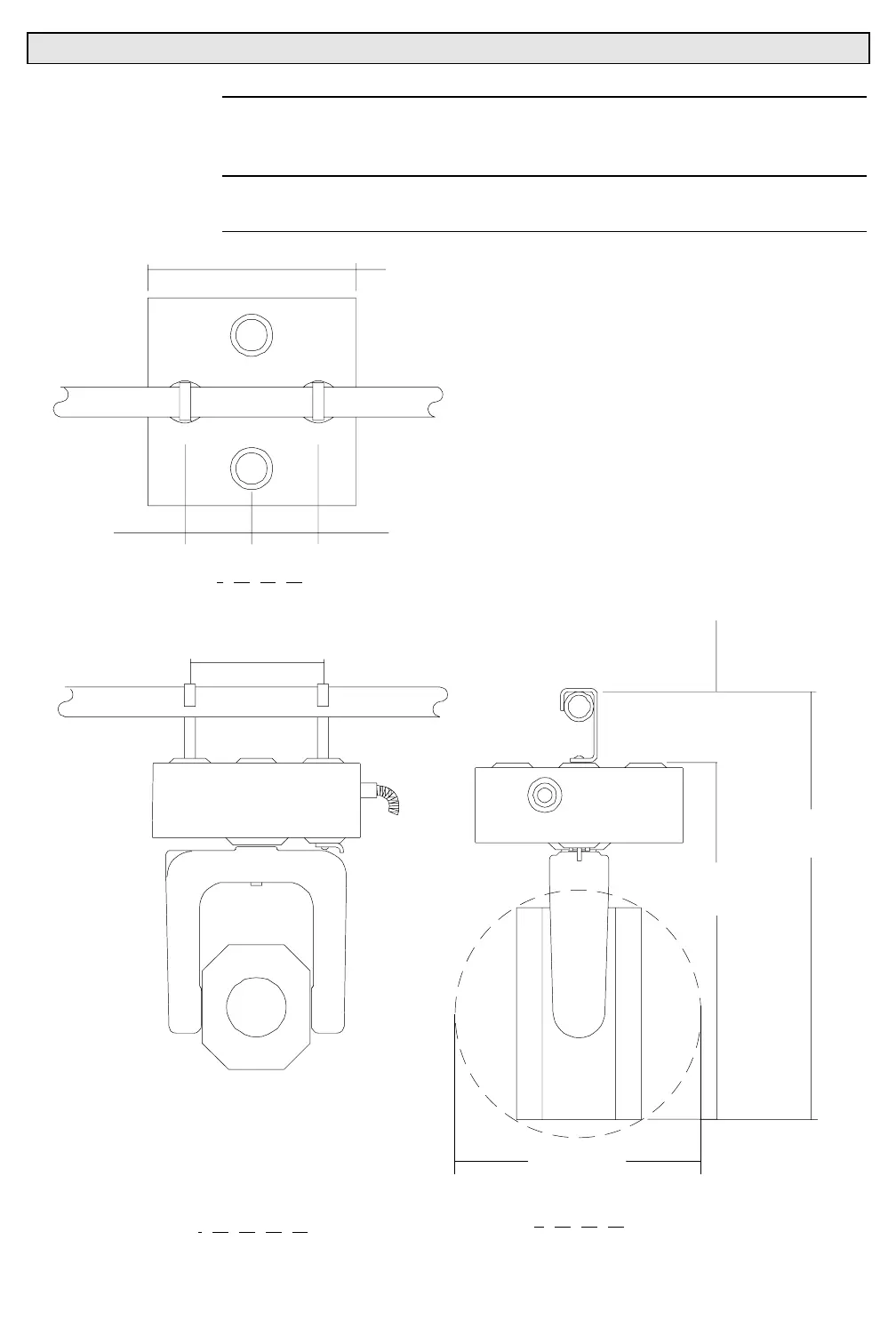

14.0 in
4.5 in
4.5 in
9.0 in
4.75 in
28.85 in
24.1 in
356 mm
114 mm
114 mm
229 mm
121 mm
612 mm
733 mm
TOP VIEW
FRONT VIEW
SIDE VIEW
17.26 in
438 mm
