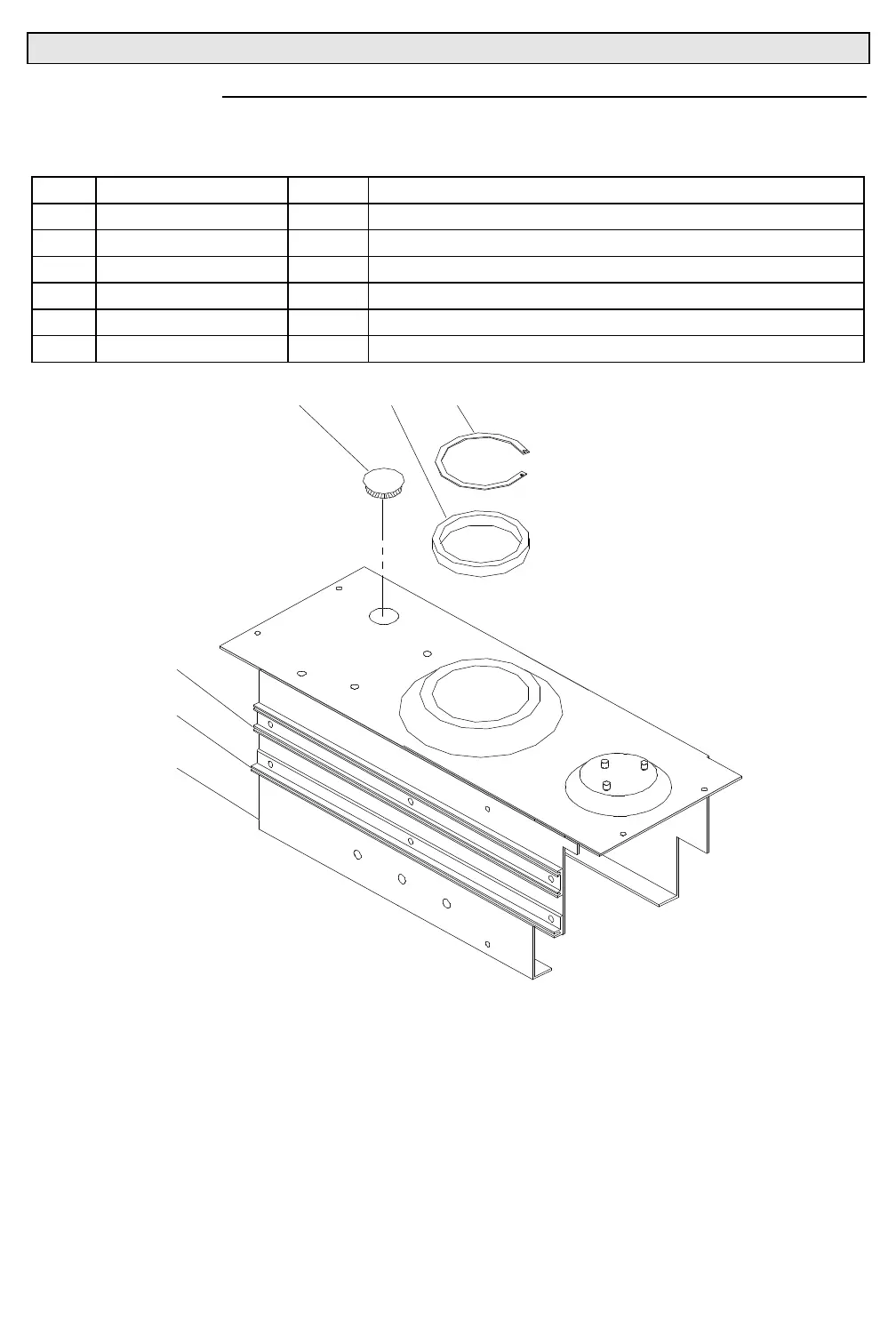

4.2.2.12 Assy, VL4 Yoke Bearing Frame
22.9628.0057
NO. PART NO. QTY DESCRIPTION
1 10.9628.0057 1 EA FRAME, BEARING, YOKE
2 10.9628.0094 1 EA GUIDE, CARD, INSIDE
3 10.9628.0168 2 EA GUIDE, CARD, MODIFIED PCG-3, LVS
4 53.6506.0001 2 EA BEARING, TORQUE TUBE,2.6250OD X 2.0620ID
5 54.1206.0001 2 EA RING, RETAINING 2.521" ID
6 55.6662.0001 1 EA HOLE PLUG 3/4"BRASS W/BLK OXIDE
6
2
1
45
3
