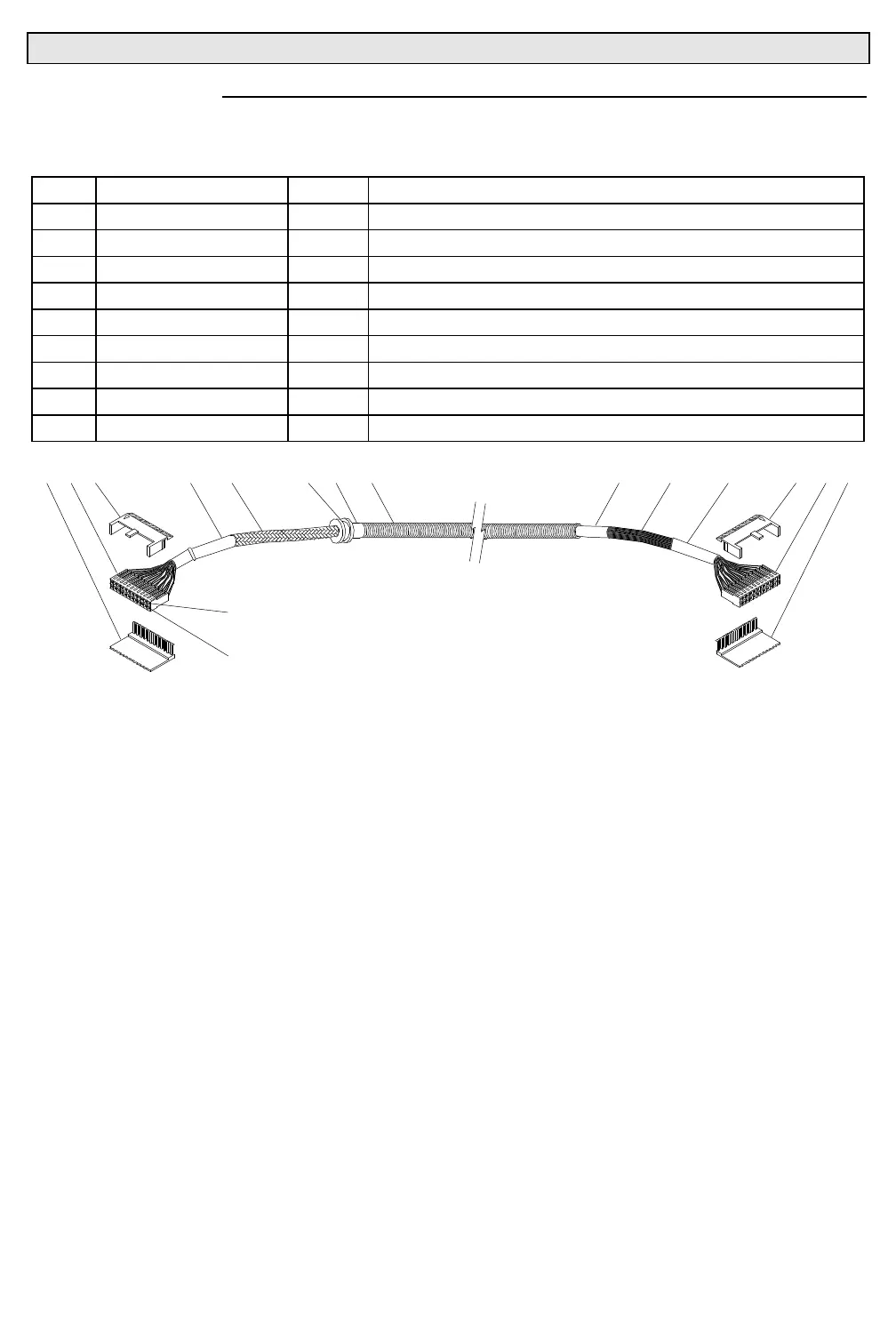

4.2.2.13 Cable Assy, Yoke “A” 38 Inch (
VL4
)
25.9628.0145
NO. PART NO. QTY DESCRIPTION
1 52.6226.0001 2 EA COVER, BACK MT 26POS 30-26AWG
2 52.6226.0002 2 EA COVER, EJECT STYLE MT 26POS 26-22AWG
3 52.6228.0001 2 EA CONN HOUSING, MT RECEPT 26POS
4 55.2182.0001 1 EA GROMMET
5 55.2197.0001 4 IN HEAT SHRINK 3/8" BLACK
6 55.2197.0002 3 IN HEAT SHRINK 3/8" YELLOW
7 55.6699.0003 5 IN SLEEVING, POLY EXP BRAIDED 1/2"NOM.DIA.
8 55.9628.0175 1 EA SPRING, YOKE CABLE, 24" (VL4)
9 73.7083.0001 38 IN CBL, 24AWG 26COND NO JCKT/VL4 YOKE
231 6 7 45 8 5 6 1 32
SIDE A
PIN 1
SIDE B
PIN 1
9
