VARILITE VL4 - Pan Motor Connections

5-20
V
ARI
*L
ITE
®
-
VL4
W
ASH
L
UMINAIRE
S
ERVICE
M
ANUAL
CONFIDENTIAL 02.9628.0010
7-Oct-97

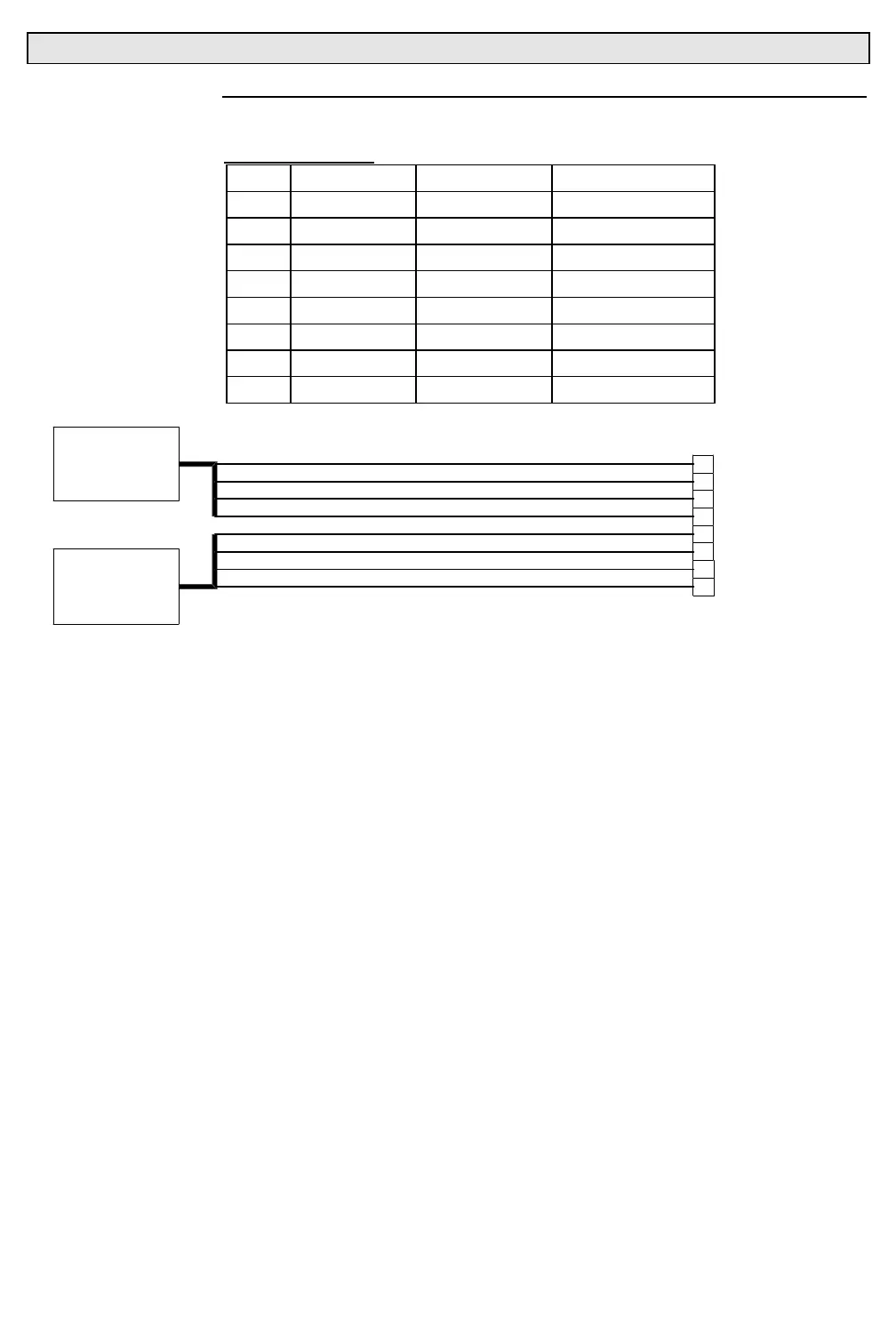

5.2.12 Pan Motor Connections (22.4001.0001)
8-Pos MTA-100
Pos. Wire Wire Size Description
1 BLK 22 AWG PAN ENC-A
2 YEL 22 AWG PAN ENC-B
3 WHT 22 AWG GND
4 RED 22 AWG +5V
5 WHT 22 AWG PAN TACH+
6 BLU 22 AWG PAN TACH-
7 RED 22 AWG PAN V+
8 BLK 22 AWG GND
1
2
3
4
5
6
7
8
BLK 22AWG
YEL 22AWG
WHT 22AWG
RED 22AWG
WHT 22AWG
BLU 22AWG
RED 22AWG
BLK 22AWG
ENCODER
MOTOR
TO P7 ON MB
8-POS MTA100 CONN.
