VARILITE VL4 - Input Connector Wire Cable

C
HAPTER
5. W
IRING
D
IAGRAMS
5-11
02.9628.0010 CONFIDENTIAL
7-Oct-97
5.2.2

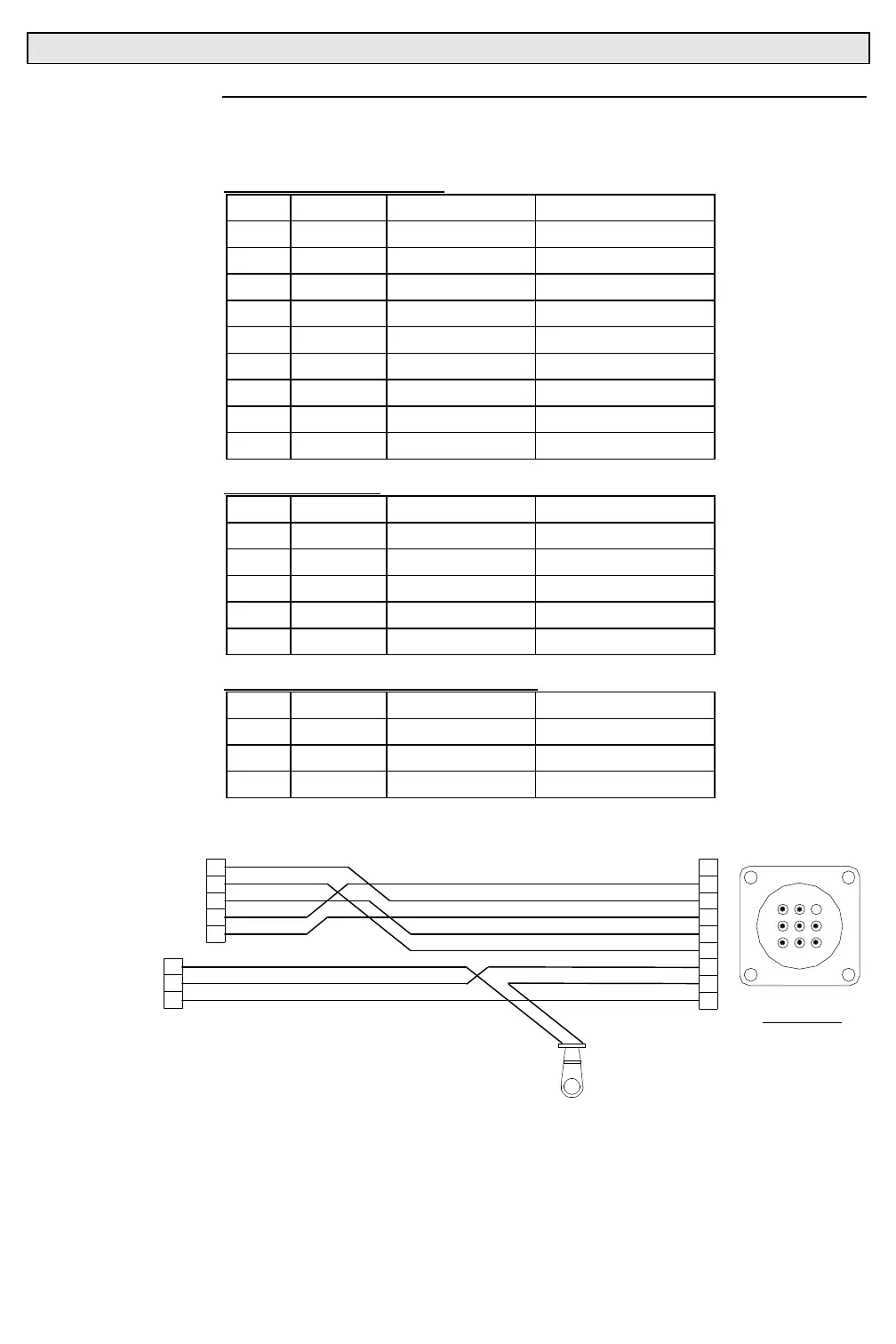

VL4
Input Connector Wire Cable
(25.9628.0150)
9-Pos CPC Receptacle
Pos. Wire Wire Size Description
1 N/C - -
2 RED 22 AWG BROADCAST +
3 GRN 22 AWG SIGNAL GND.
4 BLK 22 AWG BROADCAST -
5 GRY 22 AWG REPLY -
6 WHT 22 AWG REPLY +
7 WHT 16 AWG AC LO
8 GRN 16 AWG EARTH GND
9 BLK 16 AWG AC HI
5-Pos MTA Plug
Pos. Wire Wire Size Description
1 GRN 22 AWG SIGNAL GND.
2 WHT 22 AWG REPLY +
3 GRY 22 AWG REPLY -
4 RED 22 AWG BROADCAST +
5 BLK 22 AWG BROADCAST -
3-Pos MATE-N-LOK Socket Plug
Pos. Wire Wire Size Description
1 GRN 16 AWG EARTH GND.
2 WHT 16 AWG AC LO
3 BLK 16 AWG AC HI
OPEN-
RED 22AWG 6"
GRN 22AWG 6"
BLK 22AWG 6"
GRY 22AWG 6"
WHT 22AWG 6"
WHT 16AWG 7"
GRN 16AWG 2"
BLK 16AWG 7"
GRN 16AWG 9"
1
2
3
1
2
3
4
5
1
2
3
4
5
6
7
8
9
9-POS CPC RECEPTACLERED 5-POS MTA-100 PLUG
3-POS MATE-N-LOK PLUG
TO P9 ON MB
TO P1 ON VSB
9 POS CONN.
REAR VIEW
1
4
7
3
6
9
