2.1.1.2 Clearances
Note
: The
VL4
luminaire requires 3-1/2 inches (8.89 cm) clearance
between the chassis assemblies of adjacent luminaires.
14.0 in
4.5 in
4.5 in
9.0 in
4.75 in
28.85 in
24.1 in
356 mm
114 mm
114 mm
229 mm
121 mm
612 mm
733 mm
TOP VIEW
FRONT VIEW
SIDE VIEW
17.26 in
438 mm

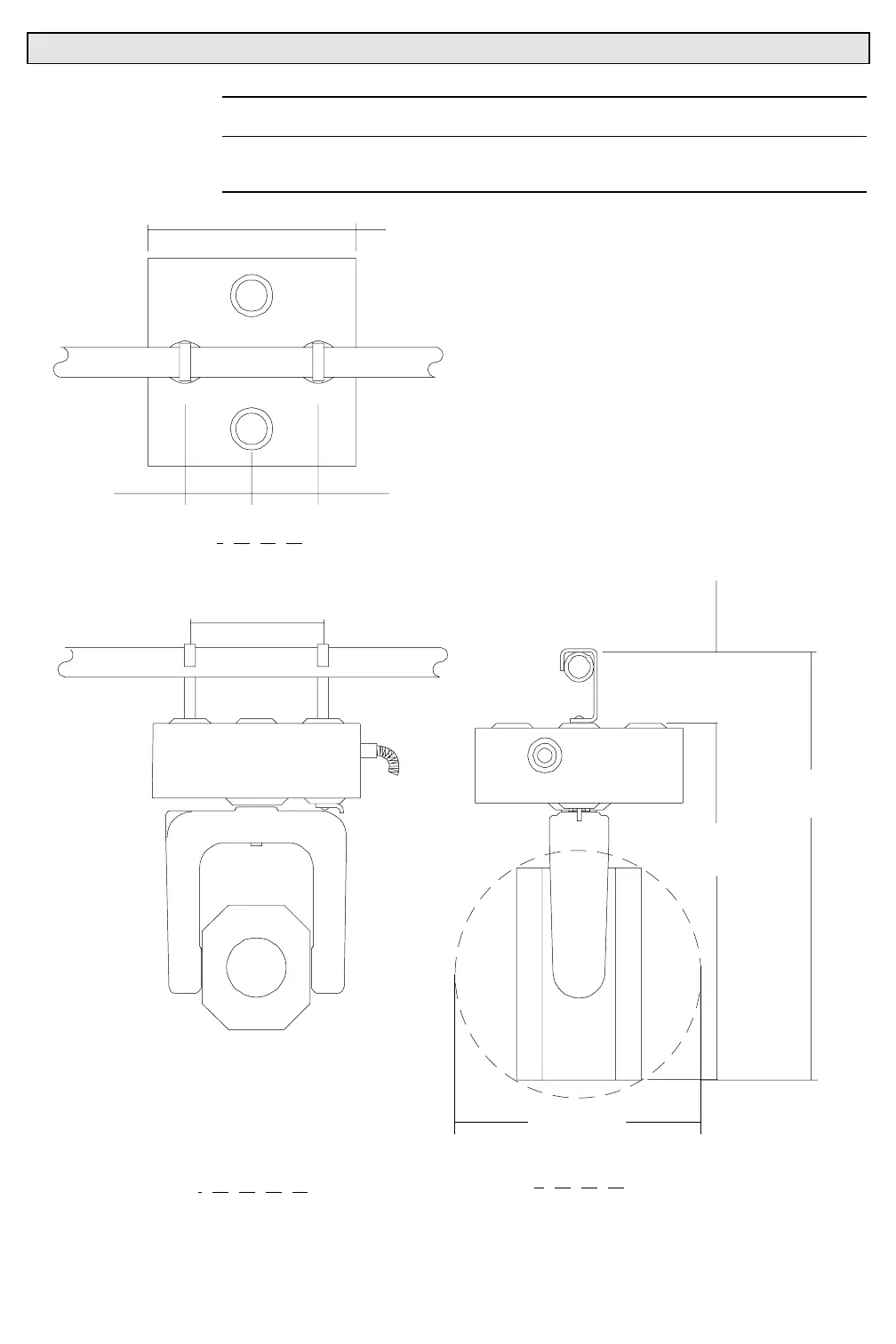

Figure 2-1.
VL4
Luminaire Hanging Clearances
