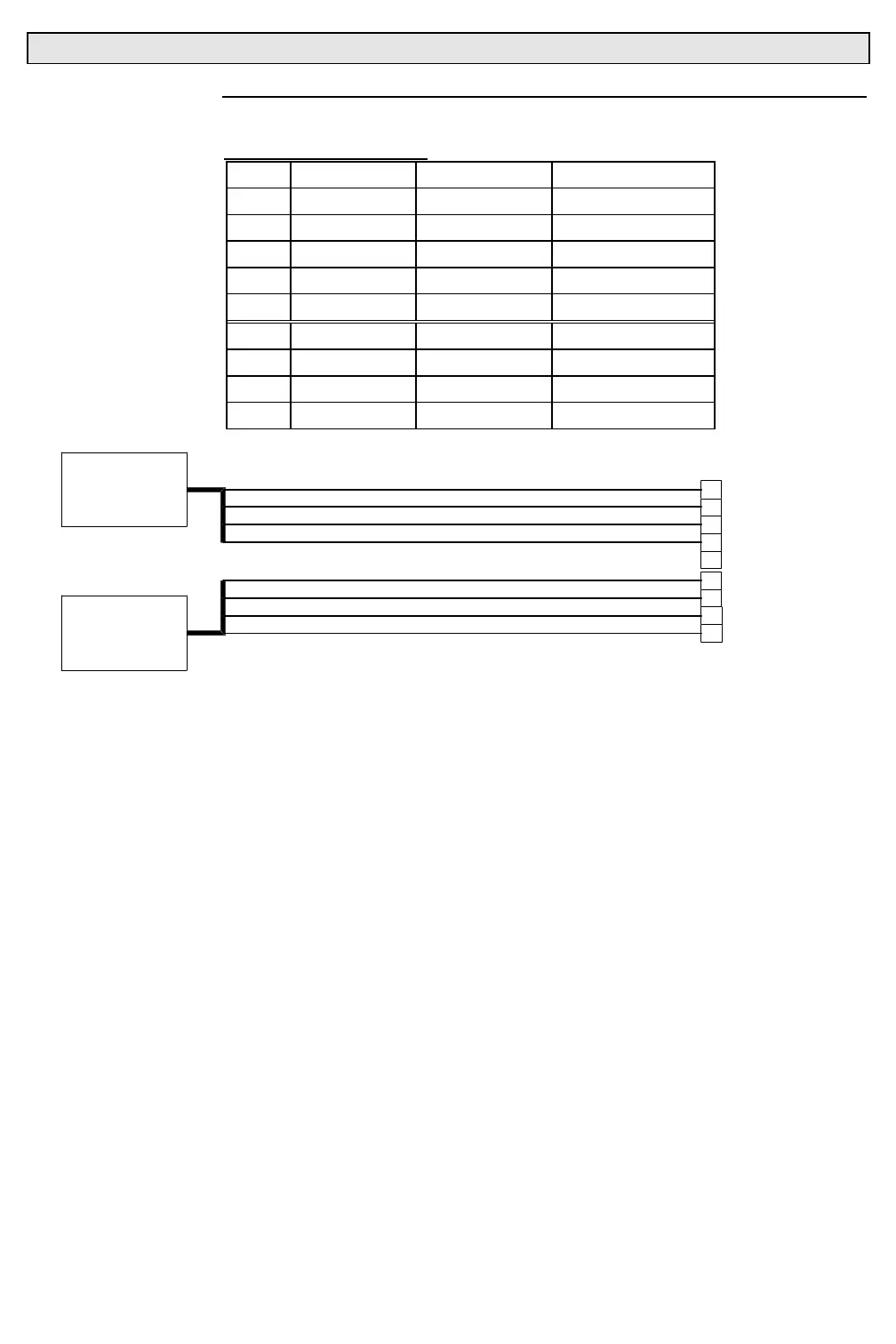

5.2.1.5 Tilt Motor Connections
5 & 4-Pos MTA-100’s
Pos. Wire Wire Size Description
1 YEL 22 AWG TILT ENC-B
2 BLK 22 AWG TILT ENC-A
3 WHT 22 AWG GND
4 RED 22 AWG +5V
5 N/C - -
1 WHT 22 AWG TILT TACH-
2 BLU 22 AWG TILT V+
3 RED 22 AWG GND
4 BLK 22 AWG GND
1
2
3
4
YEL 22AWG
BLK 22AWG
WHT22AWG
RED 22AWG
ENCODER
1
2
3
4
WHT 22AWG
BLU 22AWG
RED 22AWG
BLK 22AWG
MOTOR
5
OPEN-
TO P3 ON YTB
TO P4 ON YTB
