VARILITE VL4 - Rear Bulkhead and Bulb

C
HAPTER
5. W
IRING
D
IAGRAMS
5-9
02.9628.0010 CONFIDENTIAL
7-Oct-97

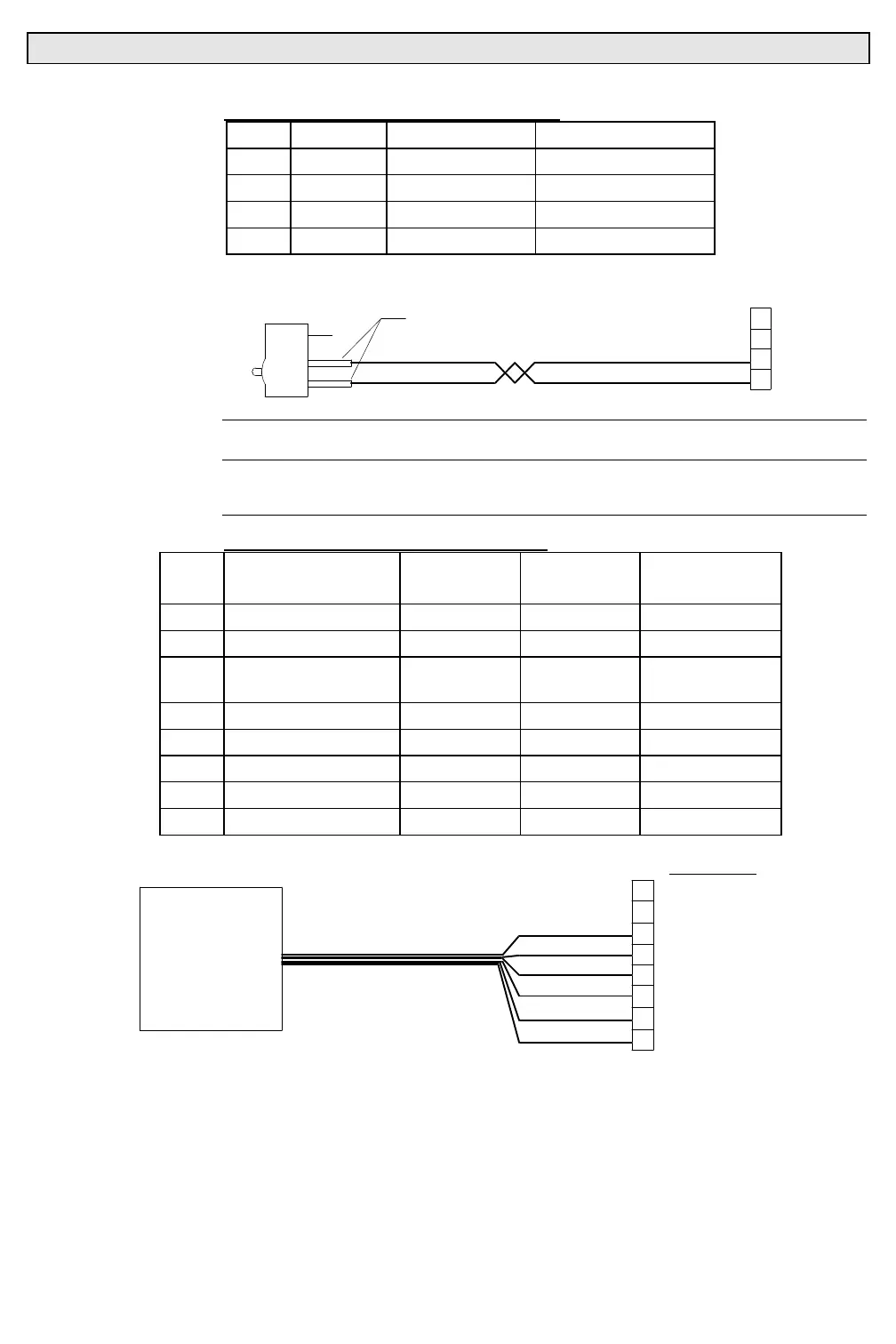

4-Pos MTA Diffuser Contact Switch
Pos. Wire Wire Size Description
1 N/C - -
2 N/C - -
3 BLU 22 AWG +15V
4 BLU 22 AWG SENS5
4-POS MTA CONN.
CONTACT SWITCH
BLU
BLU
4
3
TWISTED PR
HEAT SHRINK
N/C
NC
NO
C
2
1
OPEN-
OPEN-
5.2.1.4 Rear Bulkhead and Bulb
Note
: The linear actuator motor used in this assembly is manufactured by
two different manufacturers. Use the applicable pin-wire code.
8-Pos MTA Focus Linear Actuator
Pos. Wire
Version 1
Wire
Version 2
Wire Size Description
1 N/C N/C - -
2 N/C N/C - -
3 WHT
(from blue/red group)
GRN 22 AWG +20V
4 WHT RED 22 AWG +20V
5 BLK BRN 22 AWG MO6A
6 RED BLK 22 AWG MO6B
7 GRN YEL 22 AWG MO6C
8 BLU ORG 22 AWG MO6D
GRN
RED
ORG
BRN
BLK
YEL
8
7
6
5
4
3
LINEAR ACTUATOR
8-POS MTA CONN.
2
1
OPEN-
OPEN-
ALT. PINOUT
WHT
WHT
BLK
GRN
BLU
RED
OPEN
OPEN
