VARILITE VL4 - Transformer;Capacitor LK3 Cable

5-12
V
ARI
*L
ITE
®
-
VL4
W
ASH
L
UMINAIRE
S
ERVICE
M
ANUAL
CONFIDENTIAL 02.9628.0010
7-Oct-97
5.2.3
VL4

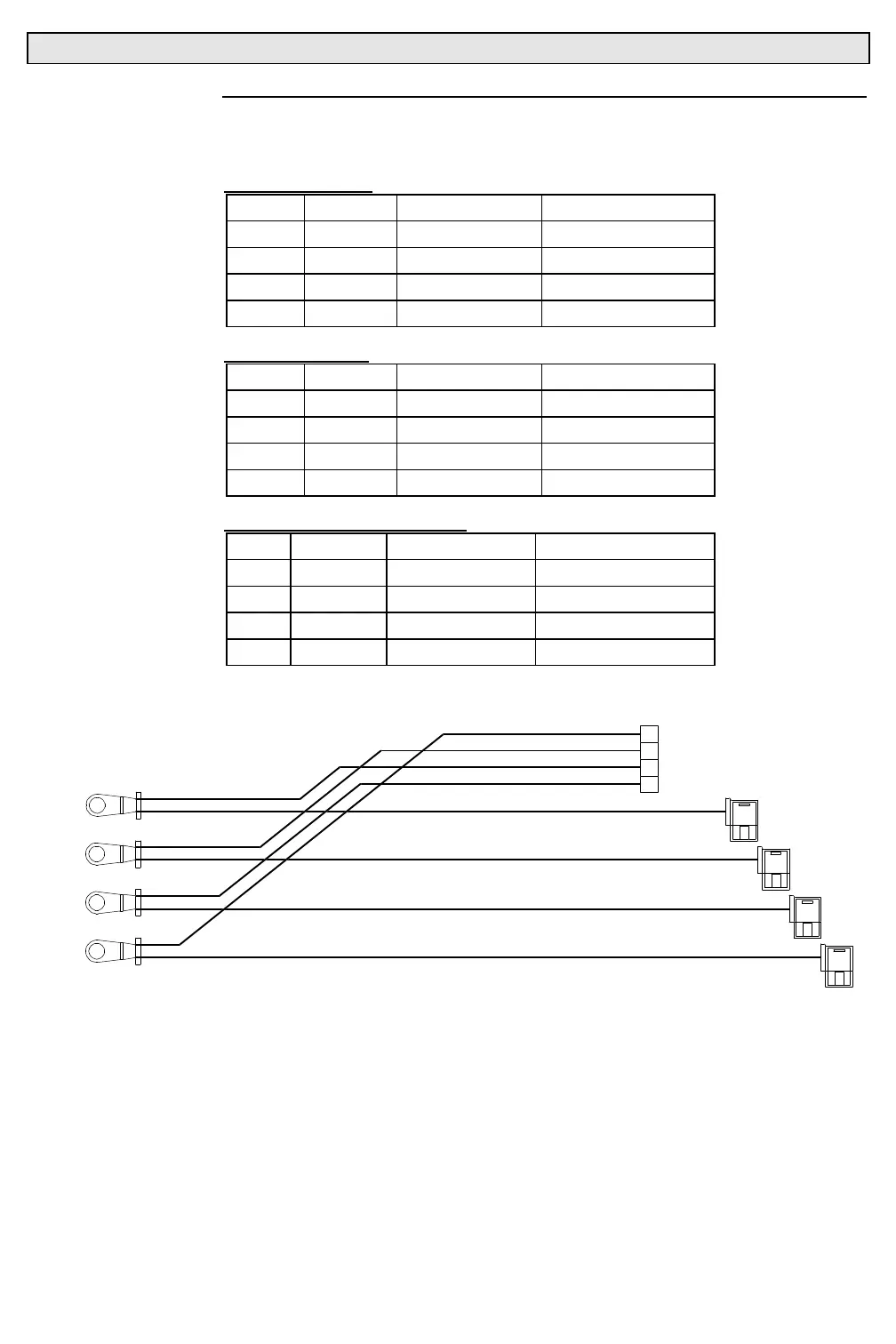

Transformer/Capacitor LK3 Cable
(25.9628.0156)
1/4 Inch Faston
Term. Wire Wire Size Description
1 ORG 16 AWG +10V
2 BLU 16 AWG +30V
3 YEL 16 AWG -30V
4 GRN 16 AWG GND
Ring Terminals
Term. Wire Wire Size Description
1 ORG 16 AWG +10V
2 BLU 16 AWG +30V
3 YEL 16 AWG -30V
4 GRN 16 AWG GND
4-Pos MATE-N-LOK Plug
Pos. Wire Wire Size Description
1 ORG 16 AWG +10V
2 BLU 16 AWG +30V
3 YEL 16 AWG -30V
4 GRN 16 AWG GND
ORG 16AWG 27"
GRN 16AWG 27"
BLU 16AWG 26.5"
YEL 16AWG 26.5"
GRN 16AWG 19.5"
YEL 16AWG 23"
BLU 16AWG 21.5"
ORG 16AWG 19.5"
1
2
3
4
4-POS MATE-N-LOK PLUG
RING TERMINALS
1/4" FASTON
3
2
4
1
3
2
4
1
TO P8 ON MB
