VARILITE VL4 - Connectorized Transformer Connections

C
HAPTER
5. W
IRING
D
IAGRAMS
5-13
02.9628.0010 CONFIDENTIAL
7-Oct-97
5.2.4
VL4

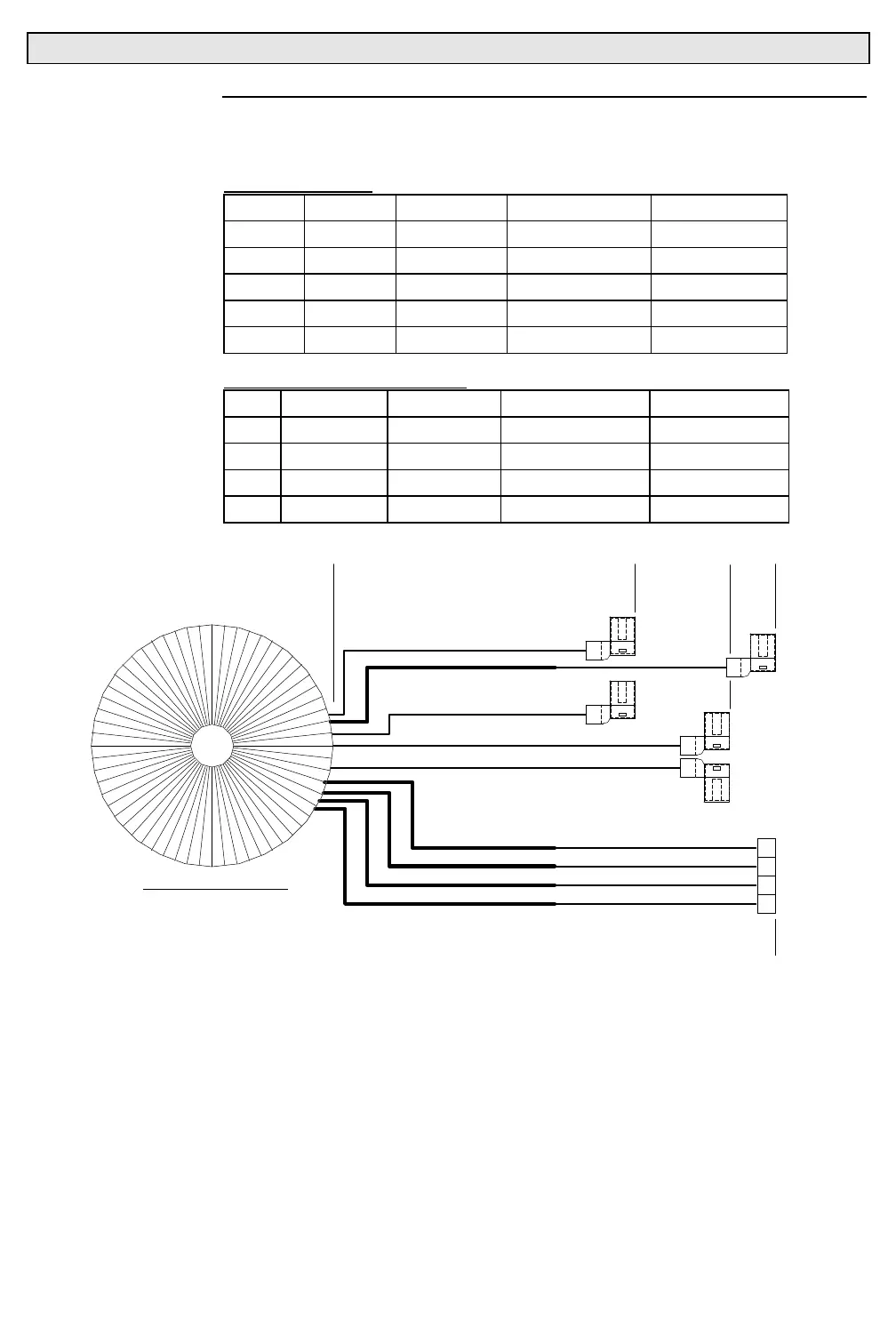

Connectorized Transformer Connections
(23.9628.0159)
1/4 Inch Faston
Term. Wire Jacket Wire Size Description
1 RED N/A 16 AWG Y1 (+/-30V)
2 RED YEL 16 AWG Y1 (+/-30V)
3 RED N/A 16 AWG C.T. GND
4 YEL N/A 16 AWG Y1 (+/-30V)
5 YEL N/A 16 AWG Y1 (+/-30V)
4-Pos MATE-N-LOK Plug
Pos. Wire Jacket Wire Size Description
1 WHT BLK 16 AWG X2
2 BLK WHT 16 AWG X3
3 WHT WHT 16 AWG X4 LO
4 BLK BLK 16 AWG X1 HI
TRANSFORMER
1
2
3
4
RED
YEL/RED
RED
6.5"
5"
4"
0
YEL
YEL
BLK/WHT
WHT/BLK
WHT/WHT
BLK/BLK
1
2
3
4
5
6.5"
4-POS MATE-N-LOK
1/4" FASTON FLAG
TO P3 ON VSB
