VARILITE VL4 - Page 228

5-14
V
ARI
*L
ITE
®
-
VL4
W
ASH
L
UMINAIRE
S
ERVICE
M
ANUAL
CONFIDENTIAL 02.9628.0010
7-Oct-97
5.2.5
VL4

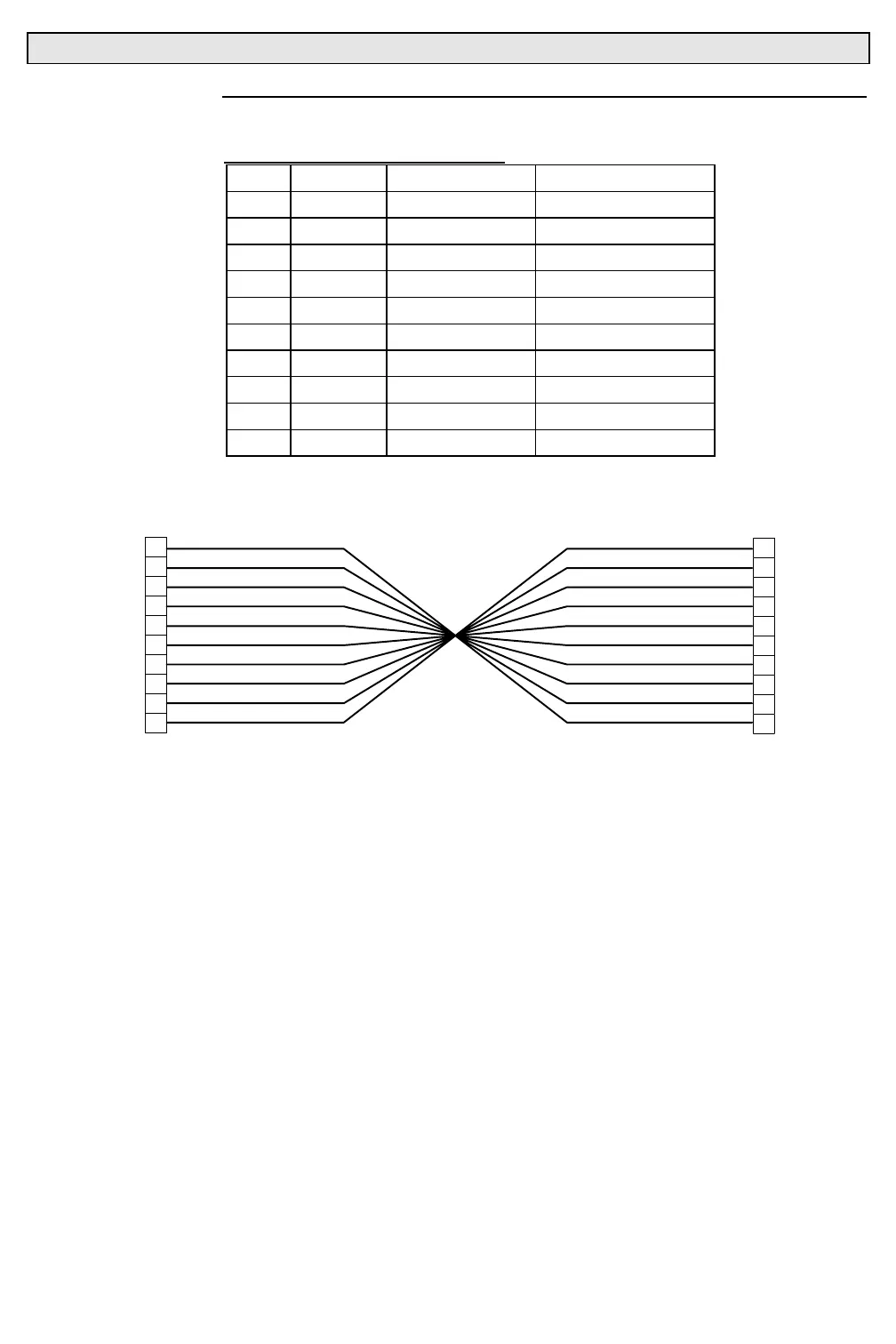

LK1 Cable (25.9628.0152)
Two 10-Pos MTA Connectors
Pos. Wire Wire Size Description
1 YEL 22 AWG START
2 GRN 22 AWG EARTH GND.
3 ORG 22 AWG I PRESENT
4 WHT 22 AWG -15V
5 GRY 22 AWG SHORT
6 BLU 22 AWG +15V
7 BRN 22 AWG LPS OVER TMP
8 RED 22 AWG +20V
9 BLK 22 AWG LAMP ON
10 PRP 22 AWG INTENSITY
RED 10-POS MTA CONN.
YEL 22 AWG 8"
GRN 22 AWG 8"
ORG 22 AWG 8"
WHT 22 AWG 8"
GRY 22 AWG 8"
BLU 22 AWG 8"
BRN 22 AWG 8"
RED 22 AWG 8"
BLK 22 AWG 8"
PRP 22 AWG 8"
1
2
3
4
5
6
7
8
9
10
10
9
8
7
6
5
4
3
2
1
RED 10-POS MTA CONN.
TO P4 ON VSB
TO P6 ON MB
