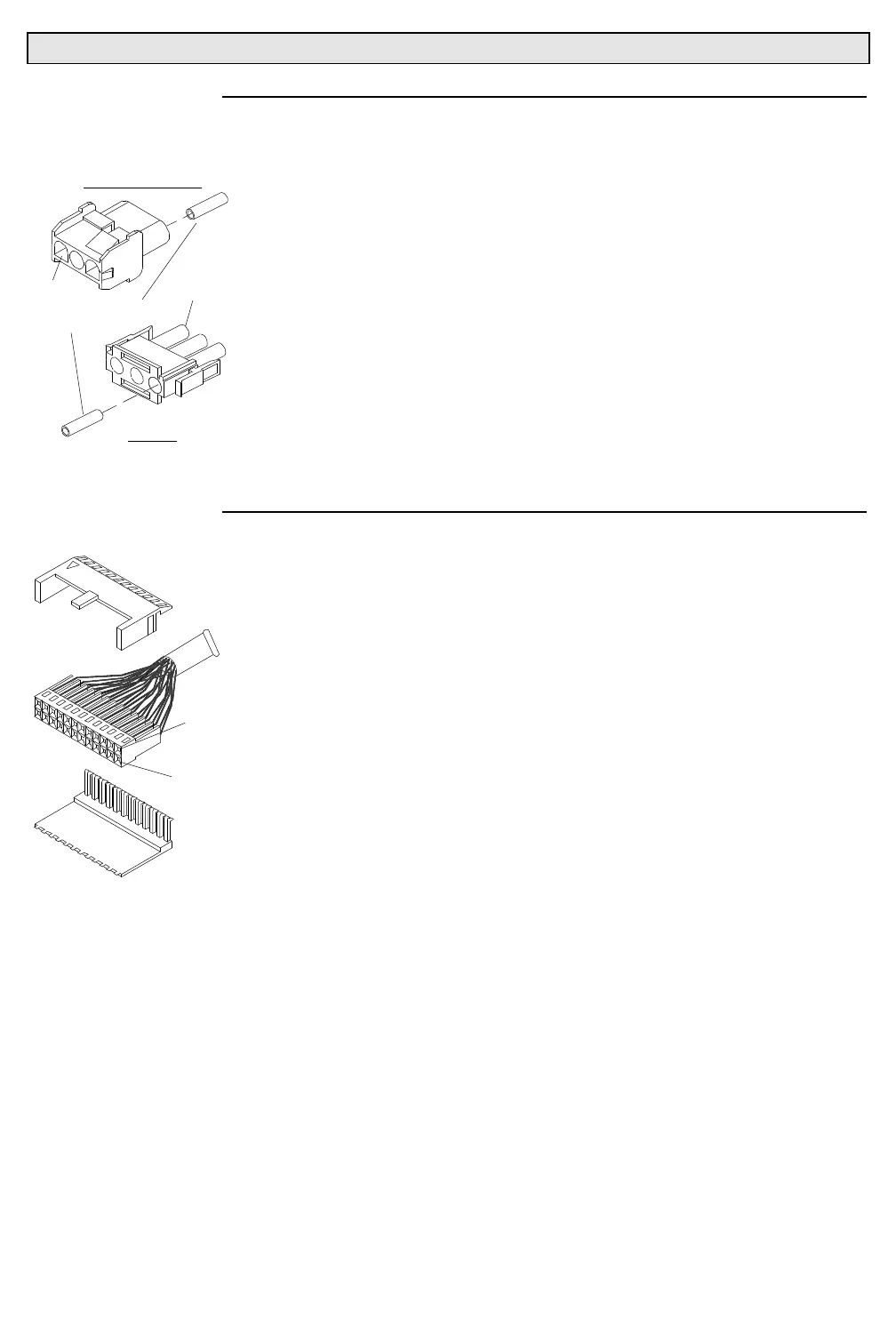

5.1.3 Mate-N-Lok
CONNECTOR
PIN
CON_MNLK
RECEPTACLE
PLUG
POS. 1
POS. 1
Mate-N-Lok connectors are used to connect internal wire harnesses.
Connector pins are installed on the wires and the wires and connector
pins are inserted into the Mate-N-Lok plugs or receptacles. Plugs and
receptacles may be free (as shown) or PC board mounted. Although a
three position connector is shown, the
VL4
luminaire uses three and
four position connectors.
5.1.4 MT
SIDE A
PIN 1
SIDE B
PIN 1
MT connectors are used to connect wire cables to PC boards. The
black MT connector has 26 positions divided into an A and B side.
Wires are installed from each side and protected with two covers. The
illustration shows pin one for sides A and B, and covers.
