VARILITE VL4 - Parts Breakdown; Hooks and Covers

C
HAPTER
4. I
LLUSTRATED
P
ARTS
B
REAKDOWN
4-5
02.9628.0010 CONFIDENTIAL
7-Oct-97

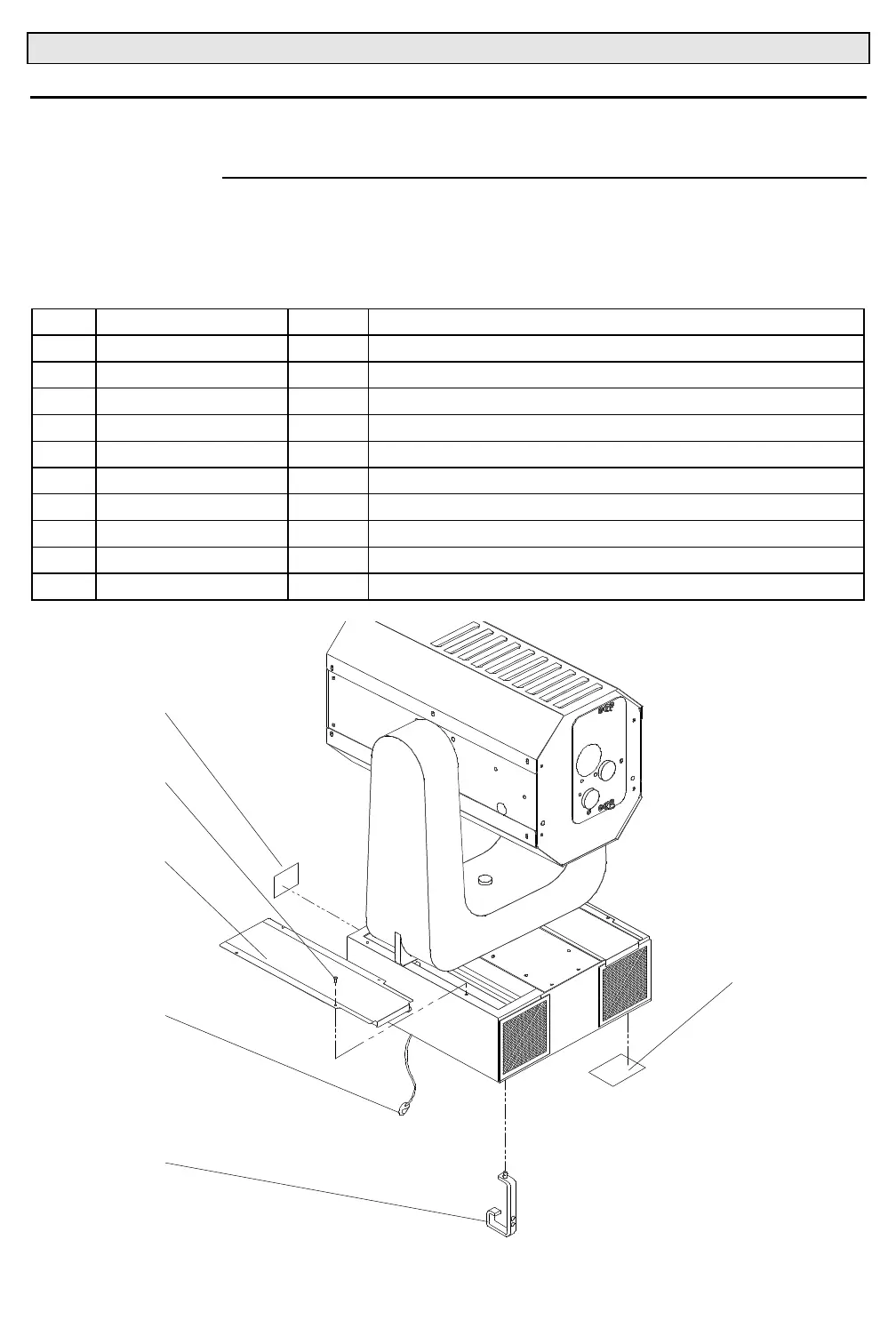

4.2 Parts Breakdown
4.2.1 Hooks and Covers
4.2.1.1 Assy, VL4 Hooks and Covers
22.9628.0242
NO. PART NO. QTY DESCRIPTION
1 04.3001.0004 1 EA LAMP ID TAG, VL4
2 04.9628.0246 1 EA LABEL, INPUT RATING -VL4
3 10.9628.0128 2 EA COVER, TOP, CHASSIS
4 22.9620.0194 1 EA ASSY, LAMP SAFETY CABLE
5 22.9620.0217 2 EA ASSY, TRUSS HOOK, 200S
12.9620.0093 1 EA ASSY, TRUSS HOOK
52.8207.0001 1 EA PIN, CROSS FOR #7 Q F
53.6505.0002 1 EA BOLT, 3/8-16X1-1/2 BLK WING
55.6632.0001 1 EA WASHER, TRUSS HK BRASS .016X.997ODX.364ID
6 52.6524.0002 8 EA SCREW, 6-32X5/16"PPB
2
6
3
4
5
1
