3-68
V
ARI
*L
ITE
®
-
VL4
W
ASH
L
UMINAIRE
S
ERVICE
M
ANUAL
CONFIDENTIAL 02.9628.0010
7-Oct-97
4-40X1"PPZ SCREW
#4 FLAT WASHER
LAMP RETAINER CLIP
4-40X5/16"PPZ SCREW
LAMP WIRES
4-40 KEPS NUT
SERIES 30 CONNECTOR
CONNECTOR MOUNTNG
BRACKET

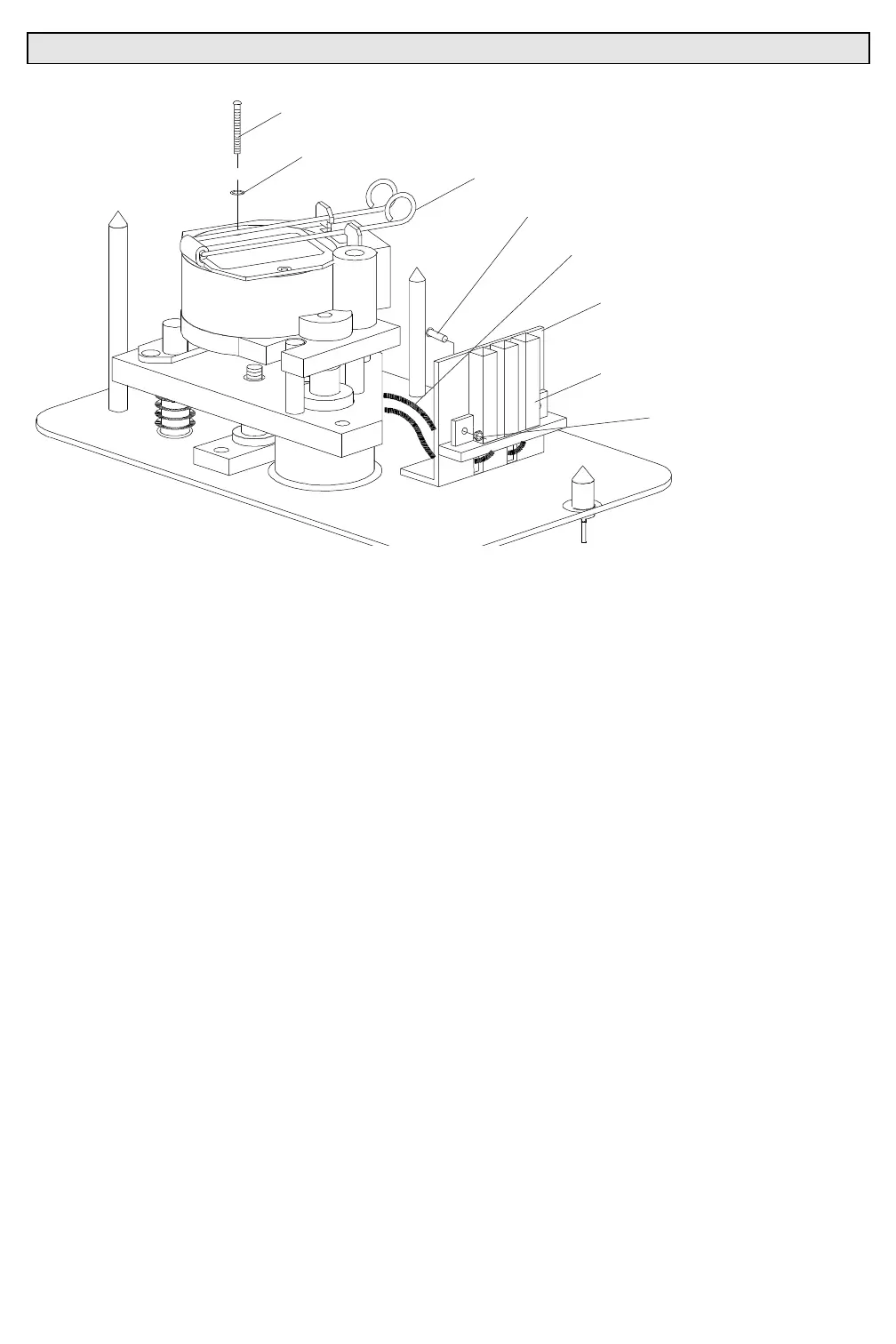

Figure 3-20. Lamp Socket Removal and Replacement
Step 6. Disconnect socket wires and remove socket.
a. At 30 series connector, while using 1/4 inch open end
wrench to hold 4-40 KEPS nuts, remove two
4-40x5/16"PPZ screws and 4-40 KEPS nuts that secure
series 30 connector to lamp wire connector bracket.
b. Using #1 slotted screwdriver, push pins 1 and 3 out of
series 30 connector.
c. At lamp retainer, remove two 4-40x1"PPZ screws and #4
flat washers that secure retainer to lamp socket and remove
retainer and lamp socket.
Step 7. Replace lamp socket by doing Steps 2 thru 6 in reverse.
