26-PIN BLACK
LOCATED ON
CONNECTORS
REAR OF PCB
YTBVW1
6-32X5/16"PPB
SCREW

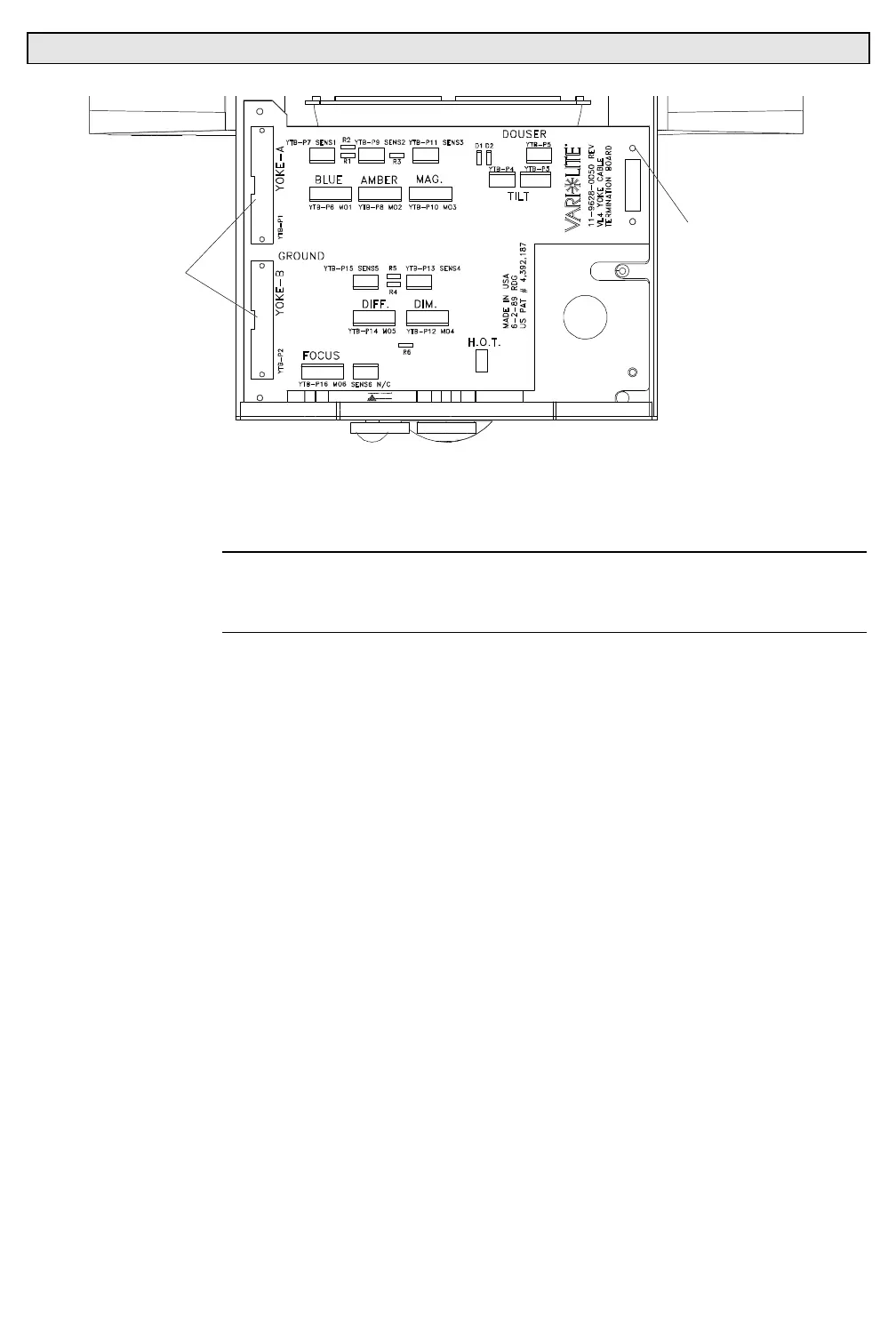

Figure 3-22. Yoke Termination Board Removal and Replacement
Step 5. Replace yoke termination board by doing Steps 2 thru 4 in
reverse.
Note
: 26-pin connector with blue heat shrink is connected to header
marked YOKE B (Blue) and 26-pin connector with yellow heat shrink is
connected to header marked YOKE A (Amber).
