MUR 1550/1560
RECTIFIER
HSVW
TO-3 INSULATOR
6-32X9/16"PPZ
SCREW
MJ10005
TRANSISTORS
IRF450

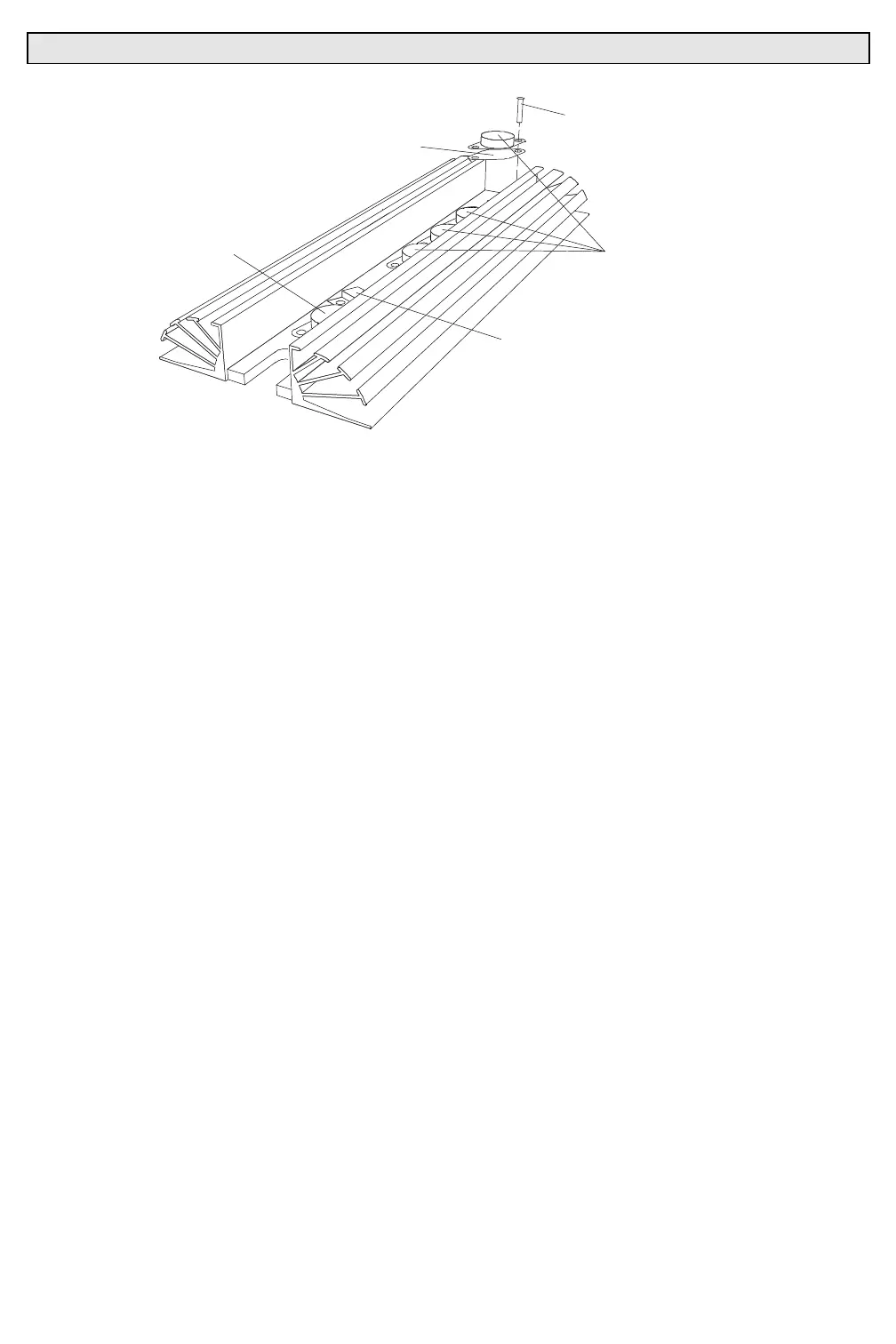

Figure 3-37. APS Plus MJ10005 and IRF450 FET Removal and Replacement
Step 5. Replace transistor or FET.
a. At rear of replacement transistor or FET, apply new TO-3
insulator.
b Replace transistor or FET by doing Steps 2 thru 4 in
reverse.
