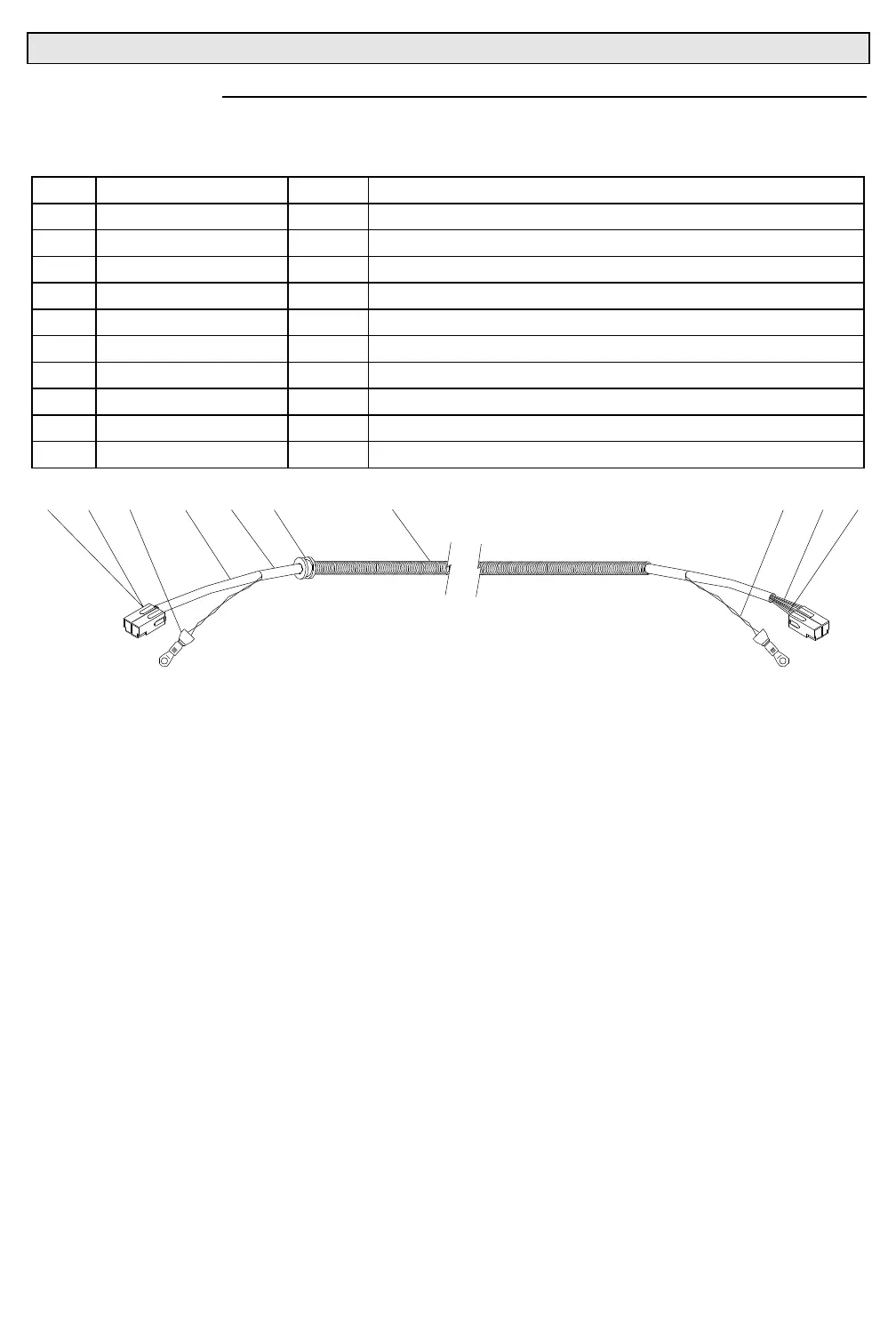

4.2.2.15 Lamp Wire Assy, A & B ( VL 4)
25.9628.0149
NO. PART NO. QTY DESCRIPTION
1 52.6362.0001 4 EA CONN HOUSING, 30 SERIES RED
2 52.8231.0003 2 EA TERM, RING #6 22-18AWG (VL 1) (LOOSE)
3 52.8247.0002 4 EA CRIMP CONTACT, S30 TIN (LOOSE)
4 55.2200.0002 7 IN SLEEVING,SIL RUB COATED FBRGLAS .162ID
5 55.6695.0003 4 IN HEAT SHRINK, ADHESIVE 1/4" BLACK
6 55.6698.0001 1 EA GROMMET, 3/16"IDx3/4"ODx3/8"THKx1/8"GRV
7 55.9628.0174 1 EA SPRING, LAMP WIRE, 24" (VL4)
8 73.7046.0002 80 IN WIRE, 24AWG STRND GREEN
9 73.7084.0000 40 IN WIRE, 24AWG BLK 5COND W/BINDER
10 73.7084.0002 40 IN WIRE, 24AWG RED 5COND W/BINDER
