VARILITE VL4 - Page 209

C
HAPTER
4. I
LLUSTRATED
P
ARTS
B
REAKDOWN
4-55
02.9628.0010 CONFIDENTIAL
7-Oct-97

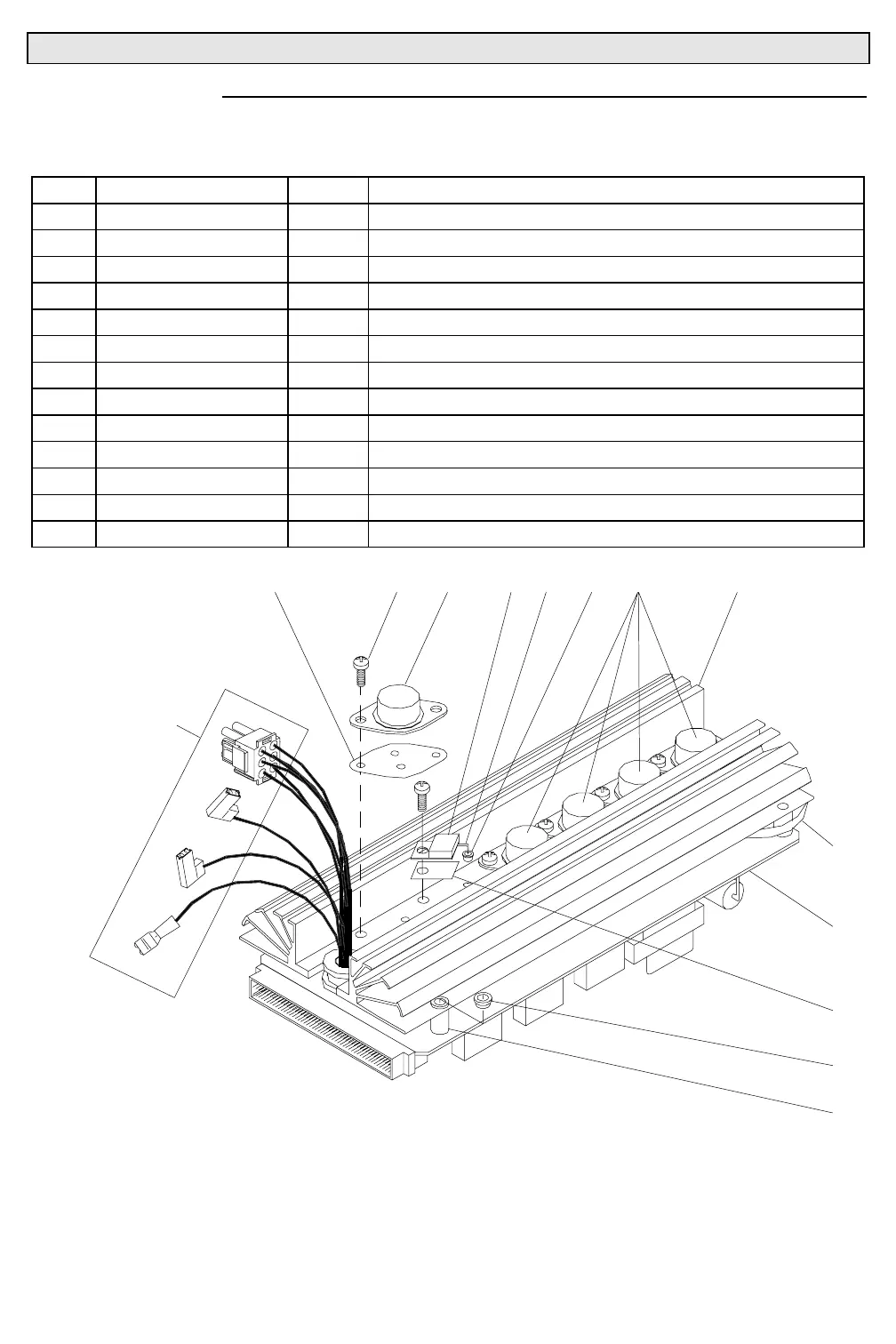

4.2.3.18 Assy, APS+ Heatsink ( VL4 )
23.9628.0031
NO. PART NO. QTY DESCRIPTION
1 10.9628.0032 1 EA HEATSINK, APS
2 21.9628.0197 1 EA ASSY, APS+ CNTRL/CURRENT SENSE
3 51.5005.0001 5 EA INSULATOR, TO-3
4 51.5006.0001 1 EA INSULATOR, TO-220
5 53.6613.0001 11 EA SCREW, 6-32X1/2"PPZ
6 55.2188.0001 1 EA CABLE TIE, BLACK, .18 X 12" (Not Shown)
7 55.6525.0001 1 EA BUSHING, NYLON SHOULDER, #6X.170DX.125L
8 55.6689.0001 4 EA INSULATOR, MOLDED NYL SCREW #6 X 1/4"L
9 55.6689.0002 4 EA SPACER, MOLDED NYL SCREW 8X5/16OD X 3/8L
10 73.7051.0003 1 IN WIRE, 18AWG BUSS
11 80.1610.0450 1 EA TRANSISTOR, IRF450 NCH 500V 13A TO3
12 80.1612.1005 4 EA TRANSISTOR, MJ10005 NPN 400V 20A TO3
13 82.4305.1550 1 EA DIODE, ULTRAFAST, MUR1550 600V 15A
3
2
1
4
5
6
7
8
9
1011 1213
PARTS LOCATED
IN ITEM 2
